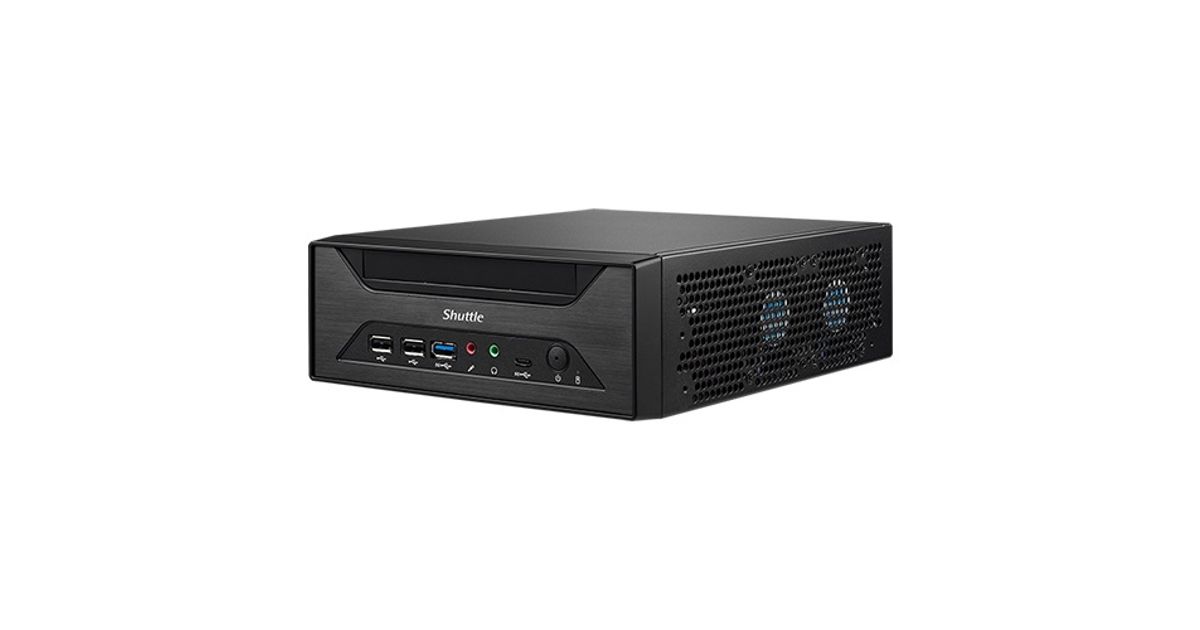

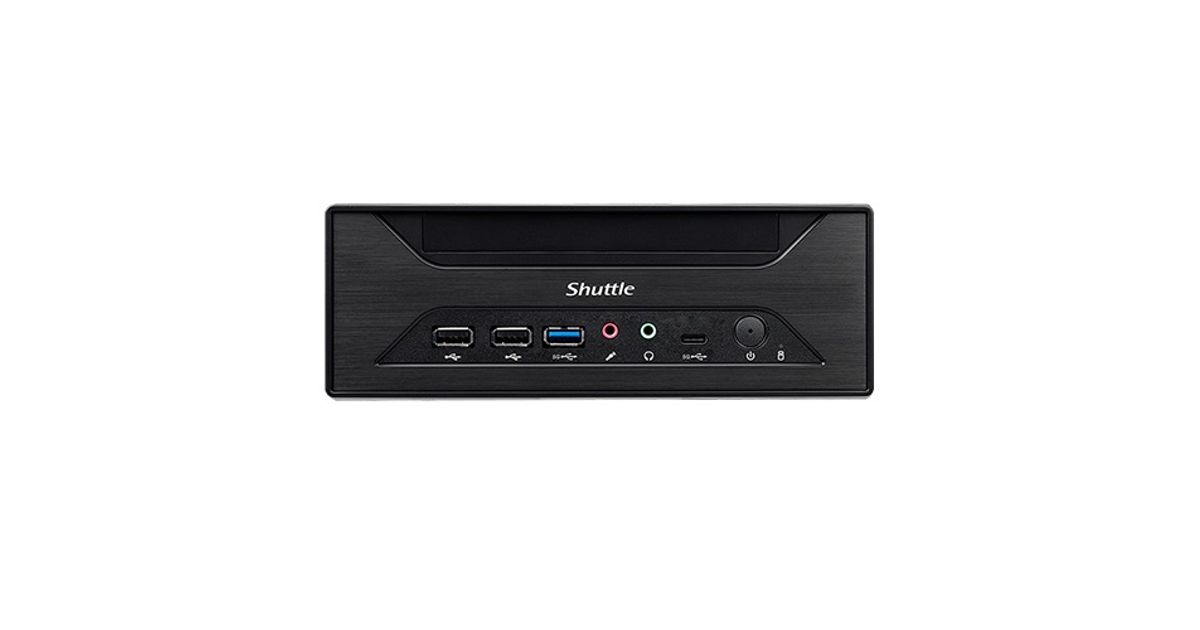

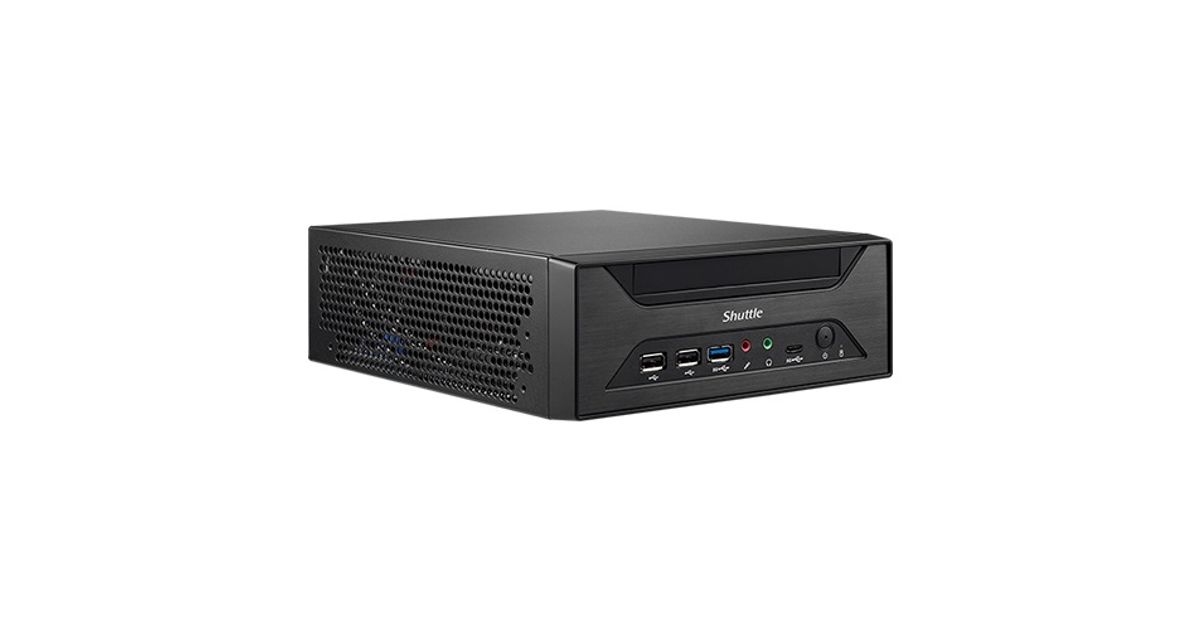

Shuttle XPС slim Barebone XH610, LGA 1700, Intel H610, 3.5 litre
Shuttle XPС slim Barebone XH610, LGA 1700, Intel H610, 3.5 litre, 3.5L sized PC, PC barebone, Intel H610, LGA 1700, DDR4-SDRAM, M.2, PCI Express, Serial ATA III
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Shuttle |
| Product code | 727579413 |
| EAN | 00887993005171 |
| Manufacturer part number | PIB-XH61001 |
| Category | Barebone PC-s |
| Features | |
|---|---|
| Built-in processor | N |
| Memory voltage | 1.2 V |
| Storage drive sizes supported | 2.5" |
| NVMe | Y |
| DisplayPort version | 1.4a |
| Motherboard chipset | Intel H610 |
| Trusted Platform Module (TPM) | Y |
| Trusted Platform Module (TPM) version | 2.0 |
| Linux operating systems supported | Y |
| Harmonized System (HS) code | 84733080 |
| Power supply type | External AC adapter |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 2133,2400,2666,2933,3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| ECC | N |
| Non-ECC | Y |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Hard drive | |
|---|---|
| Storage drive interface | M.2, PCI Express, Serial ATA III |
| Graphics | |
|---|---|
| On-board graphics adapter | Y |
| Graphics adapter family | Intel |
| Audio | |
|---|---|
| Built-in speaker(s) | N |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 4 |
| Number of processors supported | 1 |
| Quick start guide | Y |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 3 |
| HDMI ports quantity | 1 |
| VGA (D-Sub) ports quantity | 1 |
| Ethernet LAN (RJ-45) ports | 2 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| HDMI version | 2.0b |
| DisplayPorts quantity | 1 |
| Microphone in | Y |
| Headphone outputs | 1 |
| DC-in jack | Y |
| Rear panel I/O ports | |
|---|---|
| COM ports quantity | 2 |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Design | |
|---|---|
| Chassis type | 3.5L sized PC |
| Product colour | Black |
| Cooling type | Active |
| Product type | PC barebone |
| LED indicators | HDD, Power |
| Cable lock slot type | Kensington |
| Performance | |
|---|---|
| Cable lock slot | Y |
| Compatible processor series | Intel® Celeron®, Intel® Core™ i3, Intel® Core™ i5, Intel® Core™ i7, Intel® Core™ i9, Intel® Pentium® |
| Processor | |
|---|---|
| Processor socket | LGA 1700 |
| BIOS | |
|---|---|
| BIOS type | AMI |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Operating system installed | N |
| Drivers included | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | ENERGY STAR, ErP, RoHS |
| Logistics data | |
|---|---|
| Country of origin | China |
| Power | |
|---|---|
| Power supply | 120 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 6.32 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 200 mm |
| Depth | 238 mm |
| Height | 72 mm |
| Weight | 2.2 kg |
| Package weight | 3.5 kg |
Product Description
Combination of Connectivity and High Computing. Exceptional Reliability and Optimization to Your Business
Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.
Shuttle XPC slim 3-liter XH610/XH610V is equipped with Intel® H610 chipset that supports Intel® 12th LGA1700 65W processors and delivers 4K UHD video content. Up to three displays can be used simultaneously via one HDMI 2.0b, one DisplayPort, and one VGA. Feature an extra storage expansion that supports three 2.5” HDD/SSD storage drives or one 3.5” HDD (with an optional PHD4). Besides, the series includes 4 x USB 3.2 Gen1 (Include one Type-C), 4 x USB 2.0, Intel® 1G + Intel® 2.5G LAN, 2 x M.2, and 2 x RS232 to perform its rich I/O capabilities. In addition, another optional accessory PCM31 can be chosen to support a max of five RS232 ports to connect peripheral devices and deliver a robust performance that can drive highly interactive kiosks, vending machines, digital signage, and surveillance applications.
