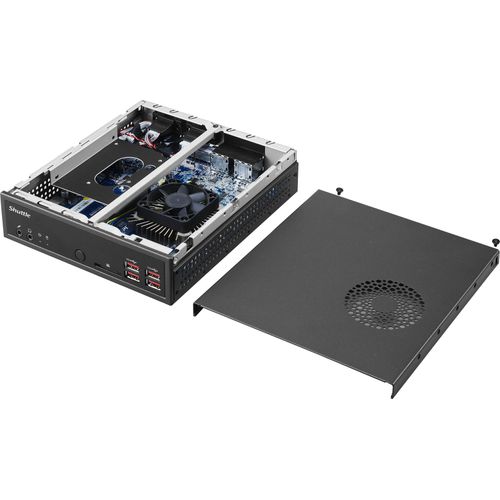

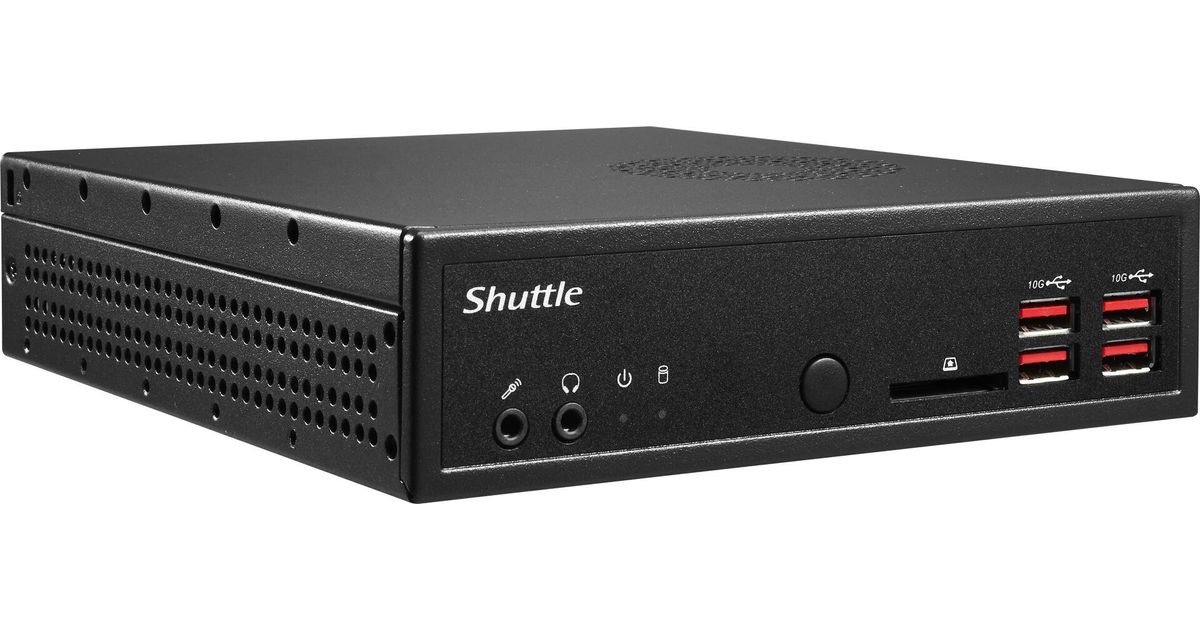

Shuttle XPС slim DH32U5 1.35L sized PC Black Intel SoC i5-1135G7
Shuttle XPС slim DH32U5, 1.35L sized PC, Mini PC barebone, Intel SoC, DDR4-SDRAM, PCI Express, Serial ATA III, 90 W
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Shuttle |
| Product code | 167547778 |
| EAN | 00887993003337 |
| Manufacturer part number | PIB-DH32U511 |
| Category | Barebone PC-s |
| Features | |
|---|---|
| Built-in processor | Y |
| Memory voltage | 1.2 V |
| Storage drive sizes supported | 2.5,M.2 |
| Number of storage drives supported | 2 |
| VESA mounting | Y |
| Motherboard chipset | Intel SoC |
| Trusted Platform Module (TPM) version | 2.0 |
| Audio output channels | 5.1 channels |
| Linux operating systems supported | Y |
| Harmonized System (HS) code | 84713000 |
| Power supply type | External AC adapter |
| Processor | |
|---|---|
| Processor manufacturer | Intel |
| Processor family | Intel® Core™ i5 |
| Processor generation | 11th gen Intel® Core™ i5 |
| Processor model | i5-1135G7 |
| Processor cores | 4 |
| Processor threads | 8 |
| Processor lithography | 10 nm |
| Processor boost frequency | 4.2 GHz |
| Processor cache | 8 MB |
| PCI Express slots version | 4.0 |
| Processor special features | |
|---|---|
| CPU configuration (max) | 1 |
| Embedded options available | N |
| Intel Virtualization Technology for Directed I/O (VT-d) | Y |
| Intel VT-x with Extended Page Tables (EPT) | Y |
| Idle States | Y |
| Intel Trusted Execution Technology | N |
| Intel Stable Image Platform Program (SIPP) | N |
| Intel Virtualization Technology (VT-x) | Y |
| Memory | |
|---|---|
| Memory slots type | SO-DIMM |
| Number of memory slots | 2 |
| Maximum internal memory | 64 GB |
| Supported memory clock speeds | 3200 MHz |
| Supported memory types | DDR4-SDRAM |
| Memory channels | Dual-channel |
| Storage controllers | |
|---|---|
| Supported storage drive types | HDD & SSD |
| Hard drive | |
|---|---|
| Storage drive interface | PCI Express, Serial ATA III |
| Storage | |
|---|---|
| Card reader integrated | Y |
| Compatible memory cards | SD, SDHC, SDXC |
| Graphics | |
|---|---|
| On-board graphics adapter | Y |
| Graphics adapter family | Intel |
| On-board graphics adapter model | Intel Iris Xe Graphics |
| Maximum resolution | 4096 x 2304 pixels |
| Audio | |
|---|---|
| Built-in speaker(s) | N |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| LAN controller | Intel® I211 |
| Ports & interfaces | |
|---|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 4 |
| HDMI ports quantity | 4 |
| Ethernet LAN (RJ-45) ports | 2 |
| HDMI version | 2.0b |
| Microphone in | Y |
| Headphone outputs | 1 |
| DC-in jack | Y |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 4 |
| Serial ports quantity | 2 |
| Expansion slots | |
|---|---|
| Number of M.2 (M) slots | 1 |
| Design | |
|---|---|
| Chassis type | 1.35L sized PC |
| Product colour | Black |
| Cooling type | Active |
| Product type | Mini PC barebone |
| LED indicators | HDD, Power |
| Housing material | Metal |
| Cable lock slot type | Kensington |
| Performance | |
|---|---|
| Cable lock slot | Y |
| Other features | |
|---|---|
| Number of processors supported | 1 |
| BIOS | |
|---|---|
| BIOS type | UEFI AMI |
| Software | |
|---|---|
| Windows operating systems supported | Windows 10, Windows 11 |
| Operating system installed | N |
| Drivers included | Y |
| Logistics data | |
|---|---|
| Country of origin | China |
| Power | |
|---|---|
| Power supply | 90 W |
| Number of power supply units | 1 |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| AC adapter output voltage | 19 V |
| AC adapter output current | 4.74 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 190 mm |
| Depth | 165 mm |
| Height | 43 mm |
| Weight | 1.3 kg |
| Package weight | 2.1 kg |
| Packaging content | |
|---|---|
| Power cord included | Y |
| AC adapter included | Y |
Product Description
Powerful 1.3-litre PC with Intel "Tiger Lake-U" processor supports four UHD displays
This space-saving Slim PC integrates an energy-efficient Gen 11 Intel ULV processor "Tiger Lake-U" and supports no less than four Ultra HD displays at a 60 Hz frame rate via HDMI 2.0b. Its slim metal chassis with a VESA mount included versatile connectivity and reliable operation in ambient temperatures of up to 50 °C degrees, make it ideal for vertical applications such as video walls, digital signage, kiosks, surveillance, control room, gambling machines, healthcare and industry.
This space-saving Slim PC integrates an energy-efficient Gen 11 Intel ULV processor "Tiger Lake-U" and supports no less than four Ultra HD displays at a 60 Hz frame rate via HDMI 2.0b. Its slim metal chassis with a VESA mount included versatile connectivity and reliable operation in ambient temperatures of up to 50 °C degrees, make it ideal for vertical applications such as video walls, digital signage, kiosks, surveillance, control room, gambling machines, healthcare and industry.
