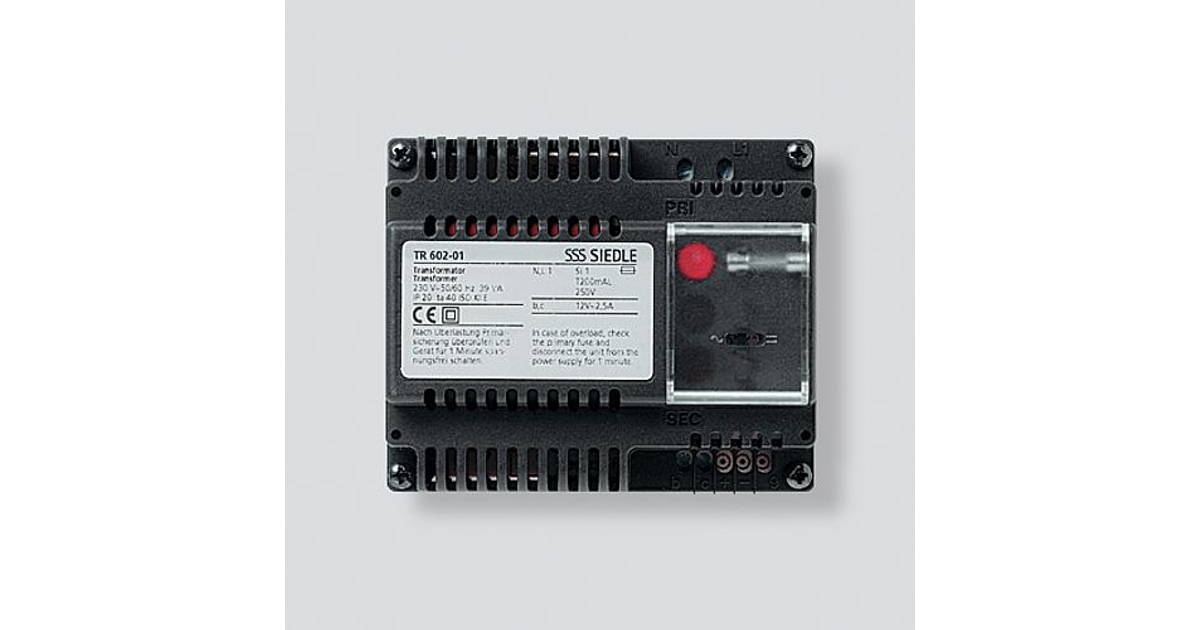

For illustrative purpose only
Siedle TR 602-01 Power supply
Siedle TR 602-01, Power supply, Black, Siedle, 0 - 40 °C, CE, 107 mm
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Siedle |
| Product code | 165785676 |
| EAN | 04015739336005 |
| Manufacturer part number | 200033600-00 |
| Category | Other electrical supplies |
Product Description
Transformer in switch panel housing for supplying system and additional components.
Technical data
Operating voltage:230 V AC, +/-10 %, 50/60 Hz
Operating current:170 mA
Output voltage:12 V AC
Output current:max. 2.5 A
Fusing:primary Si1 T 200 mA L, secondary side with thermal fuse
Protection system:IP 20
Ambient temperature:0 °C to +40 °C
Horizontal pitch (HP):6
Dimensions (mm) W x H x D:107 x 89 x 60
Technical data
Operating voltage:230 V AC, +/-10 %, 50/60 Hz
Operating current:170 mA
Output voltage:12 V AC
Output current:max. 2.5 A
Fusing:primary Si1 T 200 mA L, secondary side with thermal fuse
Protection system:IP 20
Ambient temperature:0 °C to +40 °C
Horizontal pitch (HP):6
Dimensions (mm) W x H x D:107 x 89 x 60
