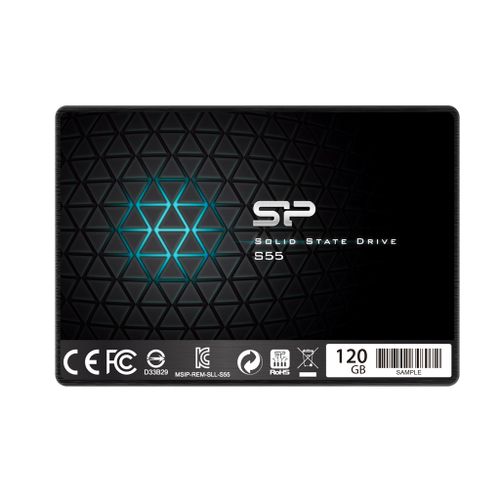

Silicon Power Slim S55 2.5" 120 GB Serial ATA III TLC
Silicon Power Slim S55, 120 GB, 2.5", 6 Gbit/s
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Silicon Power |
| Product code | 03150429 |
| EAN | 08865760089434 |
| Manufacturer part number | DGSIPWB120S5501 |
| Category | SSD Sata 2,5'' |
| Features | |
|---|---|
| SSD form factor | 2.5" |
| Memory type | TLC |
| NAND flash type | TLC (Triple Level Cell) |
| Data transfer rate | 6 Gbit/s |
| Sequential read speed (ATTO) | 550 MB/s |
| Sequential write speed (ATTO) | 420 MB/s |
| Sequential read speed (CDM) | 460 MB/s |
| Sequential write speed (CDM) | 370 MB/s |
| S.M.A.R.T. support | Y |
| TRIM support | Y |
| Native Command Queuing (NCQ) | Y |
| Protection features | Shock resistant, Vibration proof |
| Harmonized System (HS) code | 84717070 |
| Certification | CE, FCC |
| Storage | |
|---|---|
| SSD capacity | 120 GB |
| Ports & interfaces | |
|---|---|
| Interface | Serial ATA III |
| Design | |
|---|---|
| Component for | PC/notebook |
| Product colour | Black |
| Storage controllers | |
|---|---|
| RAID support | Y |
| Memory | |
|---|---|
| ECC | Y |
| Performance | |
|---|---|
| Mean time between failures (MTBF) | 1500000 h |
| Power | |
|---|---|
| Operating voltage | 5 V |
| Operational conditions | |
|---|---|
| Operating vibration | 20 G |
| Operating shock | 1500 G |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 100 mm |
| Depth | 69.9 mm |
| Height | 7 mm |
| Weight | 63 g |
Product Description
Affordable Upgrade for Everyone
A high-quality product for the budget-minded among us, the S55 is positioned as one of the most cost-effective SSD models. With its advanced SATA III 6Gb/s interface and an affordable price, you can now easily upgrade your old computer without spending a fortune.
Time is Money! Don't Waste It
Still wasting precious time while booting your computer or loading applications? Then it's time to get rid of your old hard drive and switch to an SSD. Powered by SATA III 6GB/s interface, the S55 is able to boot your computer or launch applications within seconds.
An Upgrade as Easy as 1-2-3
Upgrading your computer is a piece of cake – you don’t need to be a techie to do it. Just follow these three easy steps:
Step 1. Backup your data to another storage device
Step 2. Remove the old HDD from your computer
Step 3. Insert the S55 in your computer.
Durability and Performance
Equipped with an original controller and selected NAND flash, the S55 can not only guarantee stability and durability. It also delivers outstanding performance which enables 10-second quick boot-ups, shorter application load times and faster data transmission speed. Whether you are web surfing, enjoying a good movie, or have to handle paperwork, the S55 will bring you a smooth, lag-free experience.
We Care about Your Data: Bad Block Management for Higher Reliability
Even new disks can contain one or more bad blocks which may cause irreparable damage to your system. But have no fear! To prevent flash memory corruption, the S55 is built with bad block management technology. Bad blocks are continually monitored and replaced to keep your system in good condition and to improve reliability and endurance of the SSD. Because we do care about your data.
Light and S.M.A.R.T.
The S55 is one of the lightest and thinnest SSDs of its kind yet it is shock- and vibration-proof, because it contains no moving parts. Equipped with a S.M.A.R.T. monitoring system and ECC (error correction code) technology, it also promises higher data transmission safety.
SLC Cache Technology
The S55 applies ”SLC Cache technology” with a new caching architecture that combines both SLC and TLC flash blocks. This technology enables all data to be written in the SLC section before being sequentially copied to the TLC block, and as a consequence allows for higher peak writing performance. The S55 also uses “DRAM buffer cache” to improve overall performance and to reduce write amplification on the TLC portion. This leads to enhanced endurance and a longer lifespan of the SSD.
Internal Auto-Copy Technology
The S55’s auto-copy technology allows automatic copy operations from the SLC cache to the TLC blocks inside the NAND without using the controller or DDR. This supports higher efficiency by reducing the controller’s and DRAM’s workload.
Free-Download of SSD Health Monitor Tool - SP Toolbox Software
Easily monitor your new SSD’s health with our free-download software – SP Toolbox. Run performance tests on the S55, get an overall function evaluation, or check detailed information about your device, including used space, device temperature, total bytes written, and many more.
