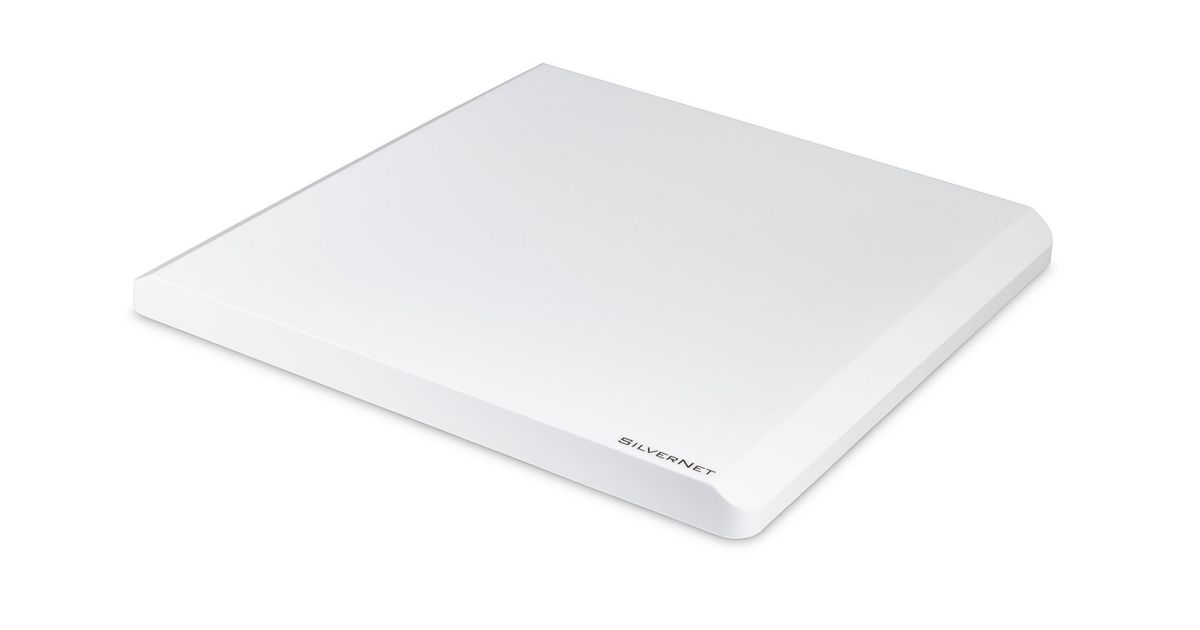

SilverNet MAX 1000-PCP Network bridge 1000 Mbit/s White
SilverNet MAX 1000-PCP, Network bridge, 1000 Mbit/s, Wi-Fi, Ethernet LAN, Wall mountable, White
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | SilverNet |
| Product code | 228939269 |
| EAN | 05060693980190 |
| Manufacturer part number | SIL MAX 1000-PCP |
| Features | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Antenna gain level (max) | 18 dBi |
| Modulation | 16-QAM, 64-QAM, 256-QAM, BPSK, QPSK |
| Full duplex | Y |
| Automatic Transmit Power Control (ATPC) | Y |
| Wall mountable | Y |
| Surge protection | Y |
| Wi-Fi Multimedia (WMM)/(WME) | Y |
| Power plug type | Type G |
| Certification | CE, FCC |
| Grounding | Y |
| Performance | |
|---|---|
| Maximum transfer distance | 20000 m |
| Management protocols | SNMP V2 |
| Remote control function | Y |
| Network Time Protocol (NTP) client | Y |
| Mean time between failures (MTBF) | 60000 h |
| Minimum system requirements | Internet Explorer, Google Chrome, Mozilla Firefox |
| Power source type | DC, PoE |
| Other features | |
|---|---|
| Supported data transfer rates | 240, 500, 1000Mbps |
| Antennas quantity | 1 |
| Indoor range | 20000m |
| Outdoor range | 20000m |
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11i, IEEE 802.11n, IEEE 802.1Q, IEEE 802.1x, IEEE 802.3af |
| Authentication method | WPA2 AES |
| Compatible operating systems | Microsoft Windows, Mac OS, Linux Distributions |
| Design | |
|---|---|
| Antenna design | Internal |
| Receiver sensitivity | -82dBm@54Mbps, -74dBm@300Mbps, -68dBm@1.3Gbps |
| Product type | Network bridge |
| Product colour | White |
| LED indicators | LAN, Signal strength |
| Reset button | Y |
| International Protection (IP) code | IP67 |
| Antenna | |
|---|---|
| Pan/tilt-axis range | 180° |
| Network | |
|---|---|
| Wi-Fi | Y |
| Wi-Fi band | Single-band (5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Ethernet LAN | Y |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Auto MDI/MDI-X | Y |
| Security algorithms | 256-bit AES, 802.1x RADIUS, SNMPv2, SSH |
| DHCP client | Y |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (max) | 1300 Mbit/s |
| Transmission gain | 0 - 23 dB |
| Signal strength | -40 dBm |
| Output power (dBm) | 26 |
| Static IP | Y |
| Dynamic IP | Y |
| Mouse | |
|---|---|
| Frequency band | 5.1 - 5.8 GHz |
| GPS Performance | |
|---|---|
| Channels quantity | 25 channels |
| Keyboard | |
|---|---|
| Connectivity technology | Wired & Wireless |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Security | |
|---|---|
| MAC address filtering | Y |
| Management features | |
|---|---|
| Web-based management | Y |
| Quality of Service (QoS) support | Y |
| Logistics data | |
|---|---|
| Country of origin | United Kingdom |
| UK Trade Tariff code | 85176200 |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| Power supply | 15.4 W |
| DC input voltage | 24-48/48-56 V |
| Power consumption (typical) | 6 W |
| Power consumption (max) | 16 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) voltage | 48 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -20 - 70 °C |
| Operating temperature (T-T) | -4 - 158 °F |
| Operating relative humidity (H-H) | 0 - 95% |
| Storage temperature (T-T) | -40 - 90 °C |
| Storage relative humidity (H-H) | 0 - 95% |
| Weight & dimensions | |
|---|---|
| Antenna diameter | 51 cm |
| Width | 370 mm |
| Depth | 370 mm |
| Height | 90 mm |
| Weight | 2.5 kg |
| Package weight | 9.15 kg |
| Packaging content | |
|---|---|
| PoE+ Injector(s) | Y |
| Mounting bracket(s) included | Y |
| Power supply | |
|---|---|
| Power supply included | Y |
| Packaging data | |
|---|---|
| Antenna included | Y |
| Quick installation guide | Y |
| Package width | 450 mm |
| Package depth | 290 mm |
| Package height | 480 mm |
| Package type | Box |
| Quantity per pack | 2 pc(s) |
Product Description
The SIL MAX range is a family of Outdoor Wireless Bridge Links which are designed to be highly secure, ultra long range transmission systems (up to 20KM), attributed to a fully integrated, high power, dual polarised 25dBi antenna.
It includes enhanced features such as: MIMO Spatial Multiplexing, Ultrafast Radio Speed, highly secure 256bit AES Traffic Encryption and much more. Available options 100Mbps, 240Mbps, 500Mbps and 1Gbps Full Duplex.
This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.
It includes enhanced features such as: MIMO Spatial Multiplexing, Ultrafast Radio Speed, highly secure 256bit AES Traffic Encryption and much more. Available options 100Mbps, 240Mbps, 500Mbps and 1Gbps Full Duplex.
This radio is part of the SilverNet PRO Range. The PRO Range is a family of class leading, wireless outdoor bridge solutions that have been optimised for long transmission distances and designed to be extremely compact and rugged.
The PRO Range will save money, while servicing the need to construct a solid and reliable wireless system replacing the requirement for expensive lease lines.
Couple that with the FREE SilverView network monitoring software and you have an outstanding feature packed solution.
