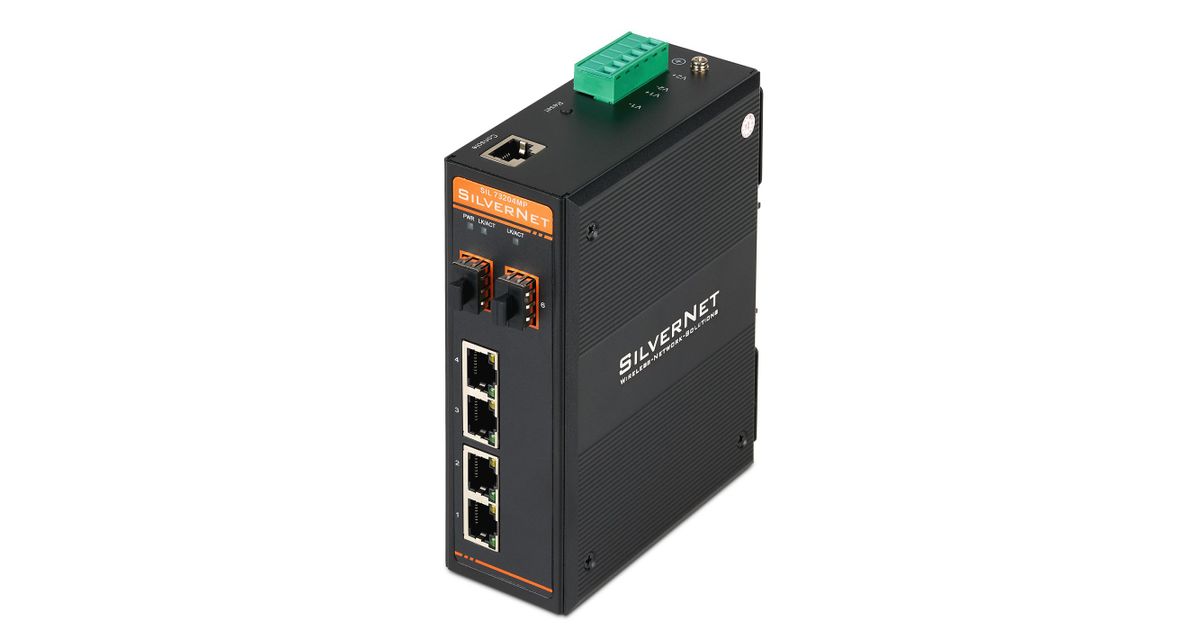

SilverNet SIL 73204MP network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE) Black
SilverNet SIL 73204MP, Managed, L2, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE), Wall mountable
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | SilverNet |
| Product code | 228611288 |
| EAN | 05060693981616 |
| Manufacturer part number | SIL 73204MP |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Traffic classification | Y |
| Traffic shaping | Y |
| Configuring Location Settings (CLI) | Y |
| System event log | Y |
| User operation log | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 4 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Installed SFP modules quantity | 2 |
| Gigabit Ethernet (copper) ports quantity | 4 |
| Fiber ports quantity | 2 |
| Console port | RJ-45 |
| Optical fiber | |
|---|---|
| Fiber optic connector | SFP |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.1x, IEEE 802.3, IEEE 802.3ab, IEEE 802.3ad, IEEE 802.3af, IEEE 802.3at, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z |
| Number of VLANs | 4095 |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-TX |
| Cable types supported | Cat5e, Cat6 |
| Port mirroring | Y |
| IP routing | Y |
| Policy-based routing | Y |
| Half duplex | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Auto MDI/MDI-X | Y |
| Spanning tree protocol | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto-negotiation | Y |
| VLAN support | Y |
| Virtual LAN features | IP subnet–based VLAN, Interface-based VLAN, Port-based VLAN, Tagged VLAN, VLAN Identifier ( VLAN ID) |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Wall mountable | Y |
| Power protection features | Overload, Reverse polarity |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 20 Gbit/s |
| Forwarding rate | 8.928 Mpps |
| Store-and-forward | Y |
| Latency (10-100 Mbps) | 7 µs |
| Latency (1 Gbps) | 7 µs |
| Static route | Y |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| Packet buffer memory | 4 MB |
| Security | |
|---|---|
| DHCP features | DHCP snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| MAC address filtering | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| Password protection | Y |
| Temperature sensor | Y |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Design | |
|---|---|
| Rack mounting | N |
| Stackable | Y |
| Product colour | Black |
| Housing material | Aluminium |
| Reset button | Y |
| LED indicators | LAN, PoE, Power |
| International Protection (IP) code | IP40 |
| DIN rail mounting | Y |
| Performance | |
|---|---|
| Commodity Classification Automated Tracking System (CCATS) | 85176200 |
| Minimum system requirements | Internet Browser |
| Power supply | |
|---|---|
| Power supply included | N |
| Power | |
|---|---|
| Redundant power supply (RPS) support | Y |
| Number of power supply units | 1 |
| DC input voltage | 9 - 56 V |
| Power consumption (typical) | 7 W |
| Power consumption (max) | 15 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) type supported | Active PoE, PoE+ |
| Power over Ethernet (PoE) ports quantity | 4 |
| Power over Ethernet plus (PoE+) ports quantity | 4 |
| Power over Ethernet (PoE) voltage | 48 V |
| Power over Ethernet (PoE) power per port | 30 W |
| Total Power over Ethernet (PoE) budget | 120 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 90 mm |
| Depth | 120 mm |
| Height | 40 mm |
| Weight | 600 g |
| Packaging data | |
|---|---|
| Package type | Box |
| Logistics data | |
|---|---|
| UK Trade Tariff code | 85176200 |
Product Description
Having a reliable network switch on any network is a key component to the system stability and reliability.
The SIL 73204MP is a reliable, high performance, high specification and cost effective managed industrial Gigabit PoE+ Managed Switch with four 10/100/1000Mbps RJ45 ports with PoE+ (30w) capabilities and two 100/1000Mbps SFP (fiber) uplink ports. It can be installed by DIN-rail or wall-mounted, allowing users greater flexibility.
The SIL 73204MP Industrial Gigabit PoE+ Managed Switch is ideal for extending Ethernet over distance via Fibre daisy-chain, whilst eliminating the need for individual power supplies for IP video cameras and wireless access points. The switch has an extended temperature range to enable it to cope with unconditioned outdoor cabinets and industrial environments.
Fully compliant with IEEE802.3af/at standard, providing Power-over- Ethernet over twisted pair cables and comes with Dual Gigabit SFP Slot built in.
The SIL 73204MP is a reliable, high performance, high specification and cost effective managed industrial Gigabit PoE+ Managed Switch with four 10/100/1000Mbps RJ45 ports with PoE+ (30w) capabilities and two 100/1000Mbps SFP (fiber) uplink ports. It can be installed by DIN-rail or wall-mounted, allowing users greater flexibility.
The SIL 73204MP Industrial Gigabit PoE+ Managed Switch is ideal for extending Ethernet over distance via Fibre daisy-chain, whilst eliminating the need for individual power supplies for IP video cameras and wireless access points. The switch has an extended temperature range to enable it to cope with unconditioned outdoor cabinets and industrial environments.
Fully compliant with IEEE802.3af/at standard, providing Power-over- Ethernet over twisted pair cables and comes with Dual Gigabit SFP Slot built in.
