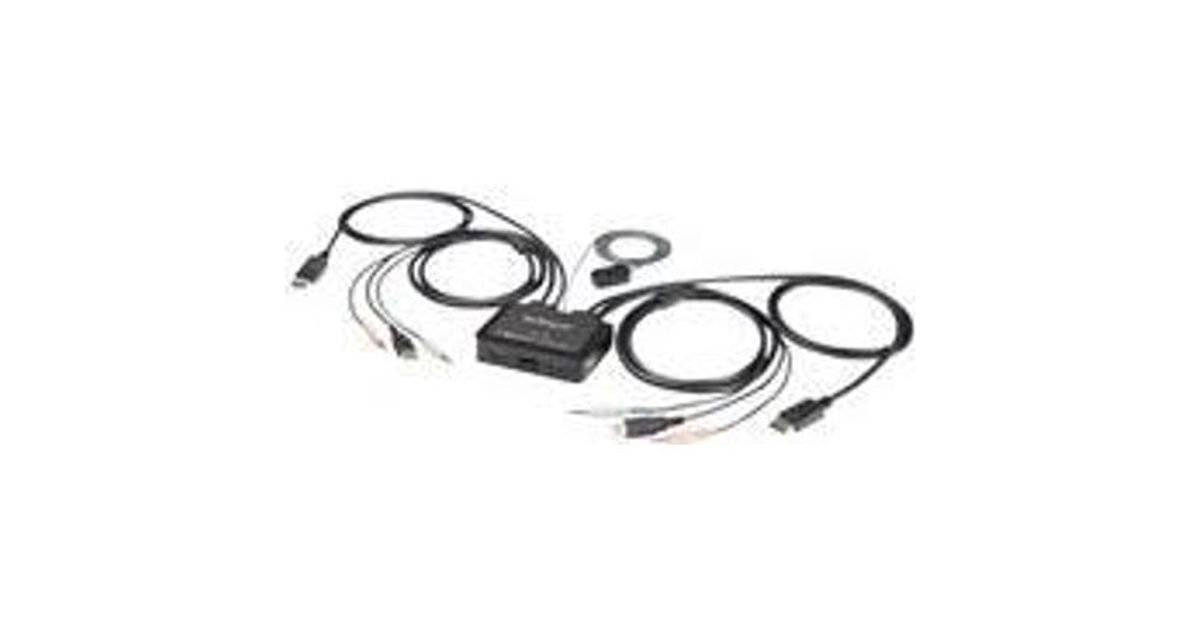

StarTech.com 2 Port DisplayPort KVM Switch - 4K 60Hz - Compact Dual Port UHD DP 1.2 USB Desktop KVM Switch with 4ft Cables & Audio - Bus Powered & Remote Switching - MacBook ThinkPad
StarTech.com 2 Port DisplayPort KVM Switch - 4K 60Hz - Compact Dual Port UHD DP 1.2 USB Desktop KVM Switch with 4ft Cables & Audio - Bus Powered & Remote Switching - MacBook ThinkPad, 3840 x 2160 pixels, 4K Ultra HD, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 16746816 |
| EAN | 00065030882156 |
| Manufacturer part number | SV211DPUA4K |
| Category | KVM switches |
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 1 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | DisplayPort |
| Console ports | USB A |
| DisplayPorts quantity | 1 |
| Console USB ports quantity | 2 |
| Audio connections | Y |
| Console port | DisplayPort |
| Features | |
|---|---|
| DisplayPort version | 1.2 |
| USB connector type | USB Type-A |
| Daisy chain | N |
| Cable length | 1.2 m |
| Certification | CE, FCC, REACH |
| Display | |
|---|---|
| HD type | 4K Ultra HD |
| On Screen Display (OSD) | N |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Performance | |
|---|---|
| Video bandwidth | 60 Hz |
| Scan interval | 10,20,30,40,50,60 s |
| Audio channels | 2.0 |
| Mean time between failures (MTBF) | 1012884 h |
| Design | |
|---|---|
| Rack mounting | N |
| Product colour | Black |
| Housing material | Plastic |
| LED indicators | Y |
| Built-in display | N |
| Keyboard | |
|---|---|
| Hot keys | Y |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 82.2 mm |
| Depth | 97 mm |
| Height | 9 mm |
| Weight | 350 g |
| Packaging data | |
|---|---|
| Package width | 60 mm |
| Package depth | 210 mm |
| Package height | 160 mm |
| Quick installation guide | Y |
| Logistics data | |
|---|---|
| Master (outer) case width | 44 cm |
| Master (outer) case length | 34.5 cm |
| Master (outer) case height | 34.5 cm |
| Products per master (outer) case | 20 pc(s) |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Other features | |
|---|---|
| IP control | N |
Product Description
KVM Switch with Audio | 3.5mm Audio Input & Output | DisplayPort 1.2 | USB-Powered
The SV211DPUA4K 2-Port 4K60Hz DisplayPort Cable KVM Switch with Audio and Remote Switching Control gives you control of two DisplayPort, USB equipped computers with a single monitor, keyboard, mouse and audio peripheral set.
4K60 Picture & Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for separate 3.5 mm stereo audio, the KVM switch delivers full audio compatibility across connected computers.
OS Independent
While supporting most PC operating systems, this DP KVM switch is OS independent which means it works with Mac computers (an adapter may be required) and any other laptops, notebooks, and tablets.
Simple to Operate
The switch features a remote push-button on a 1.5 meter (4ft) integrated cable that can be placed in an easily accessible location, as well as keyboard hot-keys, and PC or Mac compatible software for switching between systems.
StarTech.com KVM Switches & Consoles
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.
The SV211DPUA4K is backed by a 2-year StarTech.com warranty and free lifetime multilingual technical support.
The StarTech.com Advantage
- SPACE-SAVING DESIGN: Compact 2 Port DisplayPort KVM Switch w/ built-in cables & remote switching provides USB powered control of two computers from one keyboard, monitor, and mouse
- 4K VIDEO QUALITY: DP UHD KVM switch supports resolutions up to 4K at 60Hz on a single DisplayPort monitor for maximized viewing space
- TECH SPECS: Dual Port KVM
The SV211DPUA4K 2-Port 4K60Hz DisplayPort Cable KVM Switch with Audio and Remote Switching Control gives you control of two DisplayPort, USB equipped computers with a single monitor, keyboard, mouse and audio peripheral set.
4K60 Picture & Full Audio Support
The DisplayPort KVM switch supports resolutions up to 4K at 60Hz and can drive one large DP display with ease, maximizing viewing space. With support for separate 3.5 mm stereo audio, the KVM switch delivers full audio compatibility across connected computers.
OS Independent
While supporting most PC operating systems, this DP KVM switch is OS independent which means it works with Mac computers (an adapter may be required) and any other laptops, notebooks, and tablets.
Simple to Operate
The switch features a remote push-button on a 1.5 meter (4ft) integrated cable that can be placed in an easily accessible location, as well as keyboard hot-keys, and PC or Mac compatible software for switching between systems.
StarTech.com KVM Switches & Consoles
StarTech.com offers a wide selection of high-quality KVM switches and KVM-related products to help you access your systems more efficiently without the expense and clutter of extra keyboards, mice and monitors.
The SV211DPUA4K is backed by a 2-year StarTech.com warranty and free lifetime multilingual technical support.
The StarTech.com Advantage
- SPACE-SAVING DESIGN: Compact 2 Port DisplayPort KVM Switch w/ built-in cables & remote switching provides USB powered control of two computers from one keyboard, monitor, and mouse
- 4K VIDEO QUALITY: DP UHD KVM switch supports resolutions up to 4K at 60Hz on a single DisplayPort monitor for maximized viewing space
- TECH SPECS: Dual Port KVM
