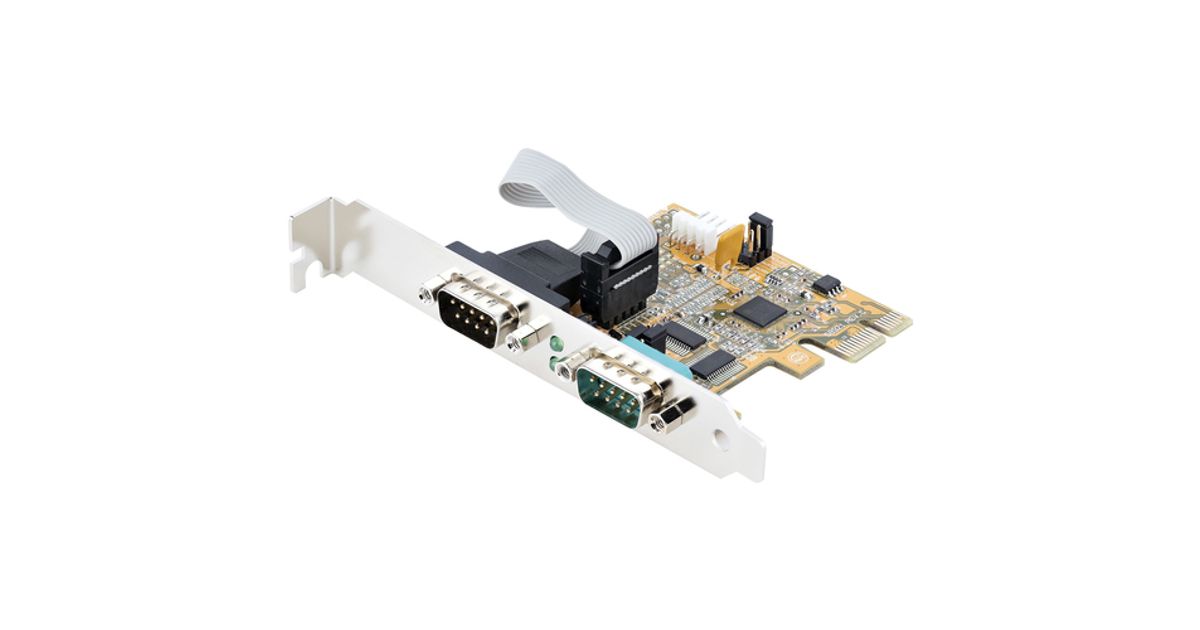

StarTech.com 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux
StarTech.com 2-Port PCI Express Serial Card, Dual Port PCIe to RS232 (DB9) Serial Card, 16C1050 UART, Standard or Low Profile Brackets, COM Retention, For Windows & Linux, PCIe, Serial, Full-height / Low-profile, PCI 2.0, RS-232, Yellow
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 577195867 |
| EAN | 00065030894760 |
| Manufacturer part number | 21050-PC-SERIAL-CARD |
| Category | Other controllers |
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | Serial |
| Expansion card form factor | Full-height / Low-profile |
| Expansion card standard | PCI 2.0 |
| Serial interface type | RS-232 |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 2 |
| Performance | |
|---|---|
| Internal | Y |
| Chipset | ASIX - AX99100, ASIX - ZT3243LFEY |
| Design | |
|---|---|
| Product colour | Yellow |
| LED indicators | Activity |
| Features | |
|---|---|
| Baud rate | 921.6 Kbit/s |
| FIFO (First In, First Out) | 256 B |
| Data bits | 5,6,7,8,9 |
| Flow control support | Y |
| Parity bit | Even, Mark, N, Odd, Space |
| Linux operating systems supported | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2016,Windows Server 2019 |
| Sustainability | |
|---|---|
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Width | 65 mm |
| Depth | 67 mm |
| Height | 18 mm |
| Package weight | 200 g |
| Packaging data | |
|---|---|
| Mounting brackets included | Y |
| Quick installation guide | Y |
| Package width | 207 mm |
| Package depth | 144 mm |
| Package height | 38 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 50 pc(s) |
| Master (outer) case width | 530 mm |
| Master (outer) case length | 440 mm |
| Master (outer) case height | 340 mm |
Product Description
Baud Rate 921.6 Kbps per Port | 256-byte FIFO | PCIe 2.0 x1Add serial communication support to your desktop computer or Small Form Factor (SFF) system, using this two-port serial card. RS-232 (DB9) support enables control and communication with a serial peripheral device.Legacy ConnectivityInstall this card to enable the continued use of legacy serial devices, preventing down time and avoiding costly upgrades. The 2-port PCIe serial card is ideal for system upgrades in a wide range of applications for logistics, manufacturing, and freight sectors, and the IT industry, such as POS equipment, security systems, A/V installations, and more.Connect with EaseThe RS-232 card features dual ports with 16C1050 UART support, 256-byte FIFO (transmit/receive), bi-directional speeds up to 921.6 Kbps per port, low-profile brackets are included for SFF systems, and serial port LED status lights. In addition, it supports Windows and Linux systems for maximum compatibility.21050-PC-SERIAL-CARD is backed for 2-years by StarTech.com, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
