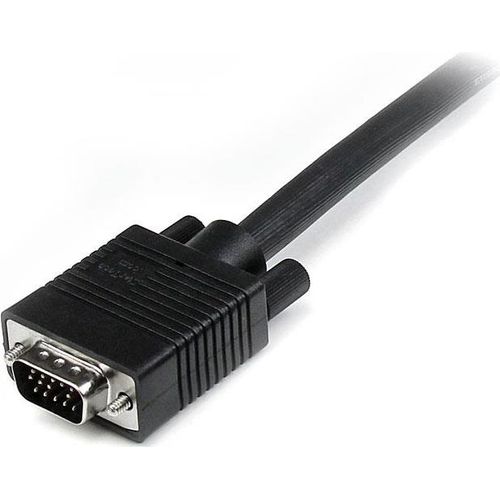

StarTech.com 3m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M
StarTech.com 3m Coax High Resolution Monitor VGA Video Cable - HD15 to HD15 M/M, 3 m, VGA (D-Sub), VGA (D-Sub), Male, Male, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 161929267 |
| EAN | 00065030847711 |
| Manufacturer part number | MXTMMHQ3M |
| Category | VGA cables and adapters |
| Features | |
|---|---|
| Cable length | 3 m |
| Connector 1 | VGA (D-Sub) |
| Connector 2 | VGA (D-Sub) |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| AWG wire size | 28 |
| Connector contacts plating | Nickel |
| Cable jacket material | Polyvinyl chloride (PVC) |
| Ferrite bead | Y |
| Plug and Play | Y |
| Certification | RoHS |
| Design | |
|---|---|
| Product colour | Black |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 140 mm |
| Package depth | 395 mm |
| Package height | 33 mm |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 60 °C |
| Storage temperature (T-T) | -20 - 80 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 400 g |
| Package weight | 384 g |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
The MXTMMHQ3M High Resolution VGA Cable (3-meter) is designed to provide the highest video quality possible through VGA, ideally suited for high resolution applications of 1920x1200 and above.
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
The StarTech.com Advantage
- Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications
- Ferrite cores help eliminate EMI interference
- Backed by StarTech.com Lifetime warranty
This durably constructed coaxial VGA video cable (HD15 to HD15) eliminates the picture "ghosting" and fuzzy images that are inherent to non-coaxial VGA cables, while delivering superior EMI interference protection by using ferrite cores near the connector ends.
The StarTech.com Advantage
- Supports high resolution VGA video (1920x1200 or above), suitable for a wide range of applications
- Ferrite cores help eliminate EMI interference
- Backed by StarTech.com Lifetime warranty
