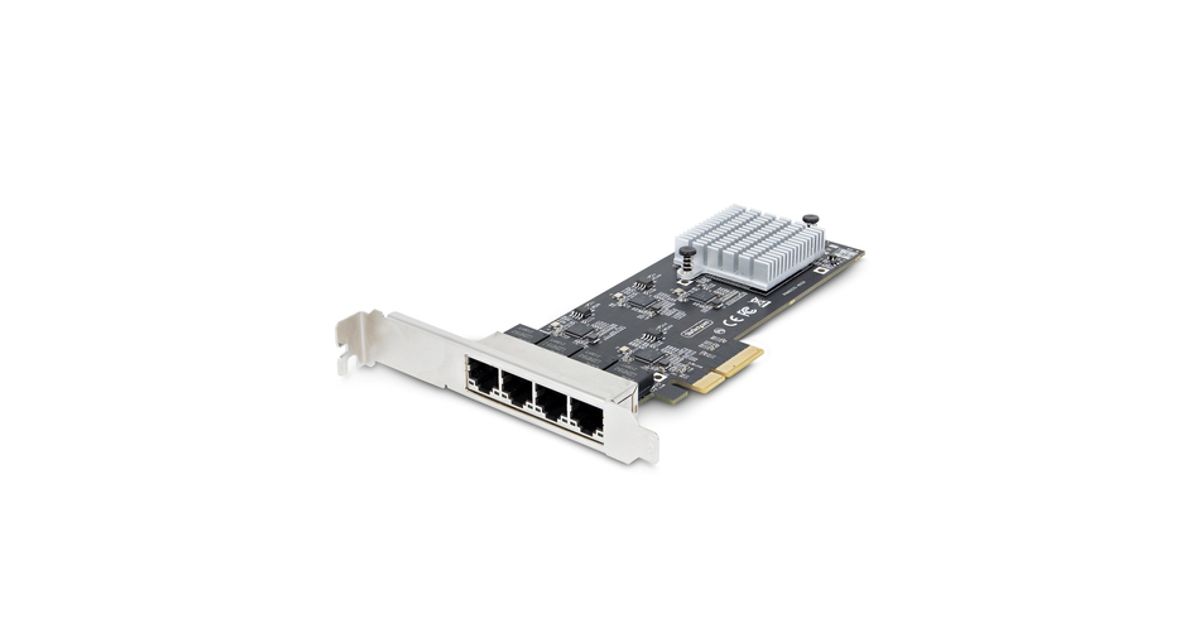

StarTech.com 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Quad-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface
StarTech.com 4-Port 2.5Gbps NBASE-T PCIe Network Card, Intel I225-V, Quad-Port Computer Network Card, Multi-Gigabit NIC, PCI Express Server LAN Card, Desktop Ethernet Interface, Internal, Wired, PCI Express, Ethernet, 2500 Mbit/s, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 169572128 |
| EAN | 00065030898157 |
| Manufacturer part number | PR42GI-NETWORK-CARD |
| Category | USB adapters |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| PCI version | 2.0 |
| Features | |
|---|---|
| Maximum data transfer rate | 2500 Mbit/s |
| Full duplex | Y |
| Linux operating systems supported | Y |
| Other features | |
|---|---|
| Networking standards | IEEE 1588, IEEE 802.1Q, IEEE 802.1as, IEEE 802.1p, IEEE 802.1x, IEEE 802.3ab, IEEE 802.3az, IEEE 802.3bz, IEEE 802.3i, IEEE 802.3u |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | 2.5 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000,2000,2500 Mbit/s |
| Copper ethernet cabling technology | 10BASE-TX, 100BASE-TX, 1000BASE-T, 2500BASE-T |
| Wake-on-LAN ready | Y |
| Auto MDIX IEEE | Y |
| VLAN tagging | Y |
| Data transmission | |
|---|---|
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Performance | |
|---|---|
| Internal | Y |
| Chipset | Intel I225-V |
| Design | |
|---|---|
| Component for | PC/Server |
| Product colour | Black |
| LED indicators | Activity, Link |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2019, Windows Server 2022 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 180 mm |
| Depth | 120 mm |
| Height | 22 mm |
| Weight | 100 g |
| Package weight | 130 g |
| Packaging data | |
|---|---|
| Low-profile bracket | Y |
| Package width | 170 mm |
| Package depth | 142 mm |
| Package height | 30 mm |
| Quick installation guide | Y |
| Logistics data | |
|---|---|
| Master (outer) case width | 605 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 385 mm |
| Products per master (outer) case | 80 pc(s) |
Product Description
Quad-port PCIe network card with Intel® I225-V chip features multi-Gigabit speeds with NBASE-T supportThis quad-port 2.5 GbE network interface card (NIC) features an Intel I225-V chipset with Intel vPro technology, to enhance performance and data integrity across four 2.5G ethernet connections. The variable multispeed options (2.5/1Gbps and 100/10Mbps) enable support for both new and legacy network hardware. Utilize existing Cat5e or CAT6 cabling infrastructure while adding NBASE-T (802.3bz) compatibility for seamless integration.Increased Network SpeedThe PCIe network card leverages Intel vPro technology for remote management and troubleshooting capabilities. Improve bandwidth for data-intensive applications, network sharing, FTPs, online or local storage/backup, and the streaming of online content - while reducing network slowdowns. Access up to 2.5GBASE-T speeds using Cat5e (or better) cabling, to maximize existing networks and equipment.Enhance Existing HardwareThe network interface card connects via an available x4 PCI Express 2.0 (or higher) expansion slot. The card ships in a standard-profile bracket and includes a low-profile bracket for installation into small form factor systems and servers. This ethernet NIC card is compatible with Windows, Windows Server, VMware, and Linux.This card supports the following advanced features: PXE Boot, WoL, VLAN tagging, 9 K jumbo frame, full-duplex, and Intel vPro technology.The StarTech.com Advantage
