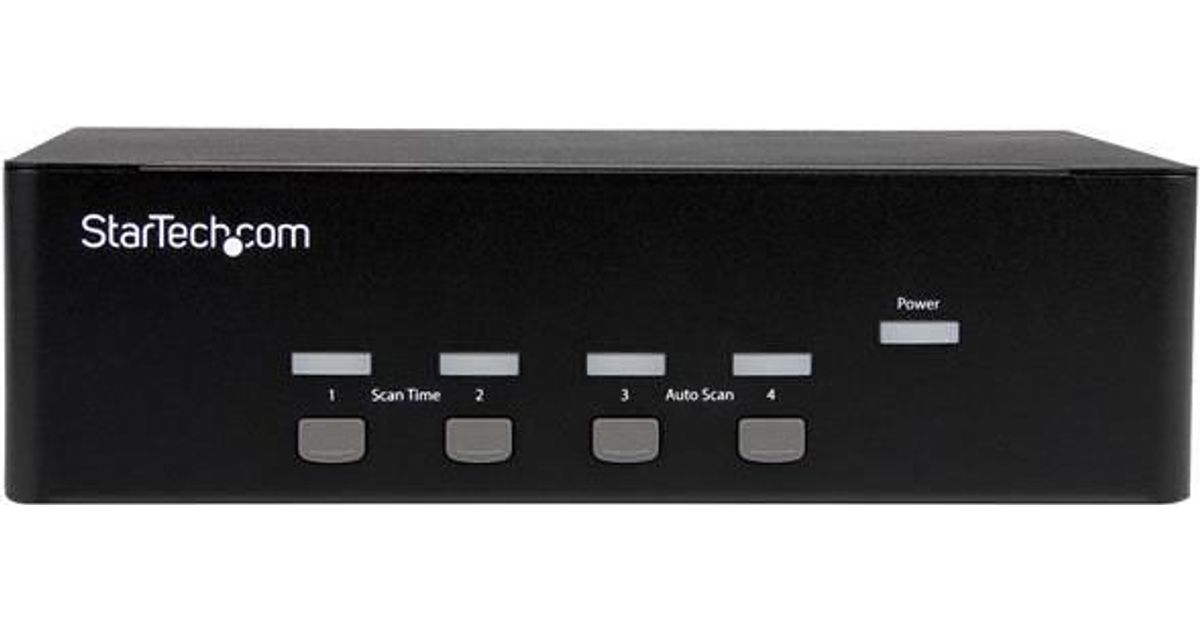

StarTech.com 4-port KVM Switch with Dual VGA - USB 2.0
StarTech.com 4-port KVM Switch with Dual VGA - USB 2.0, 1920 x 1200 pixels, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 16505010 |
| EAN | 04058829179977 |
| Manufacturer part number | SV431DVGAU2A |
| Category | KVM switches |
| Ports & interfaces | |
|---|---|
| Number of computers controlled | 4 |
| Keyboard port type | USB |
| Mouse port type | USB |
| Video port type | VGA |
| Console ports | 3.5mm headphone, USB A, VGA (D-Sub) |
| Console USB ports quantity | 4 |
| Audio connections | Y |
| Headphone outputs | 4 |
| Number of microphone inputs | 4 |
| DC-in jack | Y |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Performance | |
|---|---|
| Maximum analog resolution | 1920 x 1200 pixels |
| Number of users | 1 user(s) |
| Features | |
|---|---|
| Daisy chain | N |
| Certification | CE, FCC |
| Power plug type | Type M |
| Design | |
|---|---|
| Product colour | Black |
| Housing material | Steel |
| LED indicators | Y |
| Built-in display | N |
| Power | |
|---|---|
| AC input voltage | 110-240 V |
| Input current | 0.8 A |
| Output voltage | 12 V |
| Output current | 1.5 A |
| Compatible power plug types | AU,EU,UK,US |
| Other features | |
|---|---|
| External power adapter | Y |
| Audio support | Y |
| IP control | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 135 mm |
| Depth | 130 mm |
| Height | 60 mm |
| Weight | 1.24 kg |
| Package weight | 1.78 kg |
| Packaging data | |
|---|---|
| Package width | 255 mm |
| Package depth | 330 mm |
| Package height | 28 mm |
| Packaging content | |
|---|---|
| Manual | Y |
| AC adapter included | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
This USB KVM lets you connect four computers, each with dual VGA outputs, to a dual-monitor workstation. You can switch the workstation between each computer, as well as two additional USB peripheral devices and 3.5mm speakers & microphone.
Maximize productivity with dual video
With support for two VGA video inputs and four different computers, this KVM switch maximizes productivity. Not only can you access multiple computers, but you can also use two VGA monitors on each computer streaming independent content to each display, which gives you the freedom to multitask and increase your productivity. The VGA ports support resolutions up to 1920x1200 for maximum screen viewing space.
Multi-system access
Featuring dual video and support for your keyboard and mouse, along with a 2-port USB hub for additional peripheral devices, this KVM switch is perfect for accessing four separate systems using the same workstation. Support for your workstation plus two additional peripheral devices makes this KVM ideal for server control, simplifying access to multiple computer systems.
Hassle-free operation
This 4-port KVM ensures effortless operation with intuitive hotkey control. It provides a simple yet comprehensive solution for switching between each connected computer and also supports manual operation using the easy-to-access buttons located on the front of the switch.
The SV431DVGAU2A is backed by a 2-year StarTech.com warranty and free lifetime technical support.
Maximize productivity with dual video
With support for two VGA video inputs and four different computers, this KVM switch maximizes productivity. Not only can you access multiple computers, but you can also use two VGA monitors on each computer streaming independent content to each display, which gives you the freedom to multitask and increase your productivity. The VGA ports support resolutions up to 1920x1200 for maximum screen viewing space.
Multi-system access
Featuring dual video and support for your keyboard and mouse, along with a 2-port USB hub for additional peripheral devices, this KVM switch is perfect for accessing four separate systems using the same workstation. Support for your workstation plus two additional peripheral devices makes this KVM ideal for server control, simplifying access to multiple computer systems.
Hassle-free operation
This 4-port KVM ensures effortless operation with intuitive hotkey control. It provides a simple yet comprehensive solution for switching between each connected computer and also supports manual operation using the easy-to-access buttons located on the front of the switch.
The SV431DVGAU2A is backed by a 2-year StarTech.com warranty and free lifetime technical support.
