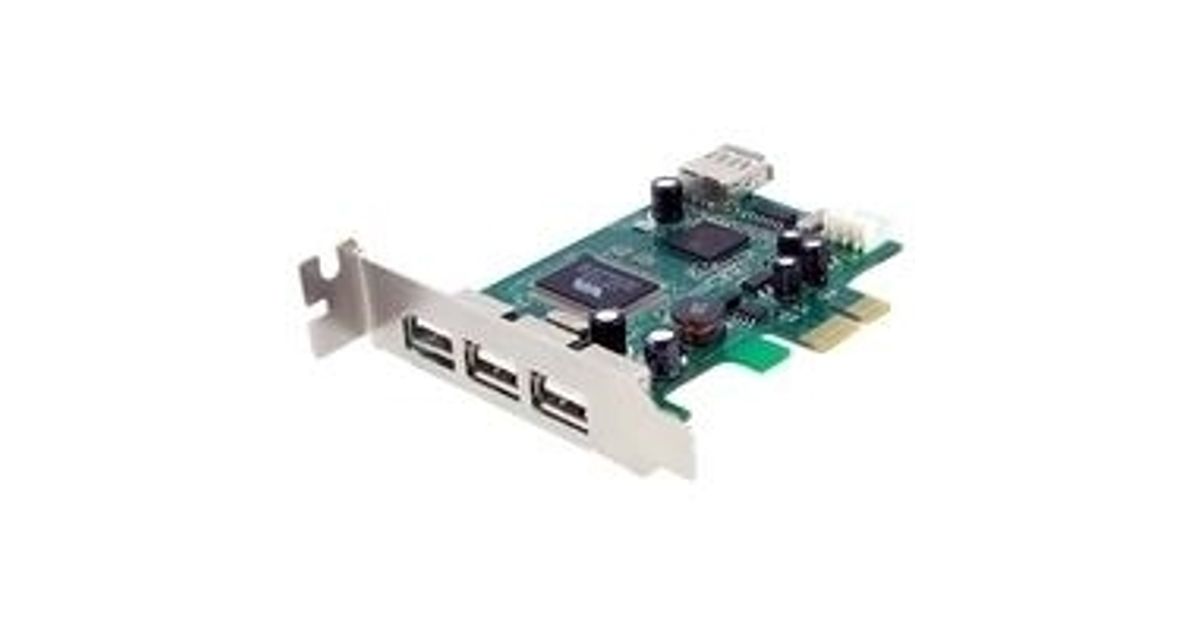

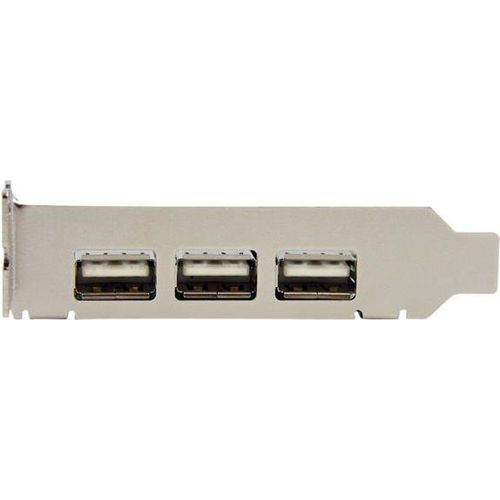

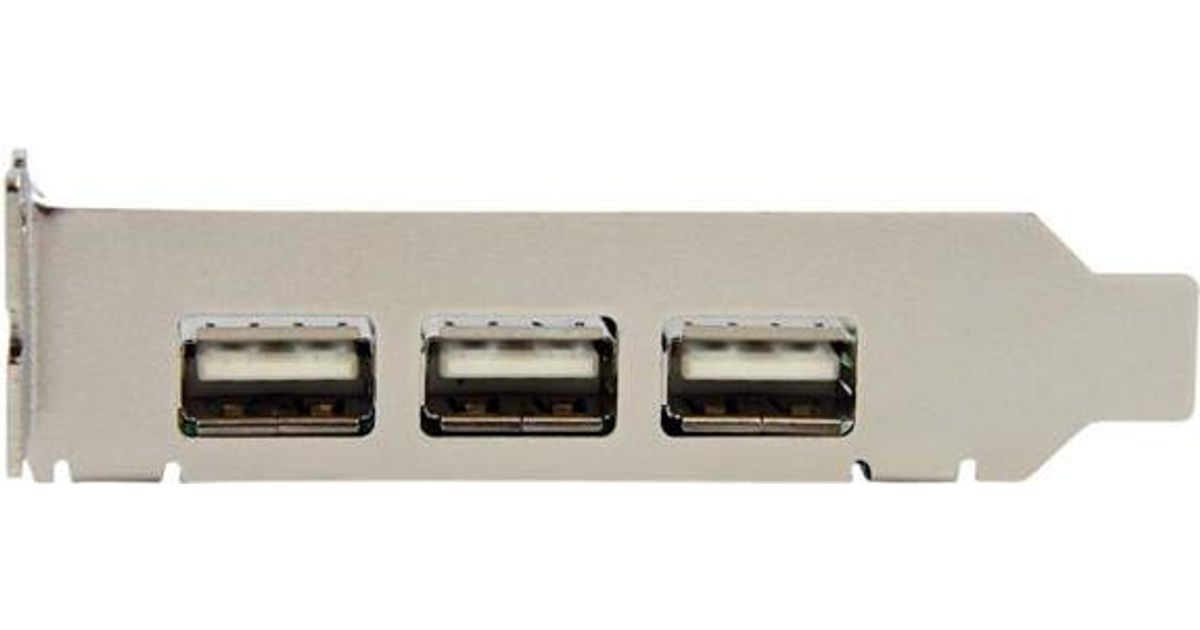

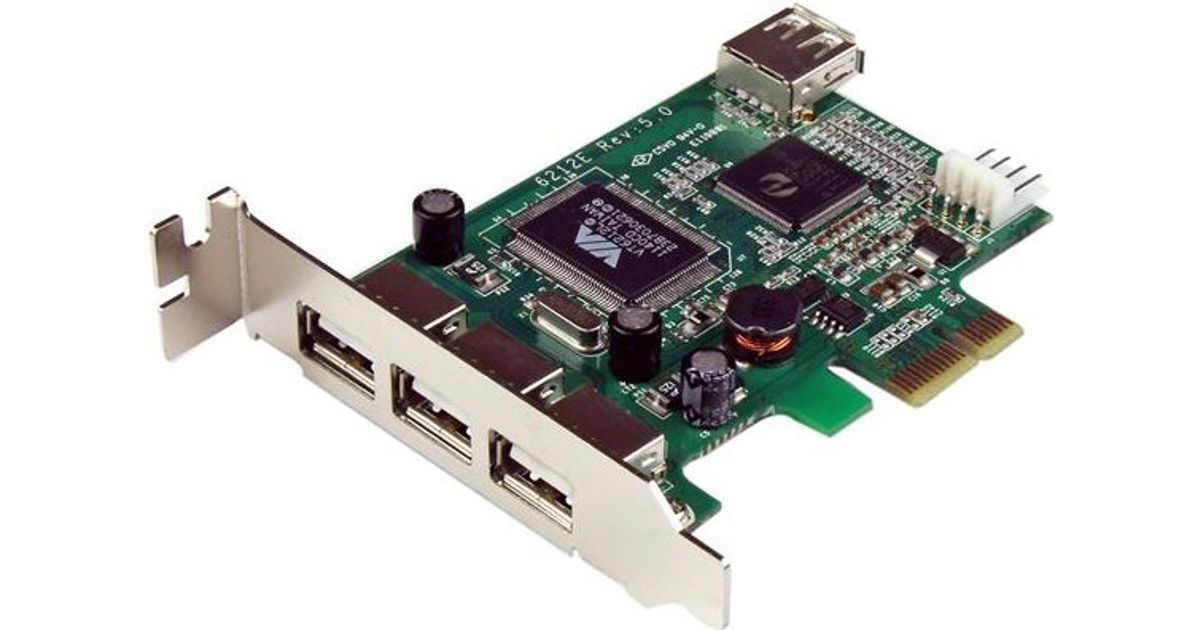

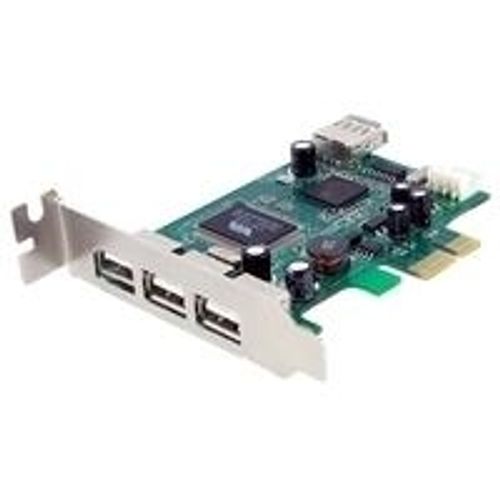

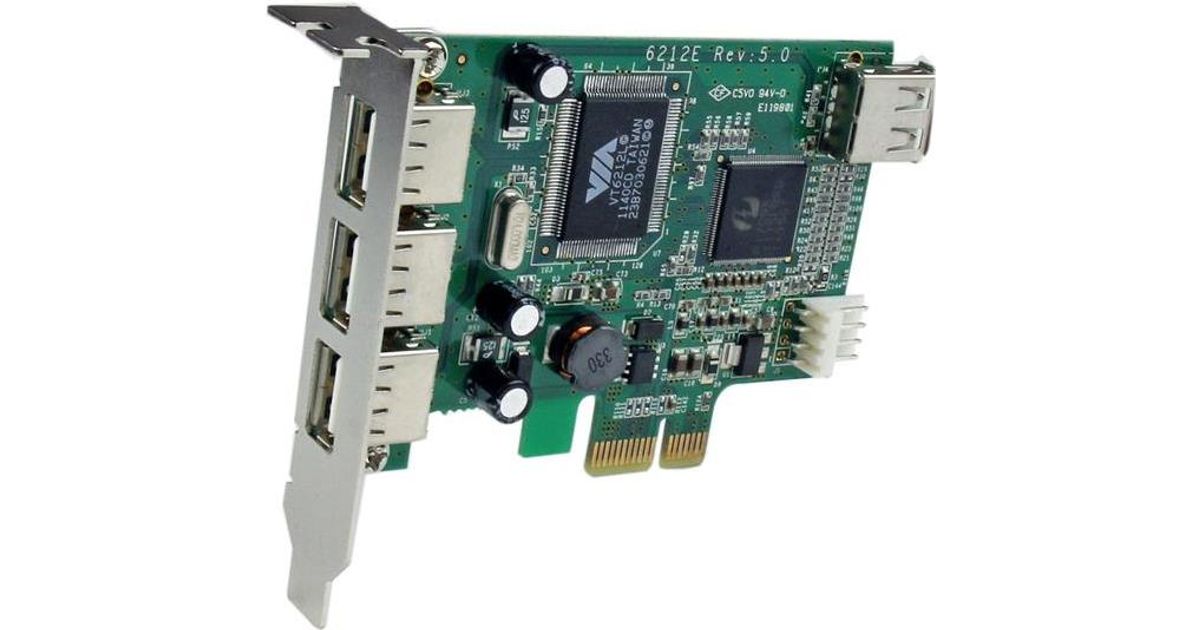

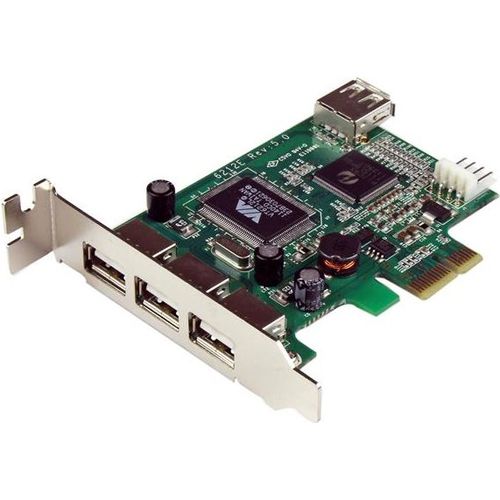

StarTech.com 4 Port PCI Express Low Profile High Speed USB Card
StarTech.com 4 Port PCI Express Low Profile High Speed USB Card, PCIe, USB 2.0, Green, CE, FCC, REACH, TAA, VIA/VLI - VT6212, 0.48 Gbit/s
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 161848671 |
| EAN | 05704174471431 |
| Manufacturer part number | PEXUSB4DP |
| Category | USB controllers |
| Ports & interfaces | |
|---|---|
| Host interface | PCIe |
| Output interface | USB 2.0 |
| Internal USB 2.0 ports quantity | 1 |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 3 |
| Performance | |
|---|---|
| Internal | Y |
| Chipset | VIA/VLI - VT6212 |
| Design | |
|---|---|
| Product colour | Green |
| Features | |
|---|---|
| Certification | CE, FCC, REACH, TAA |
| Data transfer rate (max) | 0.48 Gbit/s |
| Linux operating systems supported | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 75 °C |
| Storage temperature (T-T) | -40 - 125 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite,Mac OS X 10.6 Snow Leopard,Mac OS X 10.7 Lion,Mac OS X 10.8 Mountain Lion,Mac OS X 10.9 Mavericks |
| Drivers included | Y |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 80 mm |
| Depth | 90 mm |
| Height | 20 mm |
| Weight | 46 g |
| Package weight | 132 g |
| Packaging data | |
|---|---|
| Quantity | 1 |
| Mounting brackets included | Y |
| Package width | 174 mm |
| Package depth | 144 mm |
| Package height | 32 mm |
| Packaging content | |
|---|---|
| Manual | Y |
Product Description
Add 4 USB 2.0 ports to your low profile/small form factor computer through a PCI Express expansion slot
The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance. Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation. Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.
The StarTech.com Advantage
- Add 4 USB 2.0 ports to a low profile/small form factor (SFF) computer system, to conserve expansion port availability
- Dedicated power input ensures each port receives the full amount of power capable under USB 2.0 specification
- Backed by a StarTech.com 2-year warranty and free lifetime technical support
The PEXUSB4DP is a low profile 4 port USB card designed for versatility and performance. Providing simple system expansion for added peripheral connections, this PCI Express USB card adds 3 external USB 2.0 slots and 1 internal USB 2.0 slot, with support for high speed USB 2.0 data transfer rates of up to 480 Mbps, and includes WHQL certified drivers and easy plug and play installation. Capable of adapting to virtually any PC case form factor, the low profile USB card includes a standard profile bracket for installation in full form factor cases.
