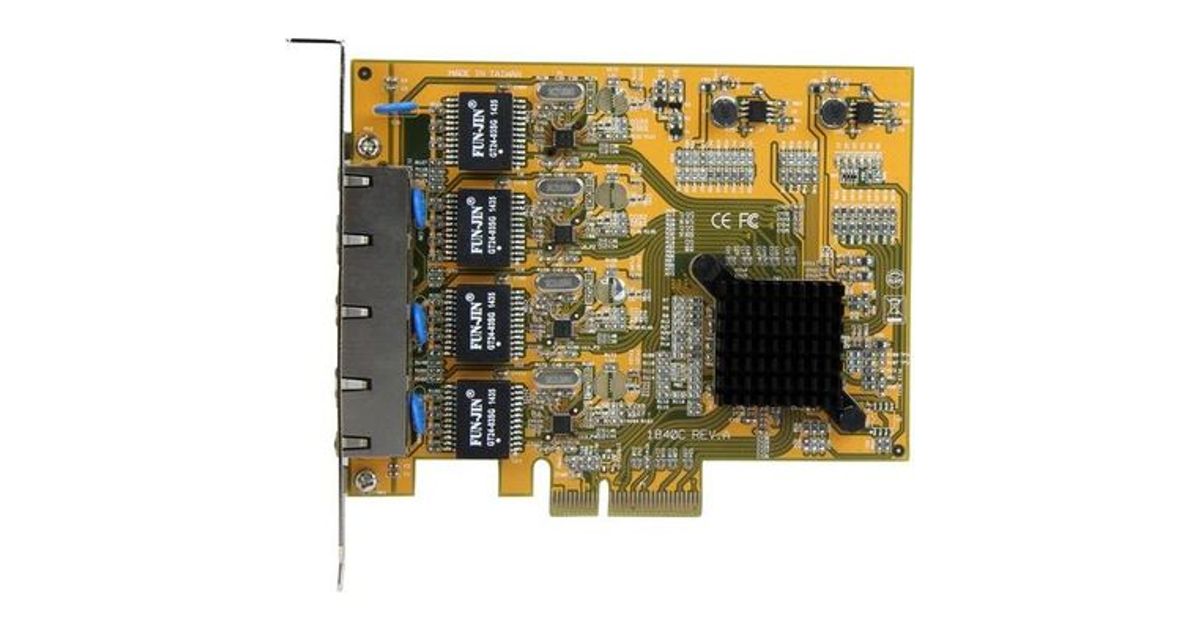

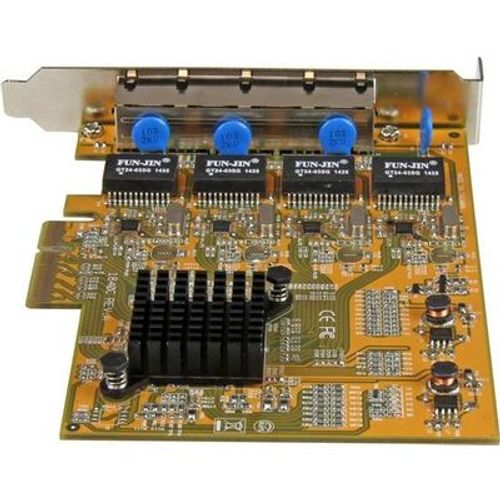

StarTech.com 4-Port PCIe Gigabit Network Adapter Card
StarTech.com 4-Port PCIe Gigabit Network Adapter Card, Internal, Wired, PCI Express, Ethernet, 2000 Mbit/s
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 16485323 |
| EAN | 00065030862448 |
| Manufacturer part number | ST1000SPEX43 |
| Category | Network adapters |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | PCI Express |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 4 |
| Features | |
|---|---|
| Maximum data transfer rate | 2000 Mbit/s |
| Full duplex | Y |
| Linux operating systems supported | Y |
| Flow control support | Y |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3ab |
| Case colour | Yellow |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,1000,100 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Wake-on-LAN ready | Y |
| Auto MDIX IEEE | N |
| Data transmission | |
|---|---|
| Jumbo frames support | Y |
| Performance | |
|---|---|
| Internal | Y |
| Chipset | Realtek RTL8111G |
| Design | |
|---|---|
| LED indicators | Activity, Link |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2003,Windows Server 2012,Windows Server 2016,Windows Server 2019 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -40 - 75 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Sustainability | |
|---|---|
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Width | 120 mm |
| Depth | 138 mm |
| Height | 18 mm |
| Weight | 95 g |
| Package weight | 184 g |
| Packaging data | |
|---|---|
| Package width | 209 mm |
| Package depth | 145 mm |
| Package height | 40 mm |
| Logistics data | |
|---|---|
| Master (outer) case width | 44.6 cm |
| Master (outer) case length | 52.1 cm |
| Master (outer) case height | 34.4 cm |
| Products per master (outer) case | 50 pc(s) |
Product Description
Add four Gigabit Ethernet ports to a client, server or workstation through one PCI Express slot
Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.
Reliable connectivity to multiple networks
This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111G chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.
A versatile and cost-effective solution
This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).
The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.
The StarTech.com Advantage
- Add four independent Gigabit RJ45 ports to connect to multiple networks for high-bandwidth workstations and servers
- Realtek RTL8111G chipset for reliable performance
- Supports full-duplex flow control
Now you can add four separate Gigabit network ports to your client, server or workstation through just one PCI Express slot, to provide connectivity to multiple networks without draining your budget.
Reliable connectivity to multiple networks
This 4-port network card delivers powerful connectivity for your business, corporate or government office environment, with support for high-performance, 4-channel networking and a maximum throughput of up to 1000Mbps in each direction (2000 Mbps total). The network adapter card features the Realtek RTL8111G chipset, which is designed to deliver the performance and enhanced capabilities you need for reliable network connections to your server or computer.
A versatile and cost-effective solution
This versatile quad-port network card is ideal for many business applications requiring upgrades to servers or workstations, adding feature-rich Gigabit networking with four independent ports. Compatible with a broad range of operating systems, this cost-effective PCIe Gigabit NIC is suitable for many SMB and Enterprise applications such as virtualized environments that require multiple NICs (check your VM software for chipset compatibility).
The ST1000SPEX43 is backed by a StarTech.com 2-year hardware warranty and free lifetime technical support.
The StarTech.com Advantage
- Add four independent Gigabit RJ45 ports to connect to multiple networks for high-bandwidth workstations and servers
- Realtek RTL8111G chipset for reliable performance
- Supports full-duplex flow control
