StarTech.com 4x4 HDMI Matrix Video Switch Splitter with Audio and RS232
StarTech.com 4x4 HDMI Matrix Video Switch Splitter with Audio and RS232, AV matrix switcher, 1920 x 1200 pixels, Black, CE, FCC, TAA, REACH, 18 W, 100 - 240 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 166350569 |
| EAN | 00650308421054 |
| Manufacturer part number | VS440HDMI |
| Category | Audio/video/HDMI switches and splitters |
| Design | |
|---|---|
| Product type | AV matrix switcher |
| Rack mounting | Y |
| LED indicators | Y |
| Built-in display | Y |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1200 pixels |
| Features | |
|---|---|
| Housing colour | Black |
| Certification | CE, FCC, TAA, REACH |
| Ports & interfaces | |
|---|---|
| HDMI input ports quantity | 4 |
| HDMI output ports quantity | 4 |
| RS-232 ports | 1 |
| Power | |
|---|---|
| Power consumption (typical) | 18 W |
| AC input voltage | 100 - 240 V |
| Input current | 0.6 A |
| Output current | 1500 mA |
| Output voltage | 12 V |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -20 - 85 °C |
| Operating relative humidity (H-H) | 0 - 95% |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 185 mm |
| Depth | 440 mm |
| Height | 42 mm |
| Weight | 2.4 kg |
| Package weight | 3.1 kg |
| Packaging data | |
|---|---|
| Package width | 263 mm |
| Package depth | 581 mm |
| Package height | 90 mm |
| Mounting brackets included | Y |
| Screws included | Y |
| Included power plug types | AU,EU,UK,US |
| Packaging content | |
|---|---|
| Cables included | RS-232 |
| Rack mount kit | Y |
| Manual | Y |
| AC adapter included | Y |
| Number of screws | 6 |
| IR extender included | Y |
Product Description

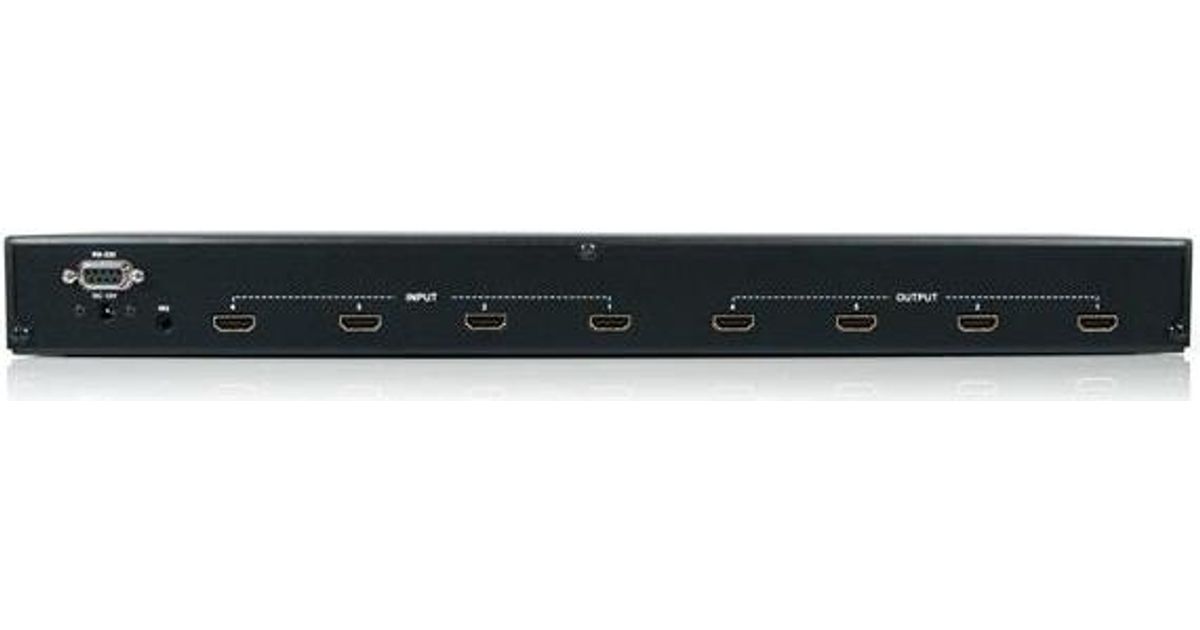

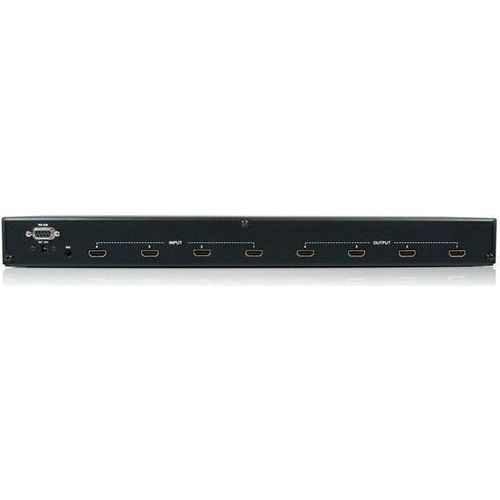

The VS440HDMI 4x4 HDMI® Audio/Video Matrix Switch/Splitter (with Audio and RS232) lets you share up to 4 distinct HDMI or DVI inputs (using HDMI to DVI adapters - not included), with audio, between 4 independent displays or projectors.
Providing convenient front push-button and RS232 PC software control, this matrix switch allows each input and the corresponding audio to be switched individually, meaning that different A/V sources can be shown on each output, or a single source can be output to several offering maximum flexibility.

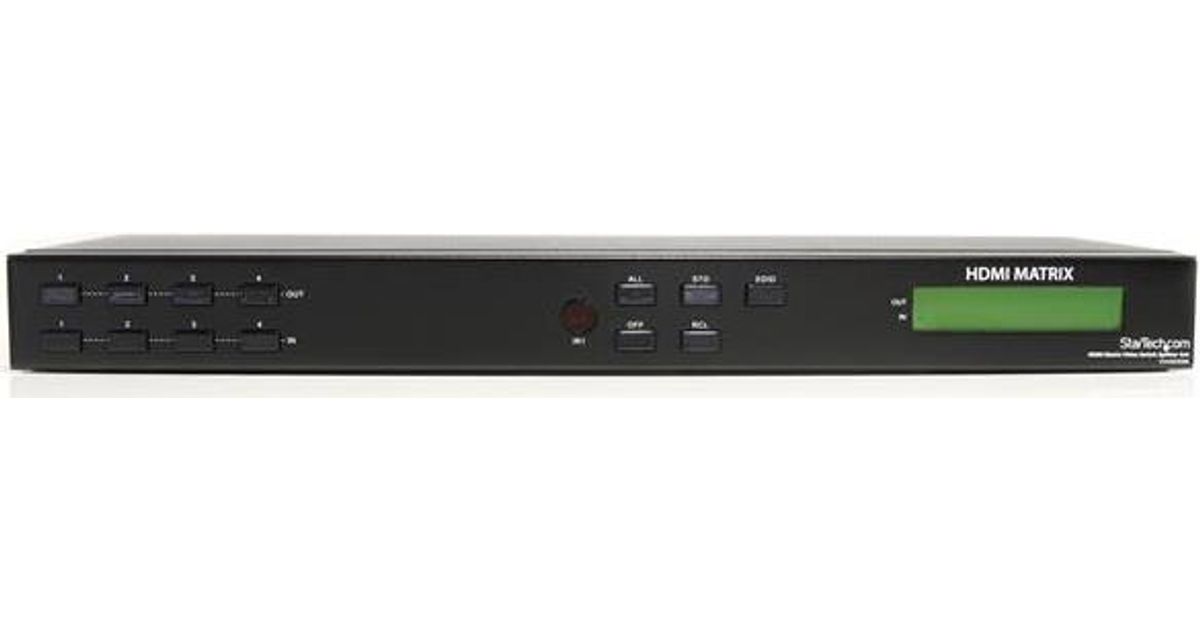

The switcher features a front panel LCD display for easy status monitoring, plus an included remote control and IR extender module for simple control from a distance.
Designed to provide maximum functionality while saving space, the HDMI Video Matrix Switch can be used as a standalone solution or rack-mounted using ear-mounts (included).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Matrix switching functionality gives you full control of the video source displayed on each monitor, at the touch of a button
- Front panel push-buttons, RS-232 PC port and IR remote included for simple control and flexible switching options
- Storage of display configurations allow for convenient recall of preferred combinations
Providing convenient front push-button and RS232 PC software control, this matrix switch allows each input and the corresponding audio to be switched individually, meaning that different A/V sources can be shown on each output, or a single source can be output to several offering maximum flexibility.
The switcher features a front panel LCD display for easy status monitoring, plus an included remote control and IR extender module for simple control from a distance.
Designed to provide maximum functionality while saving space, the HDMI Video Matrix Switch can be used as a standalone solution or rack-mounted using ear-mounts (included).
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Matrix switching functionality gives you full control of the video source displayed on each monitor, at the touch of a button
- Front panel push-buttons, RS-232 PC port and IR remote included for simple control and flexible switching options
- Storage of display configurations allow for convenient recall of preferred combinations
