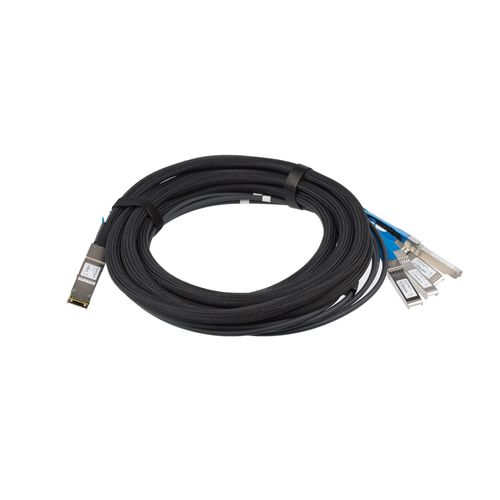

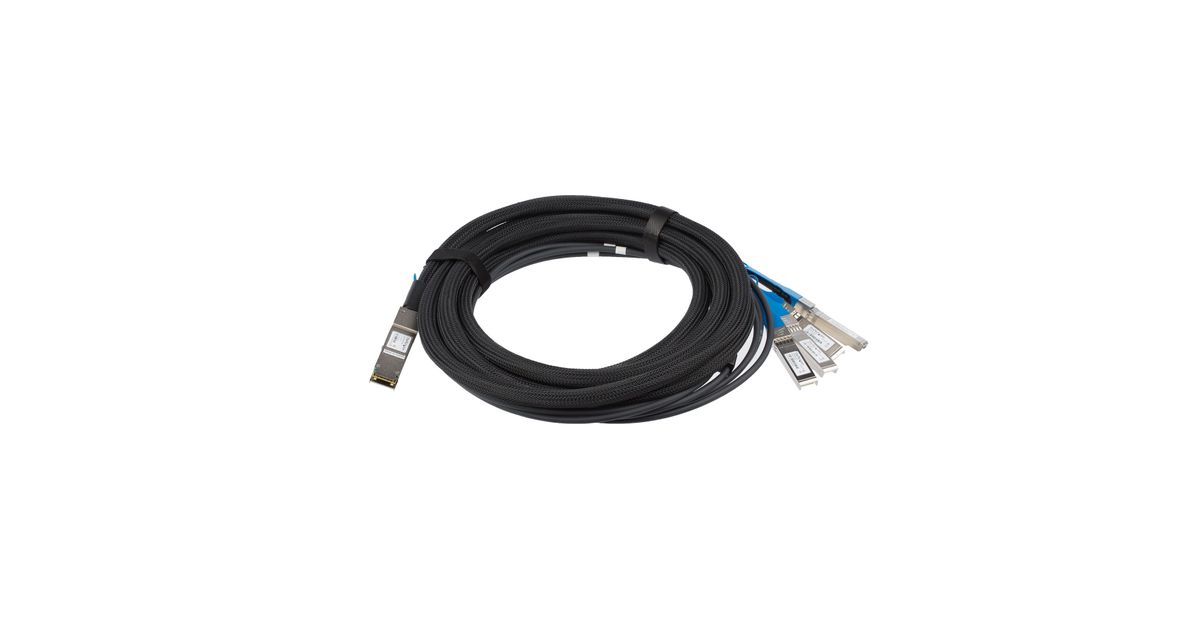

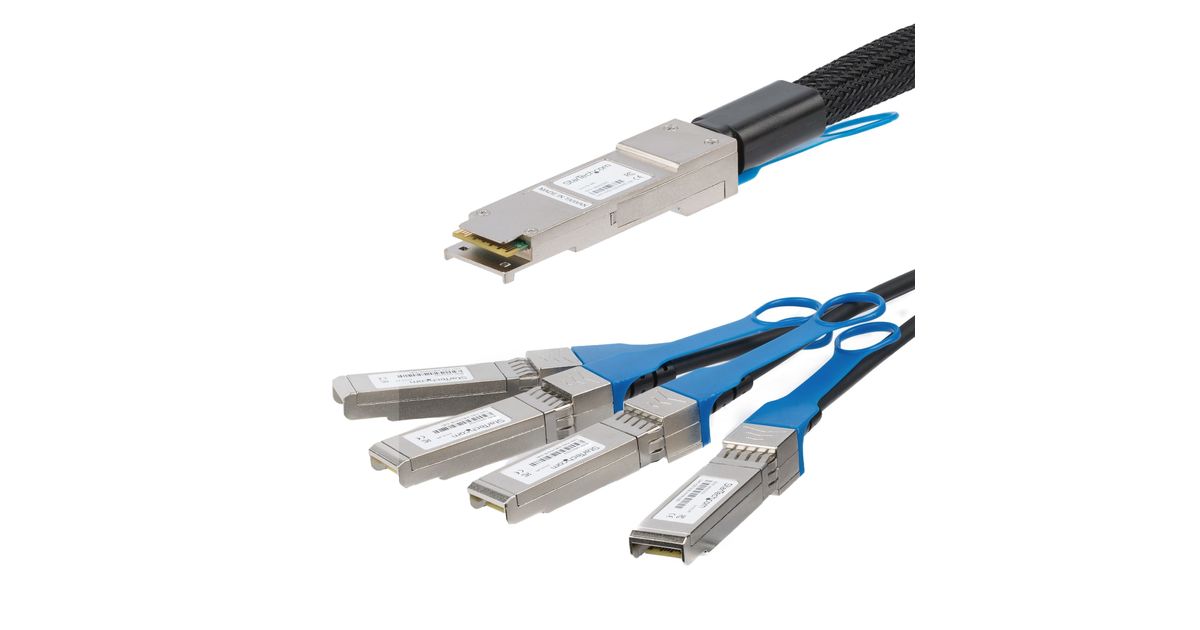

StarTech.com Cisco QSFP-4SFP10G-CU5M Compatible 5m 40G QSFP+ to 4x SFP+ Direct Attach Breakout Cable Twinax - 40GbE QSFP+ Copper DAC - Low Power Passive Transceiver Module DAC - Cisco Firepower, C9300, C3850
StarTech.com Cisco QSFP-4SFP10G-CU5M Compatible 5m 40G QSFP+ to 4x SFP+ Direct Attach Breakout Cable Twinax - 40GbE QSFP+ Copper DAC - Low Power Passive Transceiver Module DAC - Cisco Firepower, C9300, C3850, 5 m, QSFP+, 4x SFP+
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 229085579 |
| EAN | 00065030874984 |
| Manufacturer part number | QSFP4SFP10C5 |
| Category | Network cables |
| Features | |
|---|---|
| Cable length | 5 m |
| Connector 1 | QSFP+ |
| Connector 2 | 4x SFP+ |
| Connector 1 gender | Male |
| Connector 2 gender | Male |
| Jacket material | Polyvinyl chloride (PVC) |
| AWG wire size | 26 |
| Data transfer rate | 40000 Mbit/s |
| Plug and Play | Y |
| Certification | CE, FCC, REACH |
| Harmonized System (HS) code | 84733080 |
| Input impedance | 100 Ω |
| Design | |
|---|---|
| Product colour | Black |
| Network | |
|---|---|
| Cabling technology | 40GBase-T |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 80 °C |
| Weight & dimensions | |
|---|---|
| Width | 14 mm |
| Depth | 5000 mm |
| Height | 12 mm |
| Weight | 500 g |
| Package weight | 816 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 275 mm |
| Package depth | 325 mm |
| Package height | 35 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Logistics data | |
|---|---|
| Master (outer) case width | 334 mm |
| Master (outer) case length | 638 mm |
| Master (outer) case height | 282 mm |
| Products per master (outer) case | 10 pc(s) |
Product Description
Copper QSFP+ Cable | 40 Gbps | Passive Breakout DAC | Lifetime Warranty
The QSFP4SFP10C5 is a Cisco QSFP-4SFP10G-CU5M compatible QSFP+ direct-attach breakout cable. It is designed, programmed and tested to work with Cisco brand compatible servers or routers and complies with MSA industry standards. Connecting a single QSFP+ port to four 10G SFP+ ports, this passive copper breakout cable is fully hot-pluggable which makes upgrades and replacements seamless by minimizing network disruptions.
Designed for short-length and high-speed interconnects, this low-power, low-latency copper QSFP+ cable is also a cost-effective alternative to fiber-optic cable assemblies. It supports short-distance applications such as point-to-point in-rack and across-rack network switch or server connections, for up to four 10G SFP+ devices.
StarTech.com SFP Cables
All StarTech.com QSFP & QSFP+ cables are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of direct-attach SFP Cables and SFP modules, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% CISCO QSFP-4SFP10G-CU5M COMPATIBLE QSFP+ BREAKOUT DAC: Works with Cisco switches like Firepower, C9300, C3850, C9300, C9500 and others
- TECHNICAL SPECS: 5m (16.4ft)
- 40Gbps
