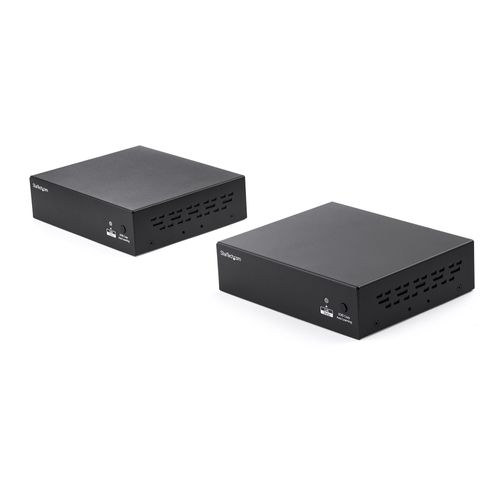

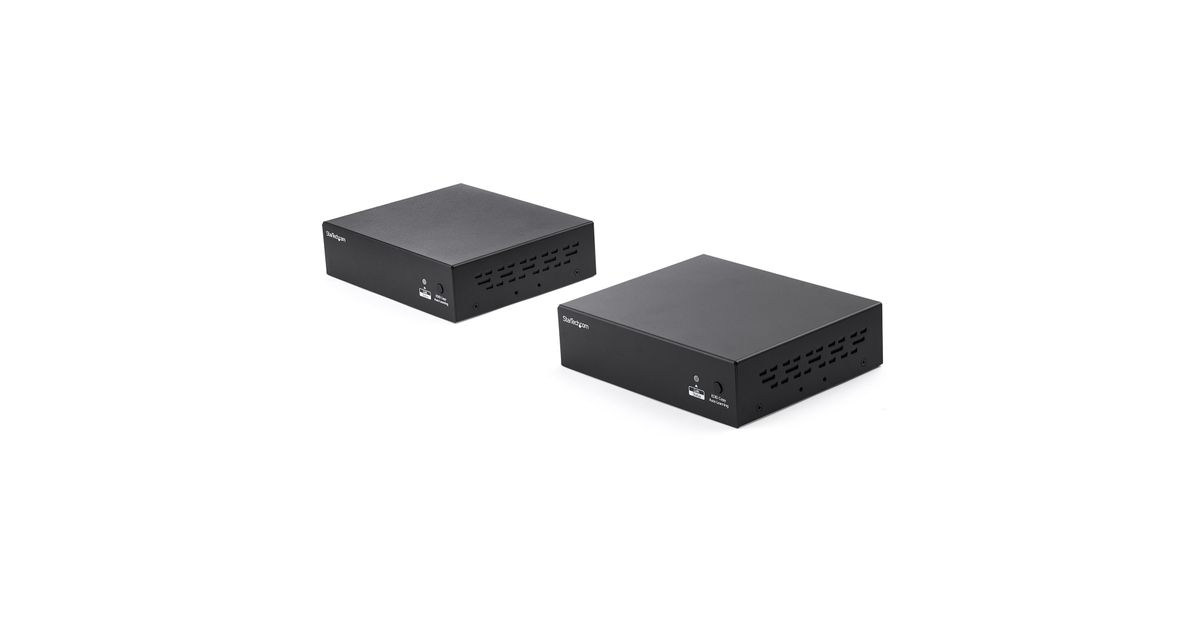

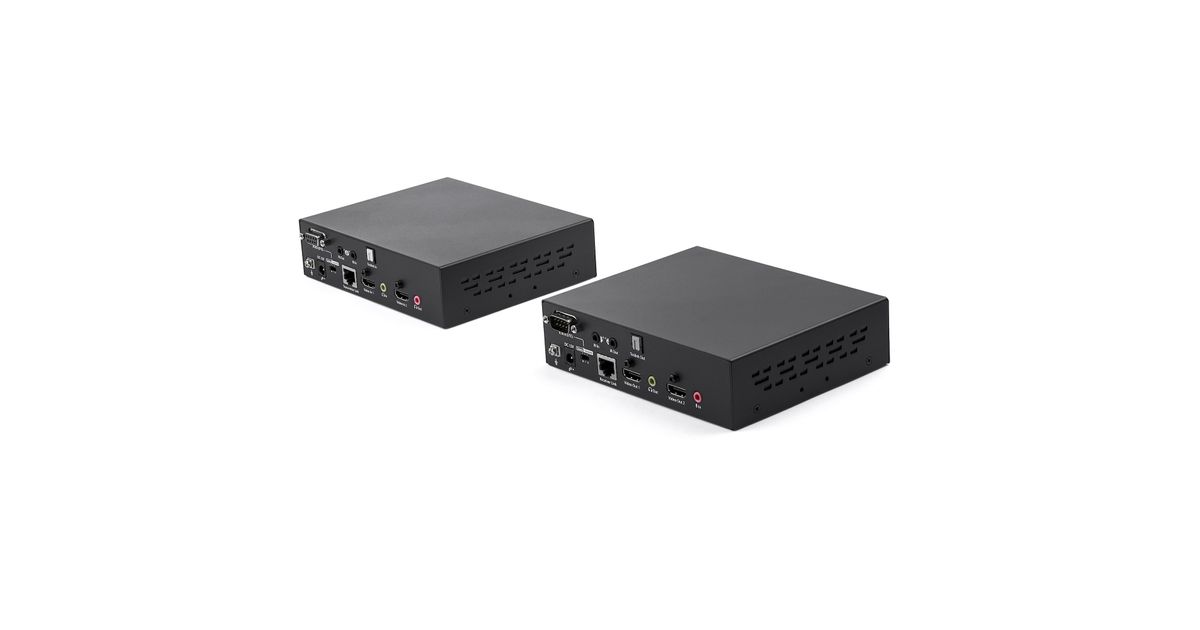

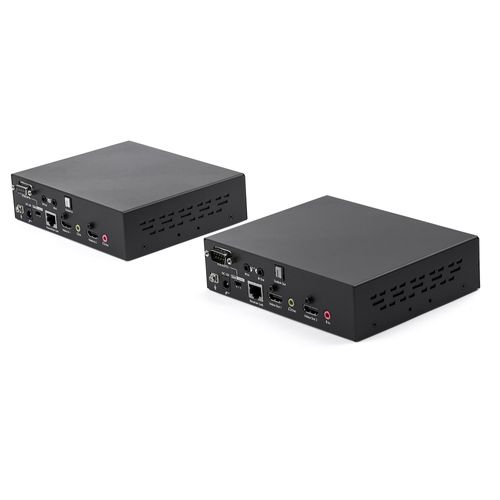

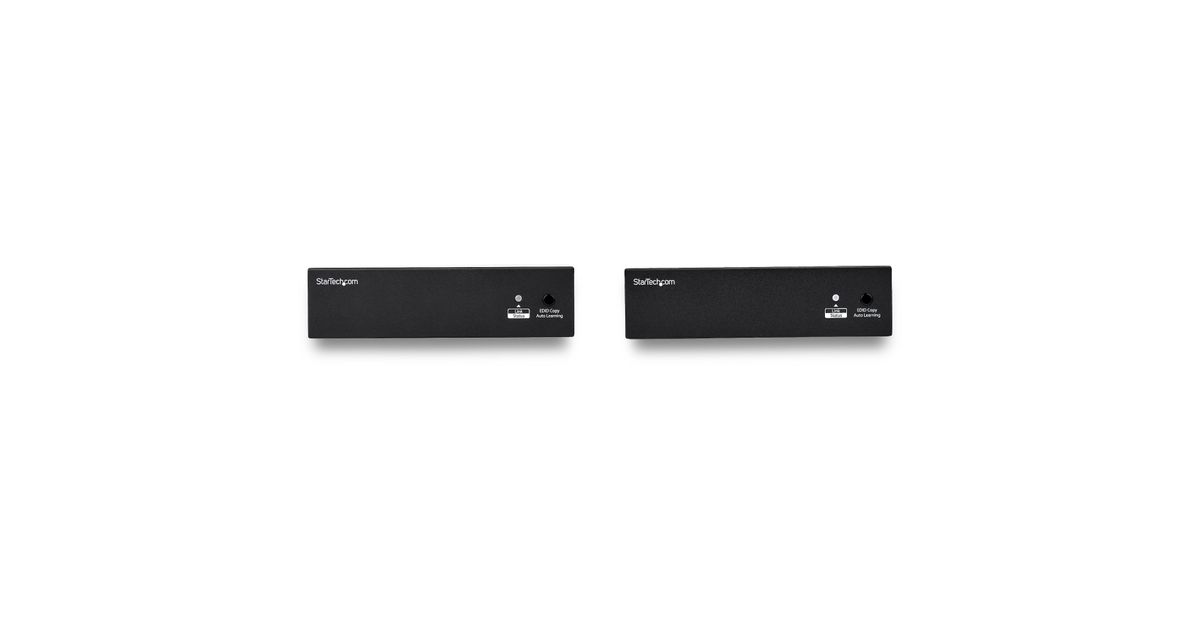

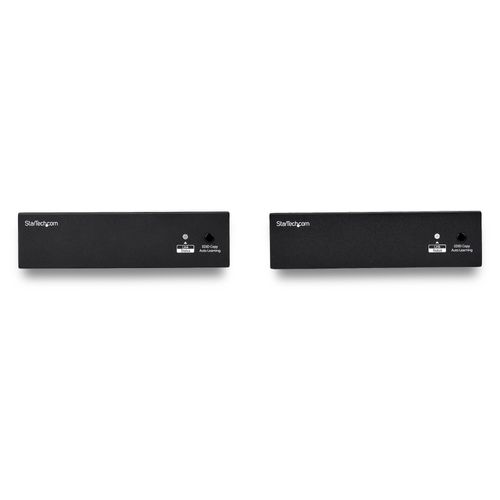

StarTech.com Dual HDMI over CAT6 Extender - 1080p
StarTech.com Dual HDMI over CAT6 Extender - 1080p, 1920 x 1080 pixels, AV transmitter & receiver, 90 m, Wired, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 229888549 |
| EAN | 00065030878470 |
| Manufacturer part number | ST222HDBT |
| Features | |
|---|---|
| Type | AV transmitter & receiver |
| Audio output channels | 7.1 channels |
| Supported video modes | 720p, 1080p |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080) |
| Daisy chain | N |
| Certification | CE, FCC, TAA |
| Power plug type | Type M |
| Graphics | |
|---|---|
| Maximum resolution | 1920 x 1080 pixels |
| Network | |
|---|---|
| Cable types supported | Cat5e, Cat6 |
| Performance | |
|---|---|
| Maximum transfer distance | 90 m |
| Chipset | VS2310TX, VS2310RX |
| Display | |
|---|---|
| Maximum refresh rate | 60 Hz |
| Design | |
|---|---|
| LED indicators | Link, Status |
| Product colour | Black |
| Packaging data | |
|---|---|
| Rubber feet | Y |
| Receiver dimensions (W x D x H) | 130 x 158 x 43 mm |
| Package width | 224 mm |
| Package depth | 475 mm |
| Package height | 67 mm |
| Included power plug types | ANZ, EU, JP, NA, UK |
| Mounting brackets included | Y |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |

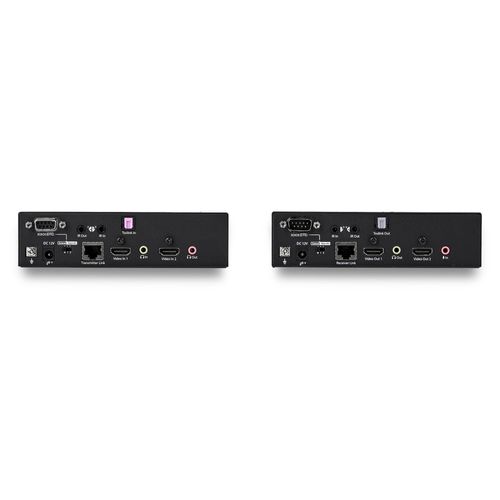

| Ports & interfaces | |
|---|---|
| RJ-45 input ports | 1 |
| RJ-45 output ports | 1 |
| HDMI in | 2 |
| Number of HDMI outputs | 2 |
| Audio input | 1 x Toslink |
| Audio output | 1 x Toslink |
| Serial interface type | RS-232 |
| 3.5 mm (1/8-inch) in | Y |
| 3.5 mm (1/8-inch) out | Y |
| Remote (IR) input | 2 |
| Remote (IR) output | 2 |
| DC-in jack | Y |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 2 |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| Operating voltage | 12 V |
| Output current | 1.5 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -10 - 60 °C |
| Operating relative humidity (H-H) | 0 - 80% |
| Weight & dimensions | |
|---|---|
| Weight | 200 g |
| Receiver weight | 200 g |
| Transmitter dimensions (WxDxH) | 130 x 158 x 43 mm |
| Transmitter weight | 200 g |
| Package weight | 1.43 kg |

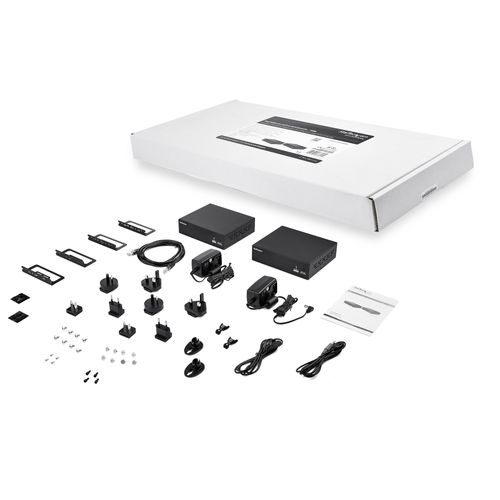

| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| Manual | Y |
| IR blaster included | Y |
| IR receiver included | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Logistics data | |
|---|---|
| Master (outer) case width | 300 mm |
| Master (outer) case length | 485 mm |
| Master (outer) case height | 253 mm |
| Products per master (outer) case | 4 pc(s) |
Product Description
Extend two HDMI signals to distances up to 295 ft. (90m) over a single CAT5e or CAT6 cableThis HDMI® over CAT6 extender lets you extend two HDMI sources up to 90 m (295 ft.), to individual HDMI displays over a single CAT6 cable. Designed for a simple, tidy setup, the extender also supports bi-directional IR control for added flexibility.Dual source supportReduce the need for additional equipment and cables, by extending two HDMI connections with a single CAT6 cable. Running only one cable can save cost on installation or enable you to extend two HDMI signals using an existing cable run. You can also use this 1080p HDMI extender to run separate video signals to the same display, for mission critical digital signage applications where if one signal goes down, the other can easily be swapped in it's place.Bi-directional controlWith bi-directional IR control, you can control your devices from either end of the extension, such as a Blu-ray™ player and laptop on one end and two TV displays on the other. The extender includes an IR kit with discreet dongles that easily connect to both your transmitter and receiver, enabling you to remotely control any device you choose from either side of your extension.Simplified setupThe simplicity of one-cable setup avoids the hassle of running multiple cables, while also reducing potential failure points. The included mounting hardware offers professional mounting options ideal for public spaces such as offices or auditoriums.The TAA compliant ST222HDBT is backed by a 2-year StarTech.com warranty and free lifetime technical support.The StarTech.com Advantage
