StarTech.com Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand
StarTech.com Dual-Monitor USB 3.0 Docking Station with DVI and Vertical Stand, Wired, USB 3.2 Gen 1 (3.1 Gen 1) Type-B, 3.5 mm, 10,100,1000 Mbit/s, IEEE 802.3,IEEE 802.3ab,IEEE 802.3u, Black, Silver
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 16532470 |
| EAN | 00650308582670 |
| Manufacturer part number | USB3SDOCKDD |
| Category | Dockingstations |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 1 (3.1 Gen 1) Type-B |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity | 5 |
| Headphone outputs | 1 |
| DVI-I ports quantity | 1 |
| Combo headphone/mic port | Y |
| Headphone connectivity | 3.5 mm |
| DC-in jack | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| USB data transfer rates | 12,480,5000 Mbit/s |
| Rear panel I/O ports | |
|---|---|
| DVI-D ports quantity | 1 |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wake-on-LAN ready | Y |
| Auto MDI/MDI-X | Y |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3u |
| Other operating systems supported | Chrome |
| Features | |
|---|---|
| Full duplex | Y |
| Data transfer rate | 5 Gbit/s |
| UASP support | Y |
| Brand compatibility | Any brand |
| Certification | CE, FCC, REACH |
| Power plug type | Type M |
| Cable length | 1 m |
| Design | |
|---|---|
| Product colour | Black, Silver |
| LED indicators | Power |
| Housing material | Aluminium, Plastic |
| Storage | |
|---|---|
| Card reader integrated | N |
| Performance | |
|---|---|
| Maximum analog resolution | 2048 x 1152 pixels |
| Charging function | Y |
| Power source type | AC |
| Chipset | DisplayLink - DL-3900, Genesys Logic - GL3520 |
| Packaging data | |
|---|---|
| Rubber feet | Y |
| Package width | 255 mm |
| Package depth | 186 mm |
| Package height | 95 mm |
| Power | |
|---|---|
| AC input voltage | 100-240 V |
| Input current | 0.8 A |
| Output voltage | 5 V |
| Output current | 4 A |
| Power consumption (typical) | 20 W |
| Compatible power plug types | AU,EU,UK,US |
| Software | |
|---|---|
| Mac compatibility | Y |
| Mac operating systems supported | Mac OS X 10.11 El Capitan,Mac OS X 10.12 Sierra,Mac OS X 10.14 Mojave |
| Drivers included | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 85% |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 23 mm |
| Depth | 83 mm |
| Height | 178 mm |
| Weight | 285 g |
| Package weight | 1.02 kg |
| Packaging content | |
|---|---|
| Cables included | USB |
| AC adapter included | Y |
| Manual | Y |
| Stand included | Y |
| Interface adapters included | DVI-I male - HDMI female, DVI-I male - VGA female |
Product Description
Laptop Docking Station | Mac & Windows | DVI to VGA & HDMI Adapters | 2x Charge Ports

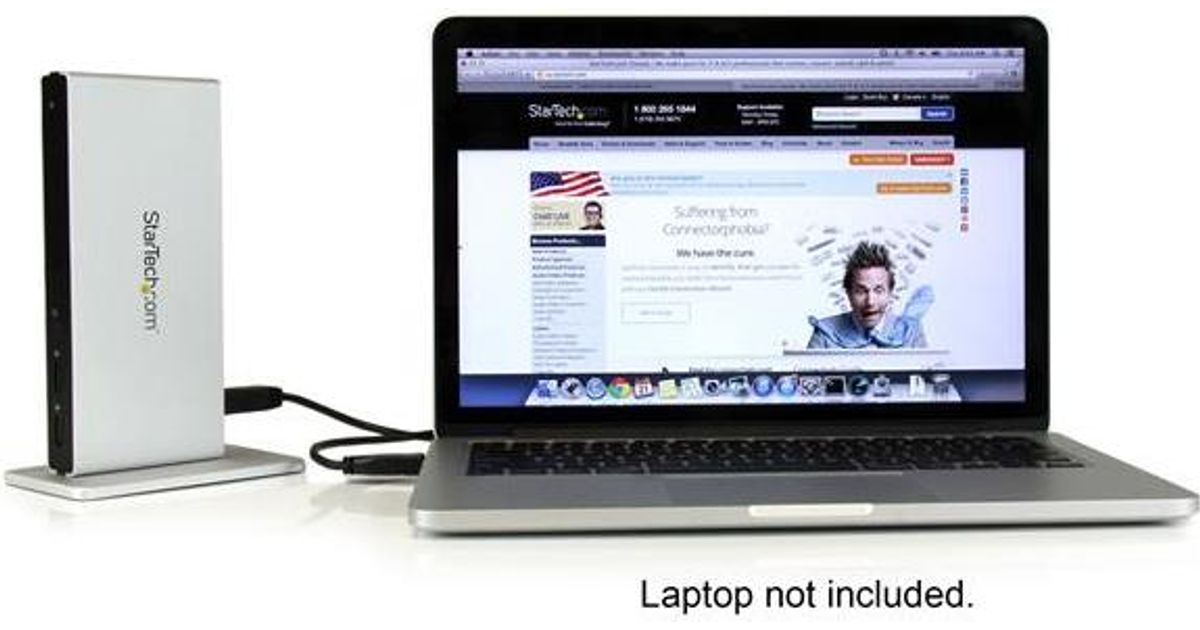

This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.
Display Flexibility

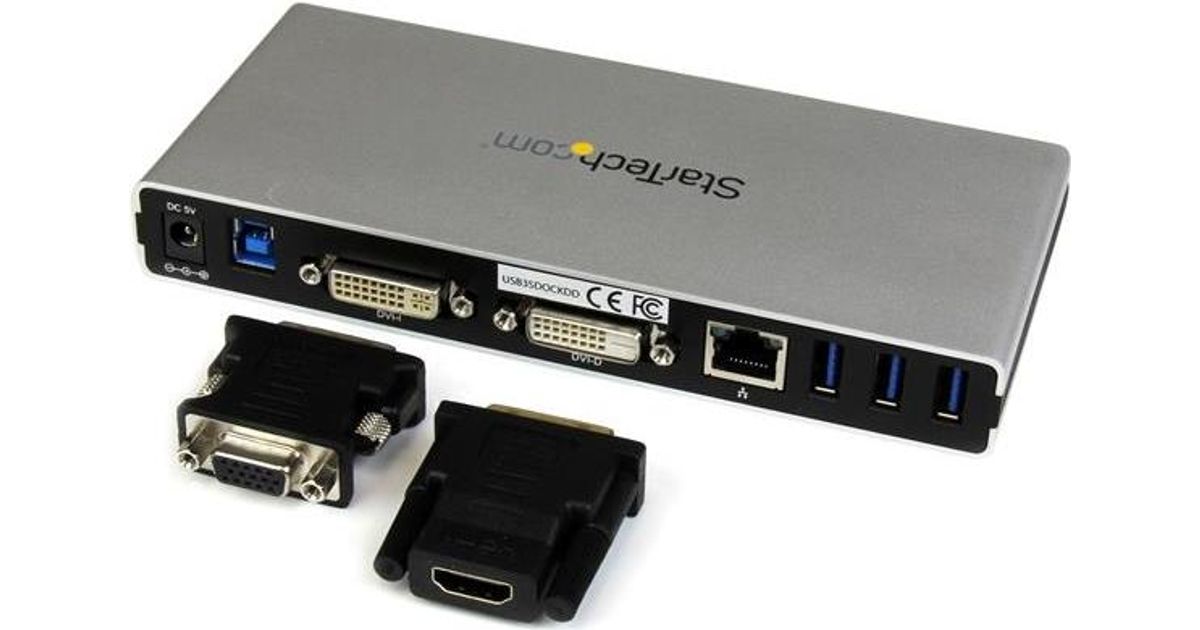

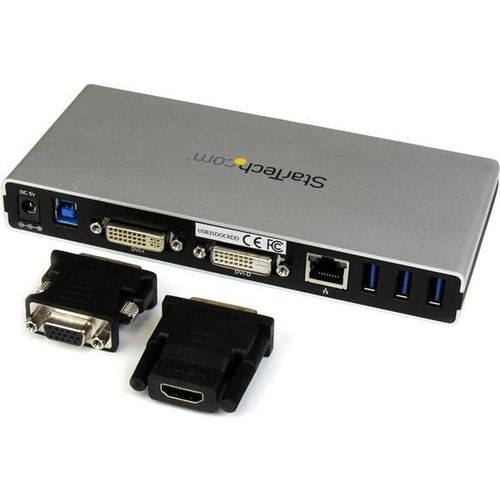

The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048x1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.
Powerful Connections and Fast Device Charging
Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.
Save Desktop Space

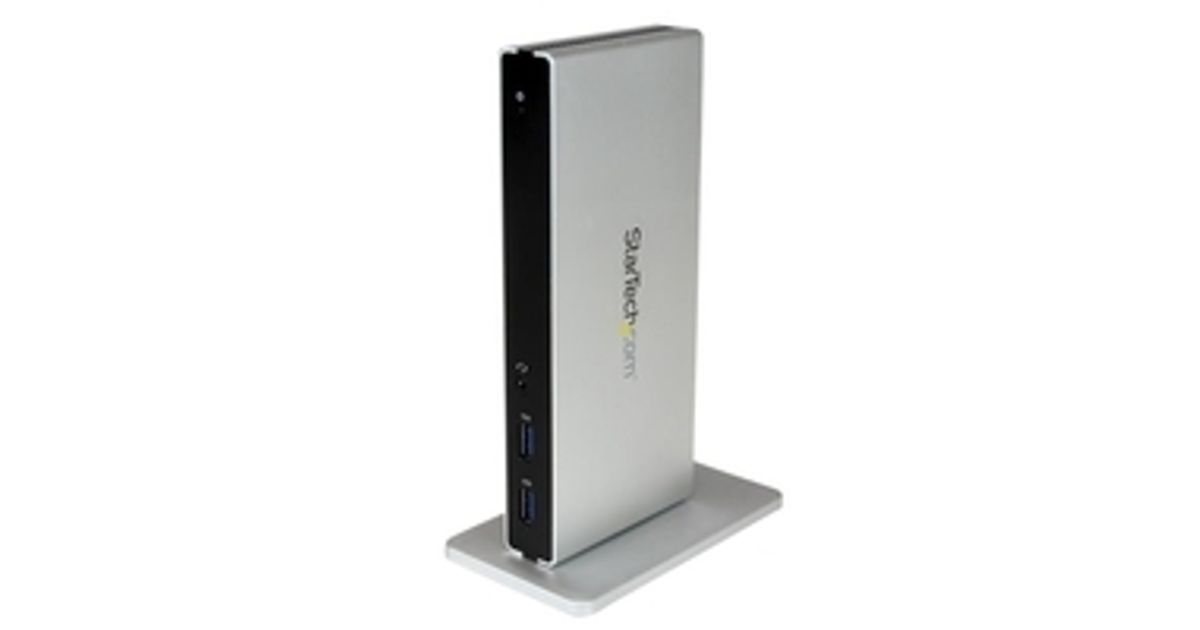

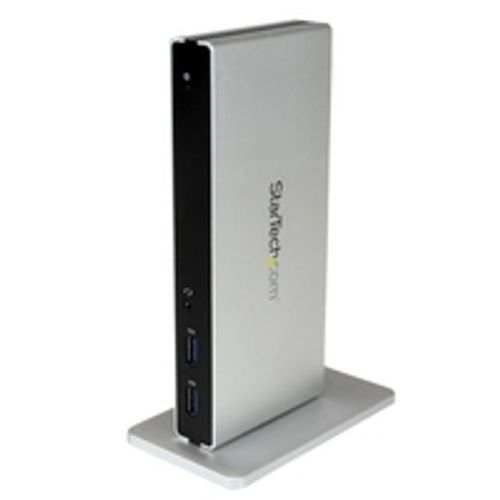

You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.
The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Dock your USB 3.0 equipped Mac or Windows laptop with support for several dual monitor configurations using the included video adapters
- Connect and charge your USB devices with 5x USB 3.0 ports, including two Fast-Charge USB ports
- Save space on your desktop by placing the dock in a vertical orientation with the included dock stand
This dual-monitor USB 3.0 docking station turns your laptop into a dual-monitor workstation with flexible setup options.
Display Flexibility
The dual-DVI docking station adds dual-monitor support to your workstation, with resolution support up to 2048x1152. With more screen space, you can simultaneously access multiple applications and reference material on one display while composing on the other. To ensure the USB 3.0 dock supports a variety of displays, two display adapters (DVI to VGA and DVI to HDMI) are included.
Powerful Connections and Fast Device Charging
Transform your laptop into a workstation that supports all of your peripherals. This docking station features five USB 3.0 (USB 3.1 Gen 1) ports. The two front-facing USB ports are USB fast-charge ports (USB Battery Charging Specification 1.2). These accessible ports charge your mobile devices faster than standard USB ports, with or without your laptop connected to the dock. The dock also has a GbE port, headset jack and separate 3.5 mm audio and mic ports, so you’ll have all the connections you need.
Save Desktop Space
You can free up valuable desk space by positioning the dock vertically on your work surface using the included (optional) stand.
The USB3SDOCKDD is backed by a 3-year StarTech.com warranty and free lifetime technical support.
The StarTech.com Advantage
- Dock your USB 3.0 equipped Mac or Windows laptop with support for several dual monitor configurations using the included video adapters
- Connect and charge your USB devices with 5x USB 3.0 ports, including two Fast-Charge USB ports
- Save space on your desktop by placing the dock in a vertical orientation with the included dock stand
