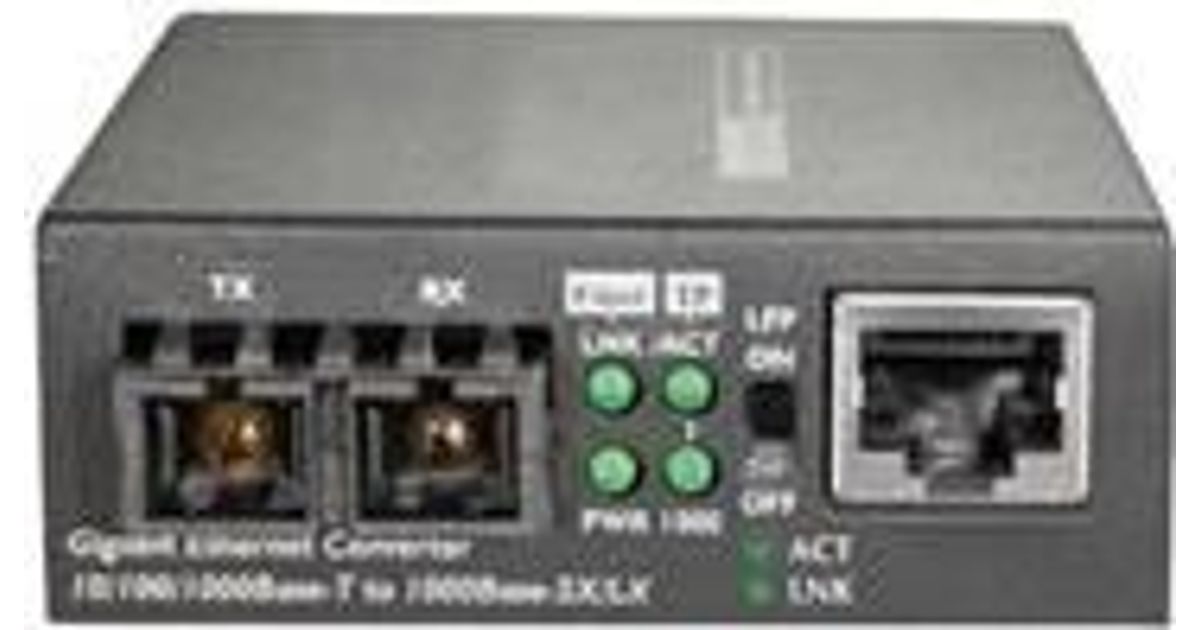

StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km
StarTech.com Gigabit Ethernet to SC Fiber Media Converter - 1000Base-LX - Single-mode - 10 km, 1000 Mbit/s, 10Base-T,100Base-TX,1000Base-T, 100Base-LX, IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x, Fast Ethernet, Gigabit Ethernet, 10,100,1000 Mbit/s
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 16488759 |
| EAN | 00065030878241 |
| Manufacturer part number | MCMGBSCSM10 |
| Features | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Fiber mode structure | Single-mode |
| Certification | CE, FCC |
| Input voltage | 100 - 240 V |
| Power plug type | Type N |
| Network | |
|---|---|
| Converter input interface | 10Base-T,100Base-TX,1000Base-T |
| Converter output interface | 100Base-LX |
| Ethernet interface type | Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Auto MDI/MDI-X | Y |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1Q,IEEE 802.3,IEEE 802.3ab,IEEE 802.3u,IEEE 802.3x |
| External power adapter | Y |
| Data transmission | |
|---|---|
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Store-and-forward | Y |
| Performance | |
|---|---|
| Duplex system | Full |
| Maximum transfer distance | 10000 m |
| Wavelength-division multiplexing (WDM) | N |
| Mean time between failures (MTBF) | 50000 h |
| Internal | N |
| Optical fiber | |
|---|---|
| Fiber optic connector | SC |
| Wavelength | 1310 nm |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Fiber ports quantity | 1 |
| Design | |
|---|---|
| LED indicators | Activity, Link, Power |
| Product colour | Black |
| Power | |
|---|---|
| Input current | 0.5 A |
| Output voltage | 5 V |
| Output current | 2.6 A |
| Weight & dimensions | |
|---|---|
| Width | 105 mm |
| Depth | 70 mm |
| Height | 26 mm |
| Weight | 196 g |
| Package weight | 560 g |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Packaging data | |
|---|---|
| Package width | 138 mm |
| Package depth | 285 mm |
| Package height | 66 mm |
| Quick installation guide | Y |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
Product Description
Convert and extend a Gigabit Ethernet connection up to 10 km over single-mode SC fiber
This fiber media converter converts and extends a Gigabit Ethernet fiber (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Converts and extends a Gigabit fiber (1000 Mbps) network over single-mode fiber on 1000BASE-LX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)
This fiber media converter converts and extends a Gigabit Ethernet fiber (1000 Mbps) network up to 10 km over single-mode fiber on 1000BASE-LX networks.
Extend your GbE network cost-effectively
The fiber media converter provides a cost-effective way to transparently convert copper to fiber, or fiber to copper, for connecting remote sub-networks to larger fiber-optic networks. Providing both SC fiber and RJ45 Ethernet ports, it integrates easily into a wide range of Gigabit Ethernet network infrastructures. The RJ45 port supports triple-speed (10/100/1000 BASE-T) auto-negotiation.
Reliable and scalable network connectivity
Supporting a maximum single-mode fiber cable distance of up to 10 km (6.2 mi.), the media converter delivers a simple and reliable solution for connecting Gigabit Ethernet networks to remote locations, while ensuring solid network performance. It provides optimum network scalability for connecting two or more Ethernet network nodes, for instance, connecting two buildings on the same campus or facility. The media converter also delivers high-speed bandwidth to meet the increasing demands of large-scale workgroups that require expansion of a Gigabit Ethernet network.
The MCMGBSCSM10 is backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Converts and extends a Gigabit fiber (1000 Mbps) network over single-mode fiber on 1000BASE-LX networks
- Provides a cost-effective Ethernet to fiber/copper to fiber link
- Supports a maximum distance of 10 km over single mode duplex fiber optic cable (SC connection)
