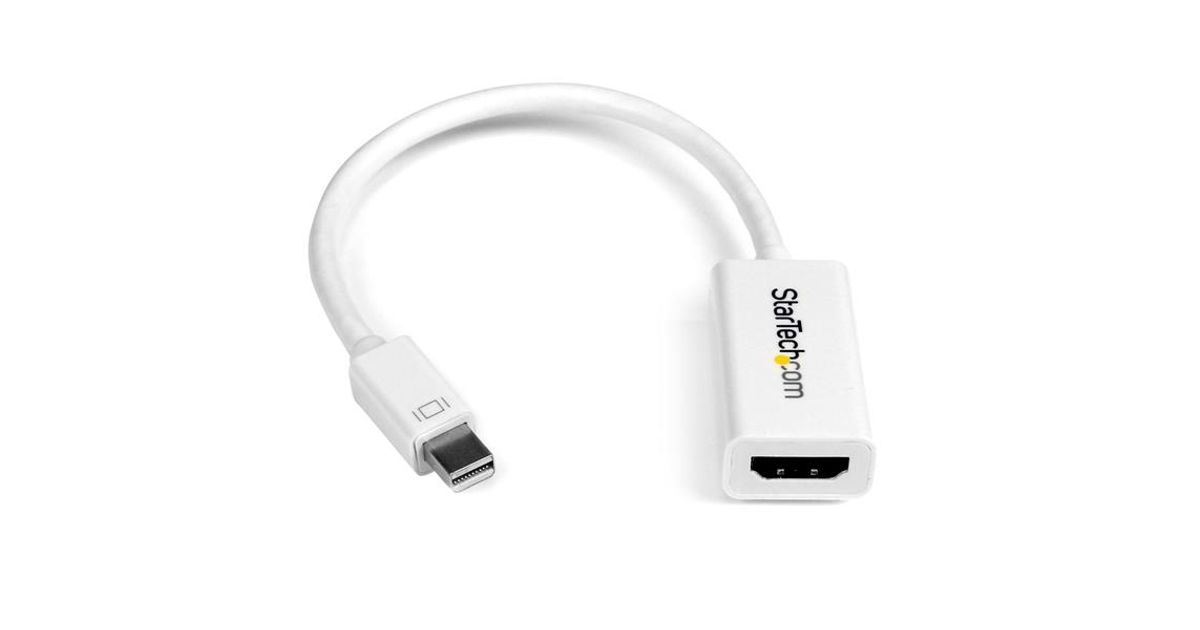

StarTech.com Mini DisplayPort to HDMI Adapter - Active mDP to HDMI Video Converter - 4K 30Hz - Mini DP or Thunderbolt 1/2 Mac/PC to HDMI Monitor/TV/Display - mDP 1.2 to HDMI Adapter Dongle - White
StarTech.com Mini DisplayPort to HDMI Adapter - Active mDP to HDMI Video Converter - 4K 30Hz - Mini DP or Thunderbolt 1/2 Mac/PC to HDMI Monitor/TV/Display - mDP 1.2 to HDMI Adapter Dongle - White, 0.15 m, Mini DisplayPort, HDMI, Male, Female, Straight
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 187477322 |
| EAN | 00012302569284 |
| Manufacturer part number | MDP2HD4KSW |
| Category | Video Cable Adapters |
| Features | |
|---|---|
| Cable length | 0.15 m |
| Connector 1 | Mini DisplayPort |
| Connector 2 | HDMI |
| Connector 1 gender | Male |
| Connector 2 gender | Female |
| Connector 1 form factor | Straight |
| Connector 2 form factor | Straight |
| HDCP | Y |
| HDCP version | 1.4 |
| DisplayPort version | 1.2 |
| DisplayPort Content Protection (DPCP) | Y |
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA), 3840 x 2160 |
| Supported video modes | 720p, 1080p, 2160p |
| Plug and Play | Y |
| Converter type | Active |
| Harmonized System (HS) code | 84733080 |
| Ports & interfaces | |
|---|---|
| HDMI version | 1.4 |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Display | |
|---|---|
| Maximum refresh rate | 30 Hz |
| Design | |
|---|---|
| Product colour | White |
| Audio | |
|---|---|
| Supported audio channels | 7.1 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -10 - 80 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Sustainability | |
|---|---|
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Weight | 16 g |
| Package weight | 22 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Package width | 103 mm |
| Package depth | 188 mm |
| Package height | 13 mm |
| Logistics data | |
|---|---|
| Master (outer) case width | 340 mm |
| Master (outer) case length | 505 mm |
| Master (outer) case height | 217 mm |
| Products per master (outer) case | 320 pc(s) |
| Performance | |
|---|---|
| Compatible products | Mac Book Pro / Mac Book Air |
Product Description
Connect an HDMI Display to a Single Mode Mini DisplayPort video sourceThe StarTech.com Advantage
