For illustrative purpose only

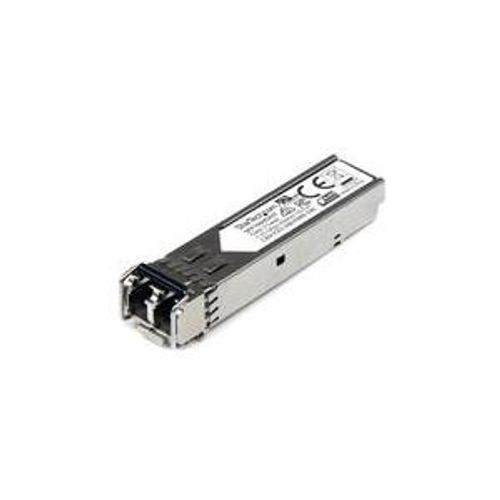

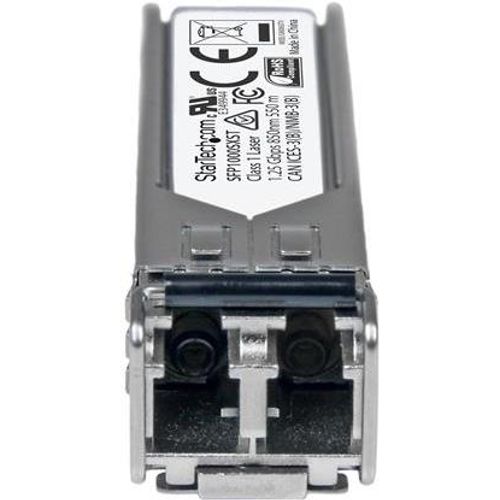

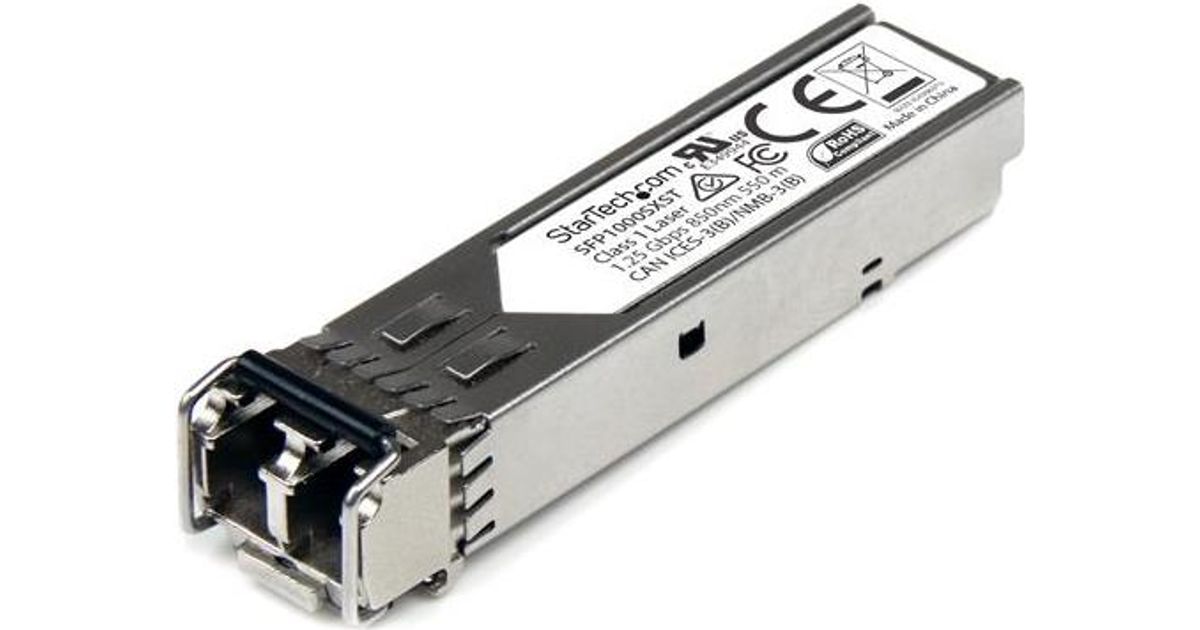

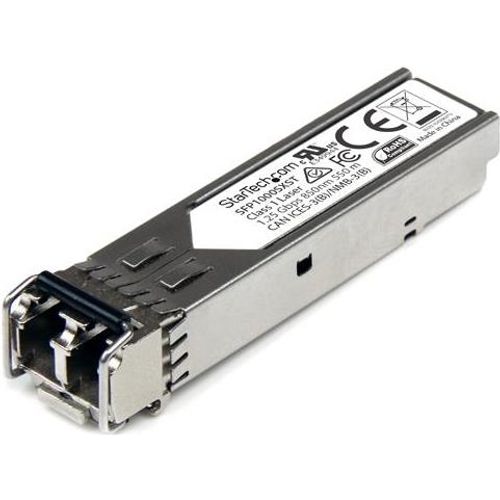

StarTech.com MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM
StarTech.com MSA Uncoded SFP Module - 1000BASE-SX - 1GbE Multi Mode Fiber (MMF) Optic Transceiver - 1GE Gigabit Ethernet SFP - LC 550m - 850nm - DDM, Fiber optic, 1250 Mbit/s, SFP, LC, SX, 550 m
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 165310918 |
| EAN | 00065030873352 |
| Manufacturer part number | SFP1000SXST |
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Multi-mode fiber (MMF) supported | Y |
| SFP transceiver standard | SX |
| Maximum transfer distance | 550 m |
| Duplex system | Full |
| Digital Diagnostics Monitoring (DDM) | Y |
| Wavelength-division multiplexing (WDM) | N |
| Hot-Plug support | Y |
| Features | |
|---|---|
| Maximum data transfer rate | 1250 Mbit/s |
| Certification | CE, FCC, UR |
| Ports & interfaces | |
|---|---|
| Interface type | SFP |
| Optical fiber | |
|---|---|
| Fiber optic connector | LC |
| Wavelength | 850 nm |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3z |
| Design | |
|---|---|
| Product colour | Silver |
| Housing material | Aluminium |
| Power | |
|---|---|
| Power consumption (typical) | 1 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Weight & dimensions | |
|---|---|
| Width | 13.9 mm |
| Depth | 58.4 mm |
| Height | 12.6 mm |
| Weight | 23 g |
| Package weight | 53 g |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
| Package width | 90 mm |
| Package depth | 120 mm |
| Package height | 30 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Logistics data | |
|---|---|
| Master (outer) case width | 25 cm |
| Master (outer) case length | 30 cm |
| Master (outer) case height | 20 cm |
| Products per master (outer) case | 36 pc(s) |
Product Description
1000 Mbps (1 Gbps) | Multi Mode Fiber | LC | 550 m (1804 ft) | Lifetime Warranty
The SFP1000SXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 550 m (1804 ft)
Power Consumption: Less than 1 Watt
DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% MSA UNCODED SFP TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-SX
- 1Gbps
The SFP1000SXST is an MSA compliant fiber SFP transceiver that’s designed, programmed and tested to work with 1000BASE-SX compatible MSA switches and routers. The SFP transceiver module supports a maximum distance of up to 550 m (1804 ft) and delivers dependable 1 GbE connectivity over fiber cabling.
Technical Specifications:
Wavelength: 850nm
Maximum Data Transfer Rate: 1.25 Gbps
Type: Multi Mode Fiber
Connection Type: LC Connector
Maximum Transfer Distance: 550 m (1804 ft)
Power Consumption: Less than 1 Watt
DDM: Yes
This SFP fiber module is hot-swappable, making upgrades and replacements seamless by minimizing network disruptions.
StarTech.com SFPs
All StarTech.com SFP & SFP+ transceiver modules are backed by a lifetime warranty and free lifetime multilingual technical support. StarTech.com offers a wide variety of SFP modules and direct-attach SFP Cables, providing the convenience and reliability you need to ensure dependable network performance.
The StarTech.com Advantage
- 100% MSA UNCODED SFP TRANSCEIVER: Designed, programmed and tested to work with compatible MSA Compliant switches and routers to deliver dependable 1GbE connectivity
- TECHNICAL SPECS: 1000BASE-SX
- 1Gbps
