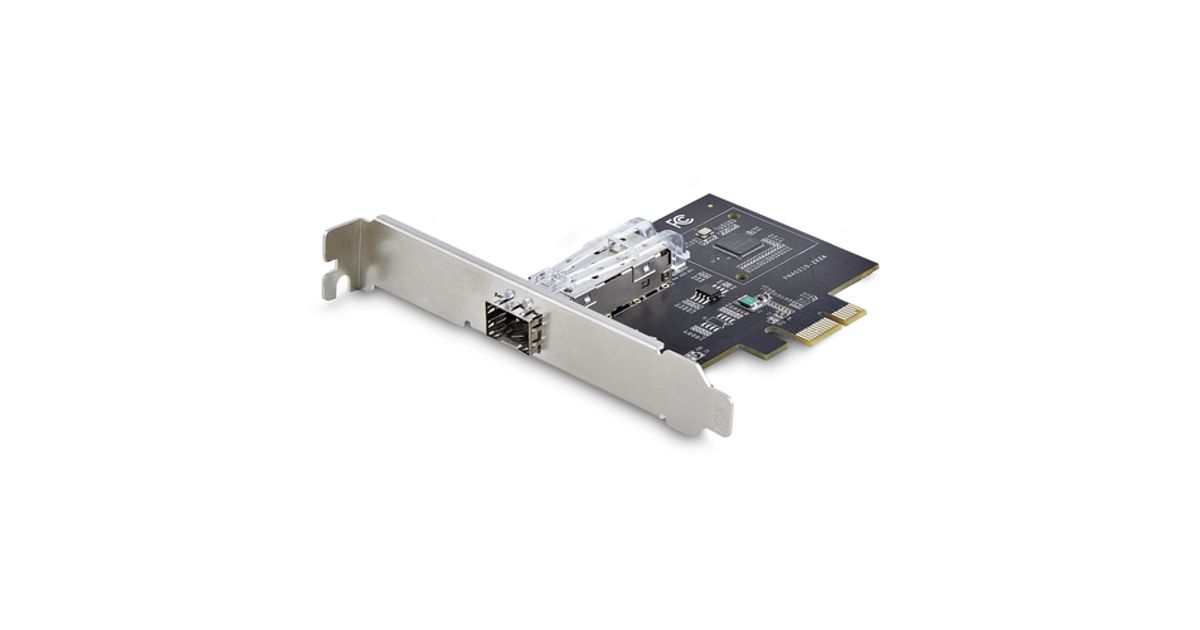

StarTech.com P011GI-NETWORK-CARD network card Internal 1000 Mbit/s
StarTech.com 1-Port GbE SFP Network Card, PCIe 2.1 x1, Intel I210-IS, 1GbE Controller, 1000BASE Copper/Fiber Optic, Single-Port Gigabit Ethernet NIC, Desktop/Server Backplanes - Windows and Linux Compatible, Internal, Wired, PCI Express, Fiber, 1000 Mbit/s, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 5710192440 |
| EAN | 00065030899987 |
| Manufacturer part number | P011GI-NETWORK-CARD |
| Category | Võrgukaardid |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | PCI Express |
| Interface | Fiber |
| Fiber ports quantity | 1 |
| PCI version | 2.1 |
| Optical fiber | |
|---|---|
| Fiber optic connector | SFP |
| Features | |
|---|---|
| Maximum data transfer rate | 1000 Mbit/s |
| Full duplex | Yes |
| Linux operating systems supported | Yes |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1AX, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.3ap, IEEE 802.3az, IEEE 802.3z |
| Network | |
|---|---|
| Auto MDIX IEEE | Yes |
| Data transmission | |
|---|---|
| Jumbo frames support | Yes |
| Jumbo frames | 9000 |
| Protocols | |
|---|---|
| Supported network protocols | IPv4, IPv6, TCP/UDP |
| Performance | |
|---|---|
| Internal | Yes |
| Design | |
|---|---|
| Component for | PC |
| Product colour | Black |
| LED indicators | Speed, Status |
| Power | |
|---|---|
| Power consumption (typical) | 0.6 W |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2012, Windows Server 2012 R2, Windows Server 2016, Windows Server 2019, Windows Server 2022 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -10 - 70 °C |
| Operating relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 67 mm |
| Depth | 87 mm |
| Height | 16 mm |
| Weight | 40 g |
| Package weight | 47.5 g |
| Packaging data | |
|---|---|
| Package width | 170 mm |
| Package depth | 142 mm |
| Package height | 30 mm |
| Mounting brackets included | Yes |
| Quick installation guide | Yes |
| Logistics data | |
|---|---|
| Master (outer) case width | 605 mm |
| Master (outer) case length | 325 mm |
| Master (outer) case height | 385 mm |
| Products per master (outer) case | 80 pc(s) |
Product Description
Add a fiber/copper GbE SFP transceiver or Direct Attach Cable to a workstation or serverAdd a 1GbE SFP module to a PCI Express (PCIe) 2.1 x1 (or higher) slot in an IT Administrator workstation or server backplane, using this 1-Port SFP Network Controller.High Performance Intel ChipsetThe network controller features an Intel I210 chip known for its reliability and high-performance capabilities, offering low-latency and low CPU utilization, ensuring smooth and efficient network data transfer, which is critical for business applications and services. Support for VMDq, SR-IOV, and Intel® VT-c technologies allow for enhanced virtual machine performance, reduced CPU overhead, and improved network virtualization capabilities. The PCIe network card supports PXE boot, enabling centralized operating system deployment and updates. It also features 9K jumbo frame support, reducing packet overhead for improved data transmission efficiency. VLAN tagging support allows for efficient network management and segmentation.Hardware and Operating System CompatibilityThe network interface controller connects to an available x1 PCI Express 2.1 (or higher) expansion slot. It is compatible with Windows Server 2012 and newer, Windows 10 and newer, Linux, VMware ESXi 7.x, and Microsoft Hyper-V. This NIC is compatible with both MSA-compliant and branded 1GB SFP modules, as well as direct attach copper cables (DACC). Includes a low-profile bracket designed for small form factor systems.Flexible Network ConnectionsThe card features an SFP slot for interchangeable SFP modules. Select fiber transceiver modules that best suit the network needs of the application, based on the distance and connector type. StarTech.com offers a wide variety of SFP transceiver modules to meet many GbE network applications.The StarTech.com Advantage
