For illustrative purpose only

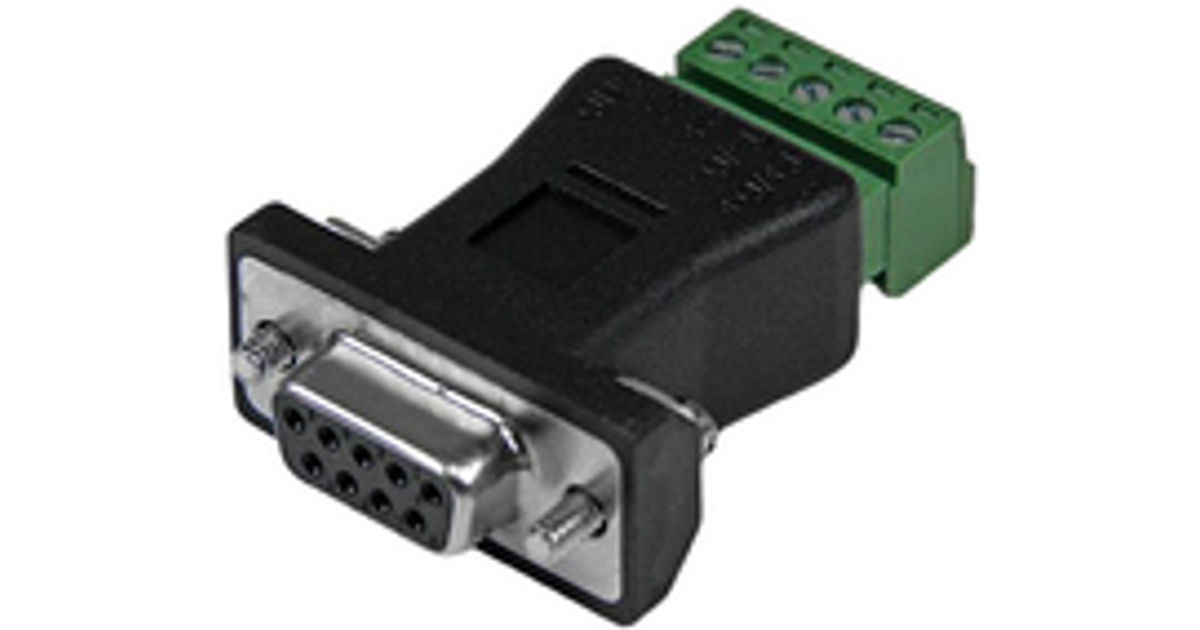

StarTech.com RS422 RS485 Serial DB9 to Terminal Block Adapter
StarTech.com RS422 RS485 Serial DB9 to Terminal Block Adapter, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 164553748 |
| EAN | 06136005238514 |
| Manufacturer part number | DB92422 |
| Category | Serial cables and adapters |
| Performance | |
|---|---|
| Connector(s) | RS422/RS485 DB9 |
| Design | |
|---|---|
| Product colour | Black |
| Weight & dimensions | |
|---|---|
| Weight | 20 g |
| Package weight | 53 g |
| Packaging data | |
|---|---|
| Package width | 102 mm |
| Package depth | 144 mm |
| Package height | 35 mm |
| Other features | |
|---|---|
| Dimensions (WxDxH) | 34.2 x 48.9 x 15.4 mm |
Product Description
Convert an RS-422 or RS-485 DB 9 male serial connector to a terminal block connector
The DB92422 DB 9 to Terminal Block adapter converts an RS-422 or RS-485 DB 9 male serial connector to a terminal block connector.
The 5-pin 3.5mm Terminal Block connector supports screw-type wiring to meet the standard for industrial wiring applications.
Backed by Lifetime warranty.
The StarTech.com Advantage
- Converts a DB9 male RS422/485 port to a 5 pin terminal block
- Supports four wire RS422, RS485, and two wire RS485 modes
- Supports 3.5mm 5 pin terminal blocks
The DB92422 DB 9 to Terminal Block adapter converts an RS-422 or RS-485 DB 9 male serial connector to a terminal block connector.
The 5-pin 3.5mm Terminal Block connector supports screw-type wiring to meet the standard for industrial wiring applications.
Backed by Lifetime warranty.
The StarTech.com Advantage
- Converts a DB9 male RS422/485 port to a 5 pin terminal block
- Supports four wire RS422, RS485, and two wire RS485 modes
- Supports 3.5mm 5 pin terminal blocks
