StarTech.com USB 3.0 to Dual Port Gigabit Ethernet Adapter NIC w/ USB Port
StarTech.com USB 3.0 to Dual Port Gigabit Ethernet Adapter NIC w/ USB Port, Wired, USB, Ethernet, 5000 Mbit/s, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 162041960 |
| EAN | 05054814458330 |
| Manufacturer part number | USB32000SPT |
| Category | Network adapters |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | USB |
| Interface | Ethernet |
| Ethernet LAN (RJ-45) ports | 2 |
| USB ports quantity | 1 |
| Features | |
|---|---|
| USB version | 3.2 Gen 1 (3.1 Gen 1) |
| Maximum data transfer rate | 5000 Mbit/s |
| Certification | RoHS, CE, FC |
| Linux operating systems supported | Y |
| Cable length | 0.203 m |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1Q,IEEE 802.3ab,IEEE 802.3az,IEEE 802.3i,IEEE 802.3u |
| Compatible operating systems | - Windows 8 (32/64bit), 7 (32/64), Vista(32/64), XP(32/64) - Windows Server 2008 R2, 2003(32/64) - Mac OS 10.6 - 10.8 - Linux Kernel 2.6.14 - 3.5.0 |
| Status LED indicator | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000BaseT(X) |
| Auto MDIX IEEE | Y |
| VLAN tagging | Y |
| Maximum operating distance | 100 m |
| Data transmission | |
|---|---|
| Jumbo frames support | Y |
| Jumbo frames | 4000 |
| Performance | |
|---|---|
| Internal | N |
| Chipset | ASIX - AX88179, VIA/VLI - VL811 |
| Design | |
|---|---|
| Component for | PC/notebook |
| Product colour | Black |
| LED indicators | Y |
| Housing material | Plastic |
| Power | |
|---|---|
| USB powered | Y |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.12 Sierra, Mac OS X 10.13 High Sierra, Mac OS X 10.14 Mojave, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion, Mac OS X 10.9 Mavericks |
| Drivers included | Y |
| System requirements | |
|---|---|
| Server operating systems supported | Windows Server 2003,Windows Server 2008 R2,Windows Server 2012,Windows Server 2012 R2,Windows Server 2016,Windows Server 2019 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 5 - 95% |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 60 mm |
| Depth | 75 mm |
| Height | 16 mm |
| Weight | 59 g |
| Package weight | 154 g |
| Packaging data | |
|---|---|
| Package width | 171 mm |
| Package depth | 141 mm |
| Package height | 31 mm |
| Packaging content | |
|---|---|
| Manual | Y |
Product Description

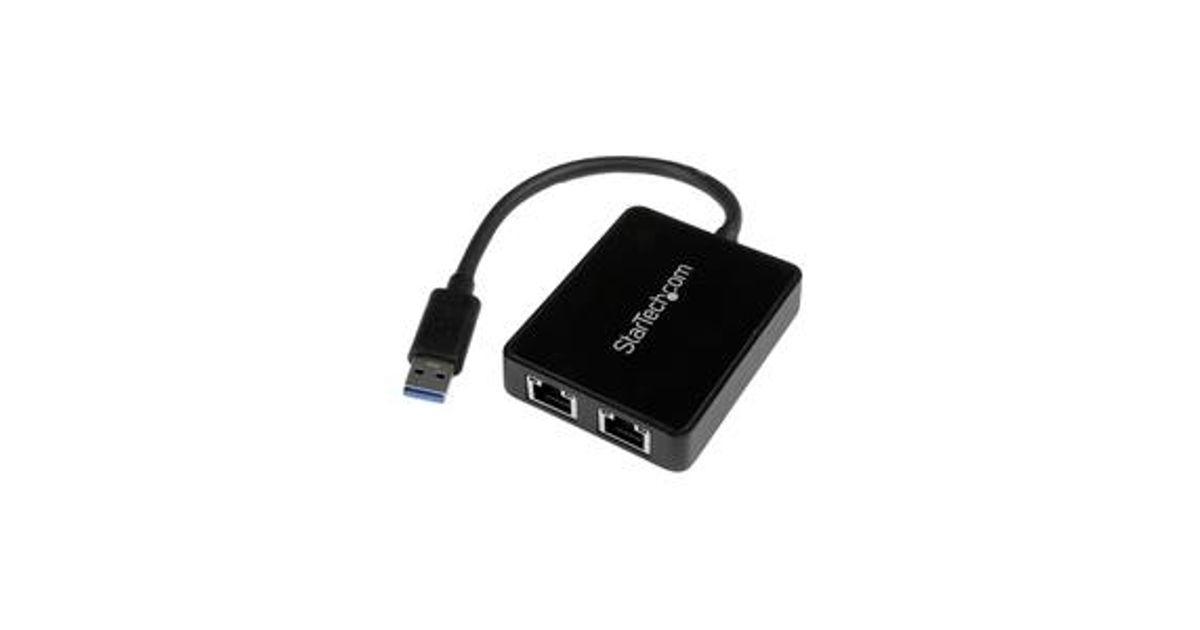

Add two Gigabit Ethernet ports and a USB 3.0 pass-through port to your laptop through a single USB 3.0 port
The USB32000SPT USB 3.0 to Dual Port Gigabit Ethernet Adapter lets you add two Gigabit Ethernet ports to your laptop or Ultrabook computer through a single USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with external storage or other peripherals. Each RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.
This 2-port USB LAN adapter is a versatile solution for connecting to two separate physical networks simultaneously, leveraging the 5 Gbps speed of USB 3.0 to provide dedicated gigabit bandwidth to each port. The dual USB NIC is also ideal for providing dedicated physical network interfaces to virtual machine configurations. Great for IT administrators that require dual-homed or multi-homed host systems.
The USB 3.0 NIC supports IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU, as well as Jumbo Frames, full-duplex operation with 802.3x flow control, and VLAN tagging for an efficient and full-featured USB network adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Connect to two different networks simultaneously, through a single USB 3.0 port

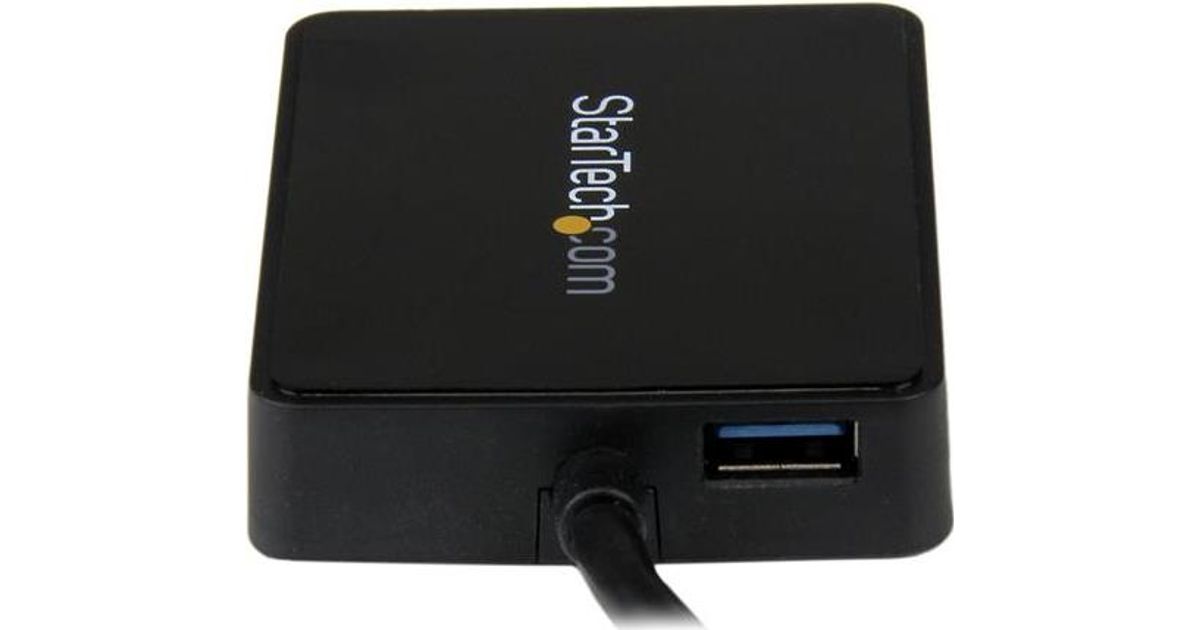

- Conserve available USB 3.0 ports with USB pass-through
The USB32000SPT USB 3.0 to Dual Port Gigabit Ethernet Adapter lets you add two Gigabit Ethernet ports to your laptop or Ultrabook computer through a single USB 3.0 port, and features an integrated USB 3.0 pass-through port that keeps your USB port available for use with external storage or other peripherals. Each RJ45 port supports 10/100/1000 Mbps Ethernet and is fully compatible with IEEE 802.3i/u/ab standards.
This 2-port USB LAN adapter is a versatile solution for connecting to two separate physical networks simultaneously, leveraging the 5 Gbps speed of USB 3.0 to provide dedicated gigabit bandwidth to each port. The dual USB NIC is also ideal for providing dedicated physical network interfaces to virtual machine configurations. Great for IT administrators that require dual-homed or multi-homed host systems.
The USB 3.0 NIC supports IPv4/IPv6 packet Checksum Offload Engine (COE) and TCP large send offload to reduce the load on your CPU, as well as Jumbo Frames, full-duplex operation with 802.3x flow control, and VLAN tagging for an efficient and full-featured USB network adapter.
Backed by a StarTech.com 2-year warranty and free lifetime technical support.
The StarTech.com Advantage
- Connect to two different networks simultaneously, through a single USB 3.0 port
- Conserve available USB 3.0 ports with USB pass-through
