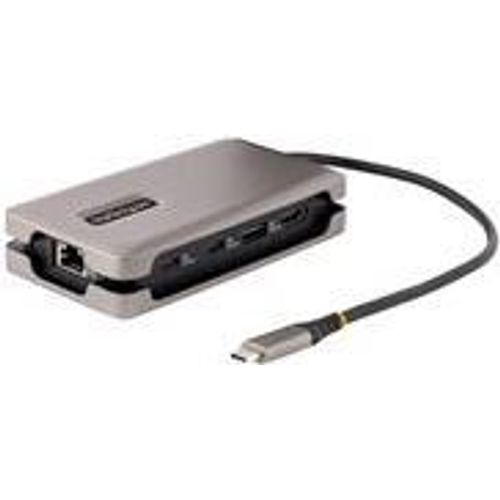

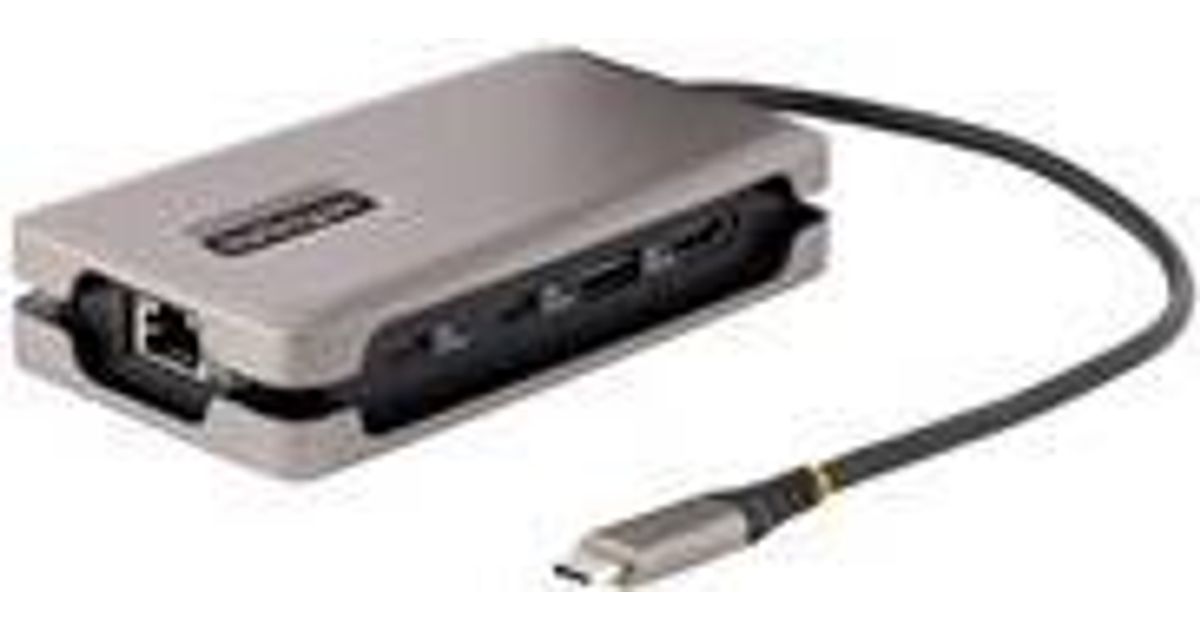

StarTech.com USB-C Multiport Adapter, 4K 60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through, Mini Travel Dock, 12"/30cm Cable, Laptop Docking Station
StarTech.com USB-C Multiport Adapter, 4K 60Hz HDMI 2.0b, HDR, USB 3.2 Gen 2 10Gbps Hub (2xUSB-C, 1xUSB-A), 100W PD Pass-Through, Mini Travel Dock, 12"/30cm Cable, Laptop Docking Station, Wired, USB 3.2 Gen 2 (3.1 Gen 2) Type-C, 100 W, 10,100,1000 Mbit/s, Grey, 10 Gbit/s
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | StarTech.com |
| Product code | 167277047 |
| EAN | 00065030891981 |
| Manufacturer part number | DKT31CH2CPD3 |
| Category | Dockingstations |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
| Ports & interfaces | |
|---|---|
| Host interface | USB 3.2 Gen 2 (3.1 Gen 2) Type-C |
| HDMI ports quantity | 1 |
| Microphone in | N |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity | 1 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity | 2 |
| USB Power Delivery up to | 100 W |
| USB Type-C DisplayPort Alternate Mode | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Rear panel I/O ports | |
|---|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity | 1 |
| Features | |
|---|---|
| USB Power Delivery | Y |
| USB Power Delivery revision | 3.0 |
| Full duplex | Y |
| Data transfer rate | 10 Gbit/s |
| UASP support | Y |
| Linux operating systems supported | Y |
| Cable length | 0.3 m |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Design | |
|---|---|
| Product colour | Grey |
| LED indicators | Y |
| Housing material | Plastic |
| Storage | |
|---|---|
| Card reader integrated | N |
| Display | |
|---|---|
| HD type | 4K Ultra HD |
| Maximum refresh rate | 60 Hz |
| High Dynamic Range (HDR) supported | Y |
| Performance | |
|---|---|
| Maximum digital resolution | 3840 x 2160 pixels |
| Power source type | USB |
| Chipset | Realtek - RTD2172L, Realtek - RTL8153B, VIA - VL822, VIA - VL103 |
| Power | |
|---|---|
| Power consumption (typical) | 15 W |
| Software | |
|---|---|
| Mac operating systems supported | Mac OS X 10.15 Catalina, Mac OS X 10.15.3 Catalina, Mac OS X 11.0 Big Sur, Mac OS X 12.0 Monterey |
| System requirements | |
|---|---|
| Mobile operating systems supported | Android, iPadOS |
| Other features | |
|---|---|
| Other operating systems supported | Chrome |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Storage temperature (T-T) | -20 - 70 °C |
| Operating relative humidity (H-H) | 0 - 85% |
| Sustainability | |
|---|---|
| Sustainability compliance | Y |
| Sustainability certificates | CE, RoHS |
| Weight & dimensions | |
|---|---|
| Width | 64 mm |
| Depth | 124 mm |
| Height | 26 mm |
| Weight | 93 g |
| Package weight | 149 g |
| Packaging data | |
|---|---|
| Package width | 143 mm |
| Package depth | 172 mm |
| Package height | 30 mm |
| Logistics data | |
|---|---|
| Products per master (outer) case | 70 pc(s) |
| Master (outer) case width | 465 mm |
| Master (outer) case length | 335 mm |
| Master (outer) case height | 440 mm |
Product Description
4K 60Hz HDMI | 100W PD Pass-Through | 12" (30cm) Cable | 3-Port USB Hub (10Gbps)This USB-C multiport adapter with DP 1.4 supports 4K 60Hz HDMI® (HDR) and turns a USB-C™ laptop or tablet into a workstation, anywhere you go.Enhance ProductivityThe portable docking station provides 4K 60Hz HDMI video output, two USB 3.2 Gen 2 Type-C (10Gbps) ports, one USB 3.2 Gen 2 Type-A (10Gbps) port, and a Gigabit Ethernet port (PXE and WoL support) all through one connection to your laptop's USB-C or Thunderbolt 3/4™ port. A USB-C DisplayPort 1.4 Alt-Mode port is required for 4K 60Hz HDMI output.Host ConnectionMaximum ResolutionDP 1.4 Alternate ModeUp to 4K 60HzDP 1.2 Alternate ModeUp to 4K 30HzConnect and Charge Your USB DevicesThe USB hub features two USB-C (10Gbps) ports and one USB-A (10Gbps) port for connecting up to three USB peripherals. The USB PD pass-through port enables charging of the host laptop. USB PD is only available when a USB-C power adapter is connected to the PD pass-through port. Connect a USB-C Power Adapter to use as a standalone USB peripheral charger. The extra-long attached 12inch (30cm) USB-C host cable enables an extended reach for setup flexibility.Portable ConnectivityFor use while travelling, the USB-C adapter can operate bus-powered alone, or with a USB-C power adapter to enable laptop and peripheral charging. The docking station is lightweight and features a built-in wraparound USB-C host cable.Enhance Productivity and Device Management with the StarTech.com Connectivity Tools ApplicationDeveloped to improve performance and security, StarTech.com Connectivity Tools is the only software suite on the market that works with a wide range of IT connectivity accessories. The software suite includes:• Advanced Windows Layout Utility: Setup and save custom windows layouts.• Mac Address Pass-Through Utility: To improve network security.• USB Event Monitoring Utility: To track and log connected USB devices• Wi-Fi Auto Switch Utility: Enabling users to quickly access faster network speeds via wired LAN.For more information and to download the StarTech.com Connectivity Tools application, please visit: www.startech.com/connectivity-toolsThis product is backed for 3-years, including free lifetime 24/5 multi-lingual technical assistance.The StarTech.com Advantage
