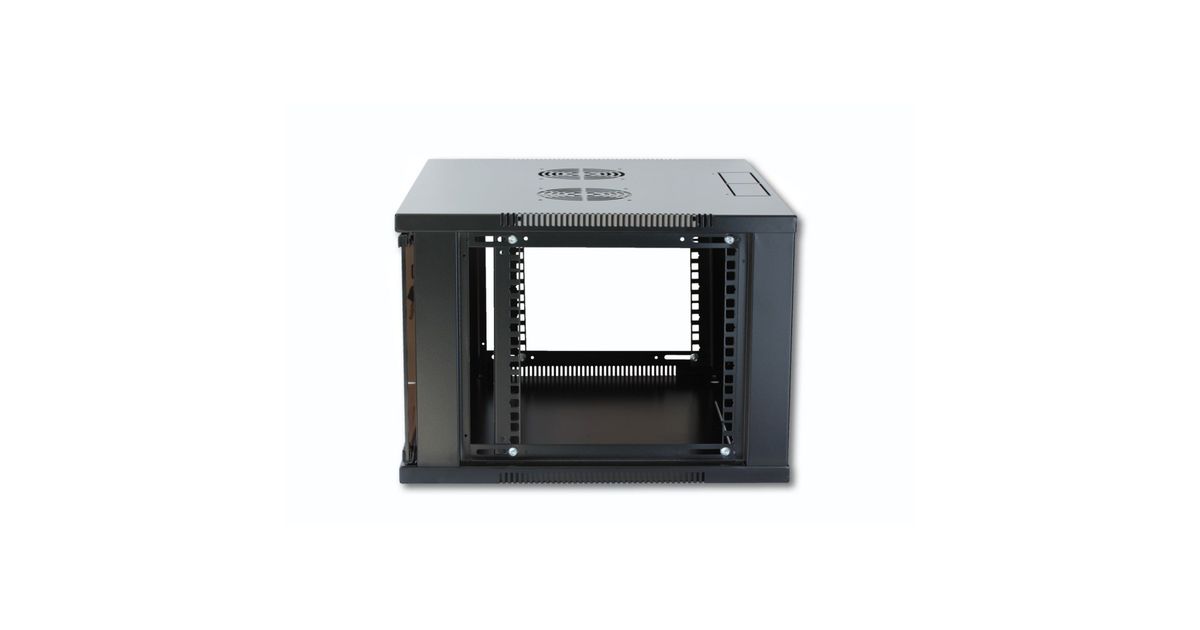

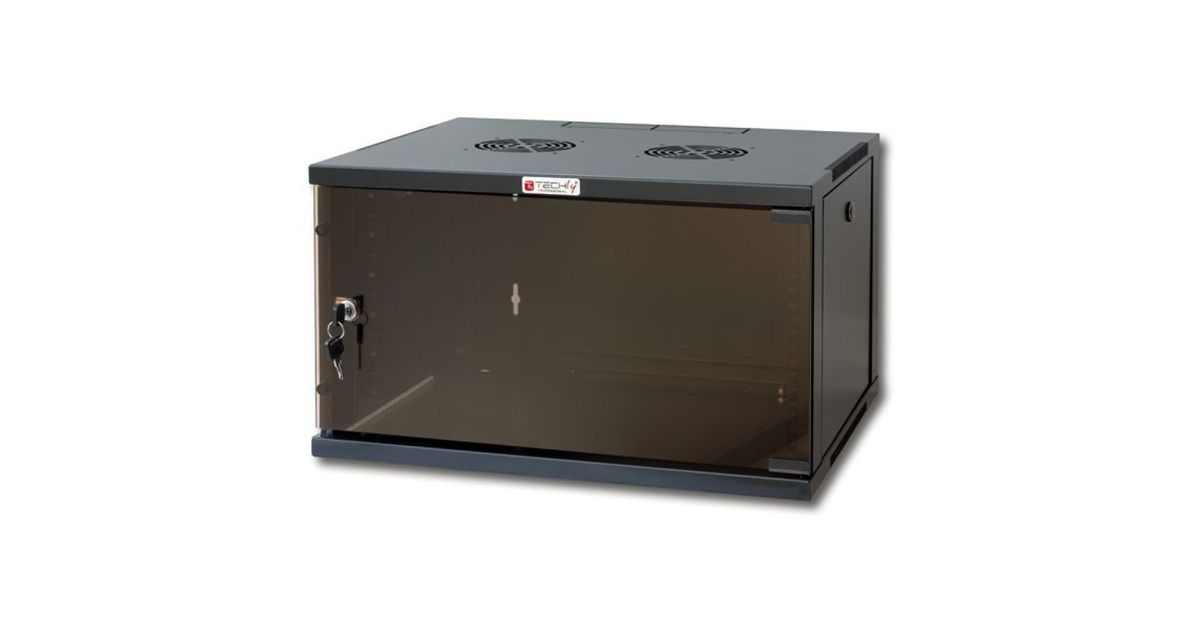

Techly 19" Wall Network Rack 9U Depth 450 Black Assembled I-CASE ER-1009B45
Techly 19" Wall Network Rack 9U Depth 450 Black Assembled I-CASE ER-1009B45, Wall mounted rack, 9U, 50 kg, Key lock, Adjustable feet, Cable management
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Techly |
| Product code | 719162215 |
| EAN | 08051128101577 |
| Manufacturer part number | I-CASE ER-1009B45 |
| Design | |
|---|---|
| Rack capacity | 9U |
| Maximum weight capacity | 50 kg |
| Product colour | Black |
| Cooling type | Active |
| Number of fans | 2 fan(s) |
| Cable management | Y |
| Door opening angle | 180° |
| International Protection (IP) code | IP20 |
| Reversible doors | Y |
| Features | |
|---|---|
| Type | Wall mounted rack |
| Material | Steel |
| Front door construction | Glass |
| Removable back door | N |
| Removable front door | N |
| Removable side panels | Y |
| Side panel style | Blind |
| Back door style | Blind |
| Front door style | Glass door |
| Key lock | Y |
| Back door key lock | N |
| Front door key lock | Y |
| Side panel key lock | Y |
| Adjustable mounting rails | Y |
| Back uprights | Adjustable |
| Front uprights | Adjustable |
| Castor wheels | N |
| Locking points | 1 |
| Assembly required | N |
| Cable entry point | Y |
| Certification | ISO 9001:2008 |
| Ergonomics | |
|---|---|
| Adjustable feet | Y |
| Performance | |
|---|---|
| Fan diameter | 12 cm |
| Packaging content | |
|---|---|
| Dusting brush | N |
| Mounting kit | Y |
| Other features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Weight & dimensions | |
|---|---|
| Width | 540 mm |
| Depth | 450 mm |
| Height | 450 mm |
| Inner depth | 305 mm |
| Weight | 16.3 kg |
| Mounting depth (max) | 30.5 cm |
| Packaging data | |
|---|---|
| Nuts included | Y |
| Number of nuts | 10 |
| Plinth panel | N |
| Grounding kit | N |
| Logistics data | |
|---|---|
| Warranty period | 15 year(s) |
Product Description
Techly Professional presents this series of Super Eco rack cabinets, the best solution for structured cabling in small data networks and home installations. Those cabinets, thanks to their features are SUPER VERSATILE cabinets:
- Robustness: Solid structure with 1.0 mm cold rolled steel structure ensures static load up to 50 kg.
- Effectiveness: a reliable quality product but with at a very competitive price.

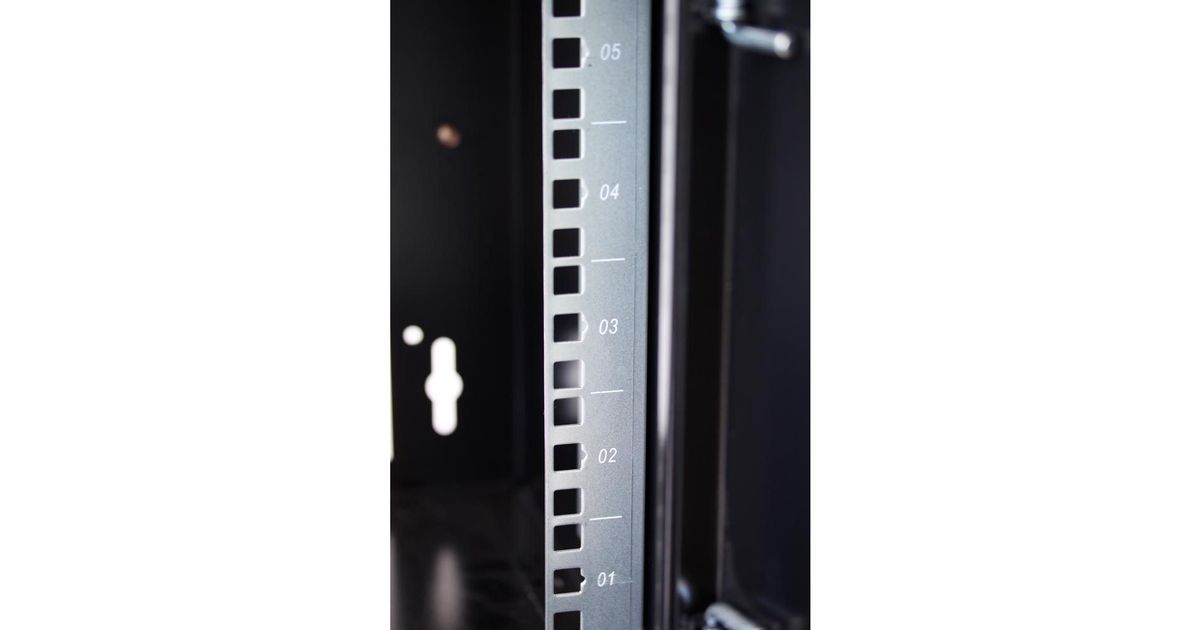

- Versatility: base and top are designed for installation of ventilation unit and are provided with pre-cut profiles for cable entry. Including 19" front and rear rails with scale; with removable side panels.

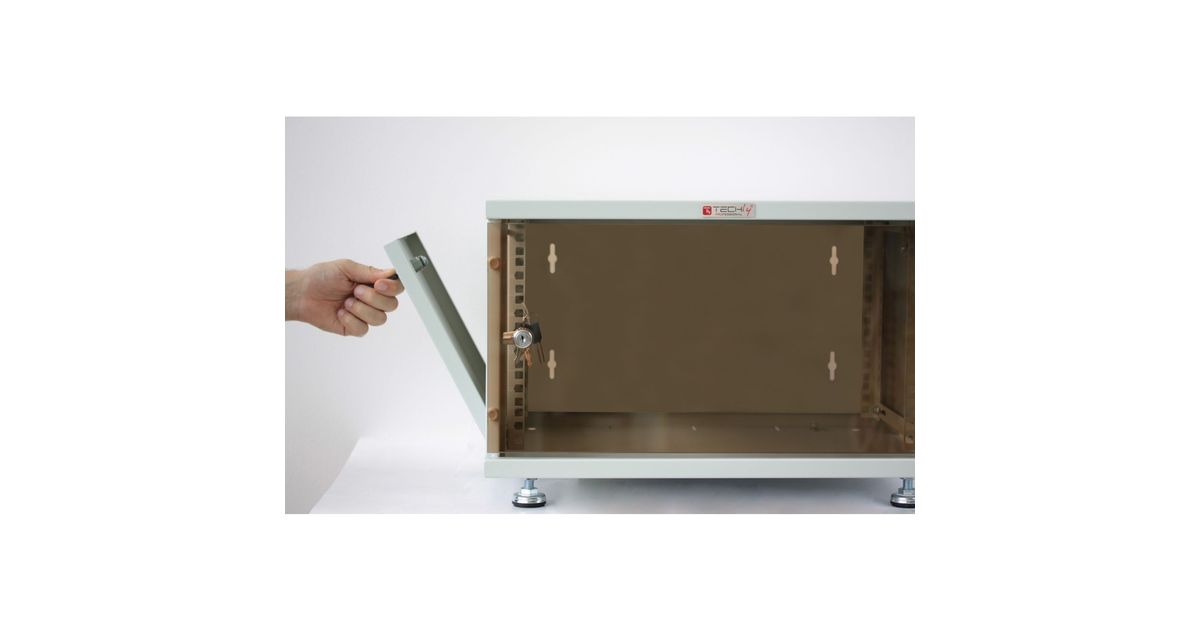

- Safety: Front door and side panels with key lock.
- Robustness: Solid structure with 1.0 mm cold rolled steel structure ensures static load up to 50 kg.
- Effectiveness: a reliable quality product but with at a very competitive price.
- Versatility: base and top are designed for installation of ventilation unit and are provided with pre-cut profiles for cable entry. Including 19" front and rear rails with scale; with removable side panels.
- Safety: Front door and side panels with key lock.
