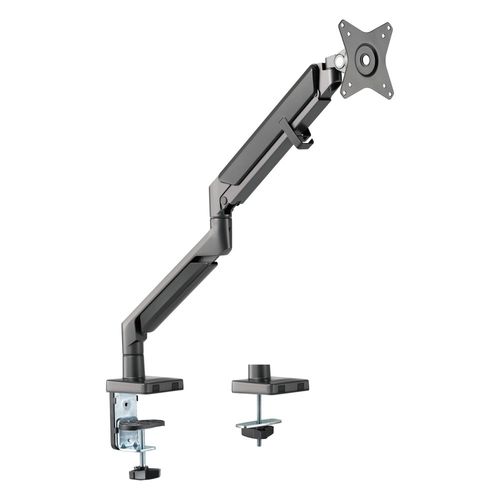

Techly ICA-LCD 3712 monitor mount / stand 81.3 cm (32") Clamp Grey
Techly ICA-LCD 3712, Clamp, 9 kg, 43.2 cm (17"), 81.3 cm (32"), 100 x 100 mm, Grey
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Techly |
| Product code | 187480471 |
| EAN | 08059018361193 |
| Manufacturer part number | ICA-LCD 3712 |
| Category | Monitor accessories |
| Design | |
|---|---|
| Maximum weight capacity | 9 kg |
| Mounting | Clamp |
| Cable management | Y |
| Product colour | Grey |
| Housing material | Aluminium, Plastic, Steel |
| Anti-theft function | N |
| Features | |
|---|---|
| Maximum screen size | 81.3 cm (32") |
| Panel mounting interface | 75 x 75,100 x 100 mm |
| Mounting | |
|---|---|
| Mounting type | Desk |
| Minimum VESA mount | 75 x 75 mm |
| Maximum VESA mount | 100 x 100 mm |
| Number of displays supported | 1 |

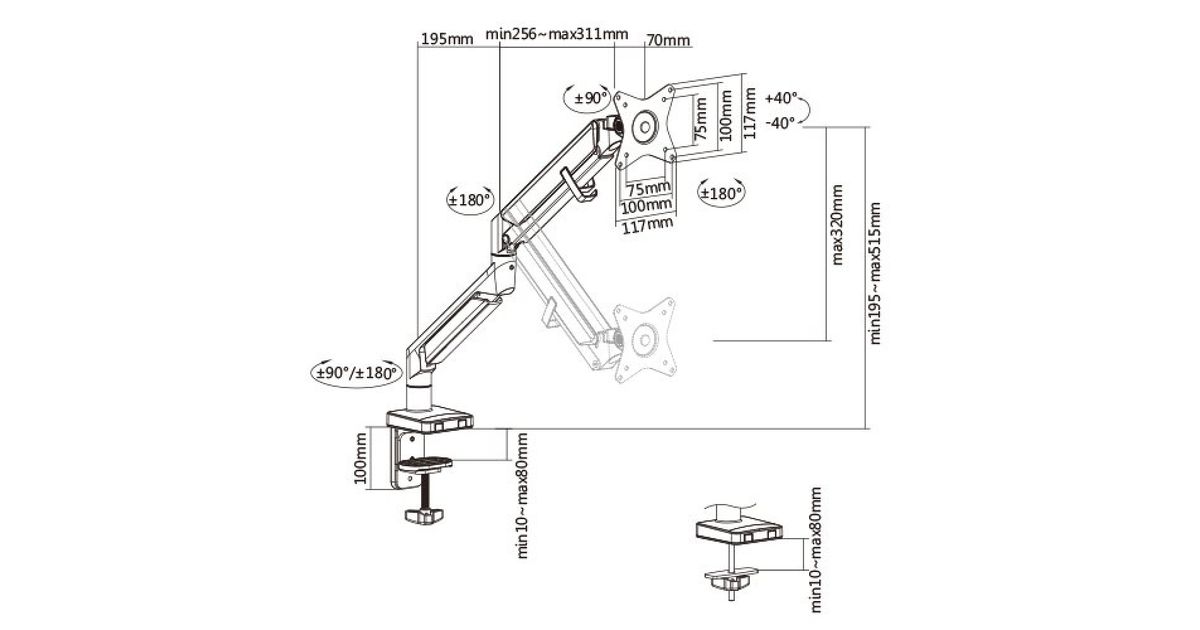

| Extension arm (max) | 50.6 cm |
| Desk thickness (min) | 1 cm |
| Desk thickness (max) | 8 cm |
| Ergonomics | |
|---|---|
| Minimum screen size | 43.2 cm (17") |
| Tiltable | Y |
| Tilt angle range | -40 - 40° |
| Angle of rotation | 180° |
| Number of arms | 1 |
| Rotating | Y |
| Performance | |
|---|---|
| Swivel angle range | -90 - 90° |
| Logistics data | |
|---|---|
| Warranty period | 10 year(s) |
| Products per master (outer) case | 6 pc(s) |
| Weight & dimensions | |
|---|---|
| Width | 117 mm |
| Depth | 560 mm |
| Height | 695 mm |
| Weight | 4.09 kg |
| Packaging content | |
|---|---|
| Clamp included | Y |
| Mounting kit | Y |
| Manual | Y |
| Other features | |
|---|---|
| VESA mount included | Y |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
Product Description
The ICA-LCD 3712 Epic Gas Spring Monitor Arm moves the user into a new era of viewing comfort and positioning ease. The ICA-LCD 3712 has ability to move monitors with little to no effort and the quality-tested internal gas spring mechanism firmly holds the monitor in place once in position. A built-in 180 degrees rotation stop prevents the arm from entering rear desk space, perfect for adjoining desks and cubicles.
- Desk arm with gas spring for LED display, available with clamp base or grommet base
- Smooth extension and full-motion for tilt and rotation to achieve ideal viewing angle
- Integrated cable management system; with quick release VESA plate
- Desk arm with gas spring for LED display, available with clamp base or grommet base
- Smooth extension and full-motion for tilt and rotation to achieve ideal viewing angle
- Integrated cable management system; with quick release VESA plate
