For illustrative purpose only

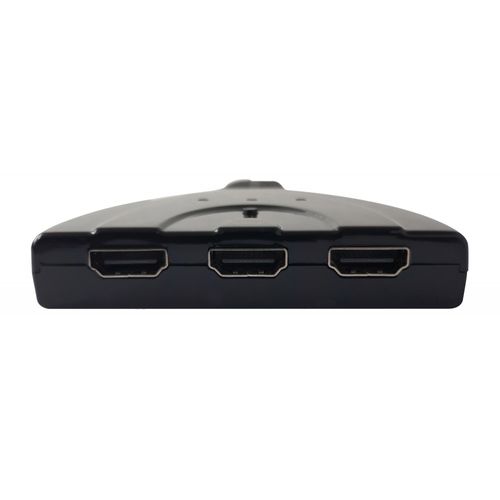

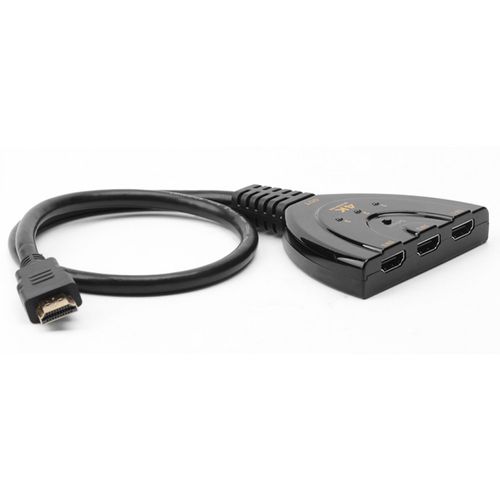

Techly IDATA HDMI-3F30 video switch
Techly IDATA HDMI-3F30, HDMI, 1.4b, Black, 30 Hz, 2160p, 3.4 Gbit/s
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Techly |
| Product code | 187480414 |
| EAN | 08059018360042 |
| Manufacturer part number | IDATA HDMI-3F30 |
| Category | Other AV & electronics |
| Ports & interfaces | |
|---|---|
| Video port type | HDMI |
| HDMI ports quantity | 4 |
| HDMI version | 1.4b |
| HDMI in | 1 |
| Number of HDMI outputs | 3 |
| Design | |
|---|---|
| Product colour | Black |
| Features | |
|---|---|
| HDCP | Y |
| Supported video modes | 2160p |
| Bandwidth | 3.4 Gbit/s |
| Bandwidth | 340 MHz |
| Colour depth | 12 bit |
| Display | |
|---|---|
| Maximum refresh rate | 30 Hz |
| HD type | 4K Ultra HD |
| Digital vertical frequency | 50 - 60 Hz |
| Graphics | |
|---|---|
| Maximum resolution | 3840 x 2160 pixels |
| Audio | |
|---|---|
| Audio decoders | DTS, DTS-HD, Dolby Digital, Dolby TrueHD |
| Media formats | |
|---|---|
| Audio formats supported | LPCM |
| Weight & dimensions | |
|---|---|
| Weight | 126 g |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
| Packaging content | |
|---|---|
| Manual | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Operating relative humidity (H-H) | 10 - 85% |
| Storage relative humidity (H-H) | 5 - 90% |
| Sustainability | |
|---|---|
| Sustainability certificates | CE |
| Other features | |
|---|---|
| Audio support | Y |
Product Description
High performance HD switch capable of switching three sources on a single screen.
This switching function is not performed only by pressing the buttons on the device, but also through an intelligent function.
The built-in cable (pigtail) not only reduces costs but also saves users time. Route high definition video (with multiple resolutions up to 4Kx2K at 30Hz) and digital audio from one of the three high definition video sources, also compatible with HD-DVD, SKY-STB, PS3, XBOX, etc. The output sends high definition audio/video signals to a high definition monitor.
This switching function is not performed only by pressing the buttons on the device, but also through an intelligent function.
The built-in cable (pigtail) not only reduces costs but also saves users time. Route high definition video (with multiple resolutions up to 4Kx2K at 30Hz) and digital audio from one of the three high definition video sources, also compatible with HD-DVD, SKY-STB, PS3, XBOX, etc. The output sends high definition audio/video signals to a high definition monitor.
