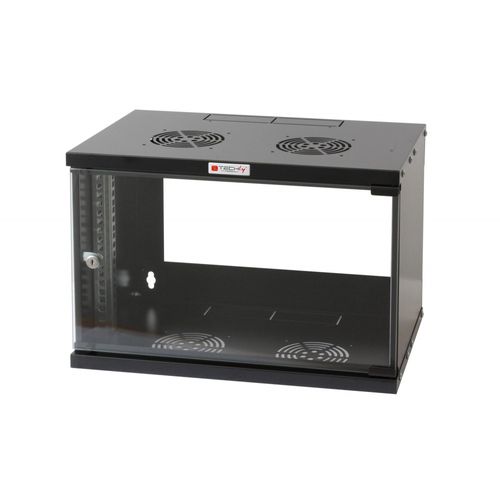

Techly Wall Rack Cabinet 19 6U D450 Black Assembled" I-CASE EL-1006B45
Techly Wall Rack Cabinet 19 6U D450 Black Assembled" I-CASE EL-1006B45, Wall mounted rack, 6U, 50 kg, Key lock, 14.2 kg, Black
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Techly |
| Product code | 03152084 |
| EAN | 08054529023608 |
| Manufacturer part number | NUTEYR000023608 |
| Category | Server accessories |
| Design | |
|---|---|
| Rack capacity | 6U |
| Maximum weight capacity | 50 kg |
| Product colour | Black |
| Cooling type | Active |
| Door opening angle | 180° |
| International Protection (IP) code | IP20 |
| Reversible doors | Y |
| Features | |
|---|---|
| Type | Wall mounted rack |
| Front door construction | Glass |
| Removable front door | Y |
| Removable side panels | N |
| Side panel style | Blind |
| Back door style | Open |
| Front door style | Glass door |
| Key lock | Y |
| Front uprights | Adjustable |
| Castor wheels | N |
| Assembly required | N |
| Ergonomics | |
|---|---|
| Adjustable feet | N |
| Performance | |
|---|---|
| Fan diameter | 12 cm |
| Other features | |
|---|---|
| Size (imperial) | 48.3 cm (19") |
| Weight & dimensions | |
|---|---|
| Width | 500 mm |
| Depth | 450 mm |
| Height | 350 mm |
| Inner depth | 360 mm |
| Weight | 14.2 kg |
| Packaging data | |
|---|---|
| Plinth panel | N |
| Grounding kit | Y |
| Packaging content | |
|---|---|
| Wall mounting kit | Y |
| Logistics data | |
|---|---|
| Warranty period | 15 year(s) |
Product Description
- Cupboard single section 6 units supplied assembled;
- Solid welded cold-rolled steel;
- Tempered glass door 5 mm, easily removable and reversible, opening angle greater than 180°, with key lock;
- Fixed side blind panels, non-removable;
- Provision for cable entry through the base and the roof pre-sheared profiles (225 x 45 mm);
- Preparation for the installation of two 120 mm fans on the roof and on the basis;
- Pair of front uprights 19 "1.5 mm, adjustable in two positions (effective depth 230 mm);
- Static load: 50kg;
- Degree of protection: IP20;
- Includes kit of screws, nuts and key for installation;
- RAL 9005 (black);

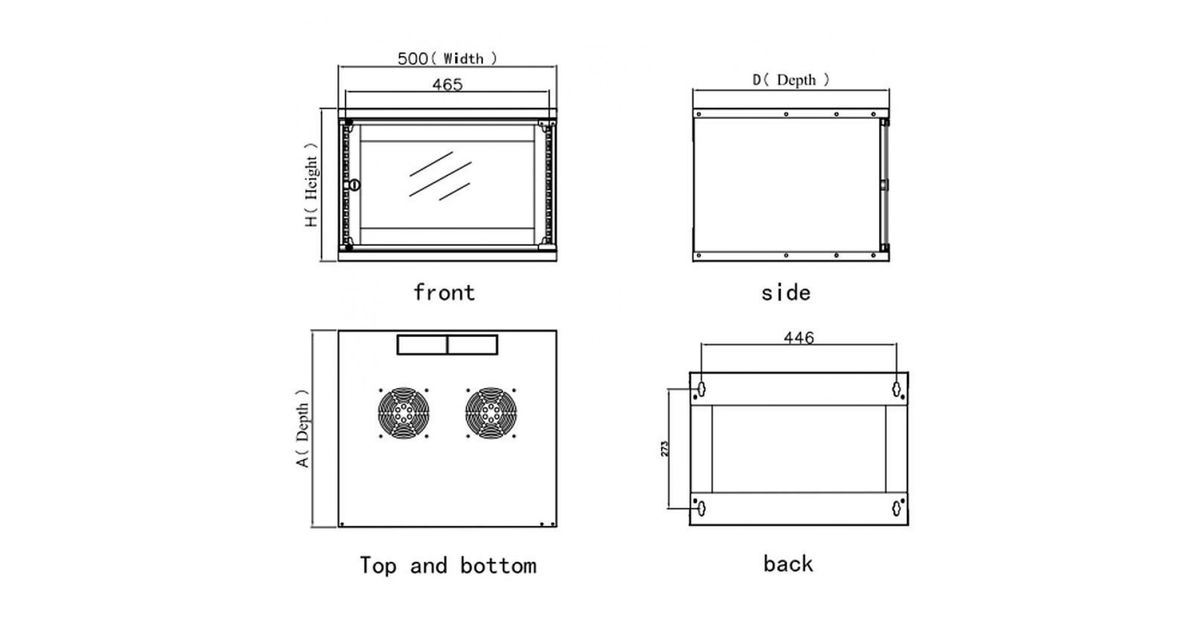

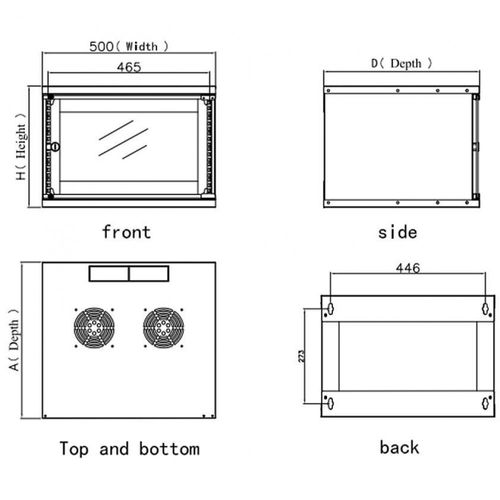

- Dimensions: 350x500x450 mm (HxWxD).
- Solid welded cold-rolled steel;
- Tempered glass door 5 mm, easily removable and reversible, opening angle greater than 180°, with key lock;
- Fixed side blind panels, non-removable;
- Provision for cable entry through the base and the roof pre-sheared profiles (225 x 45 mm);
- Preparation for the installation of two 120 mm fans on the roof and on the basis;
- Pair of front uprights 19 "1.5 mm, adjustable in two positions (effective depth 230 mm);
- Static load: 50kg;
- Degree of protection: IP20;
- Includes kit of screws, nuts and key for installation;
- RAL 9005 (black);
- Dimensions: 350x500x450 mm (HxWxD).
