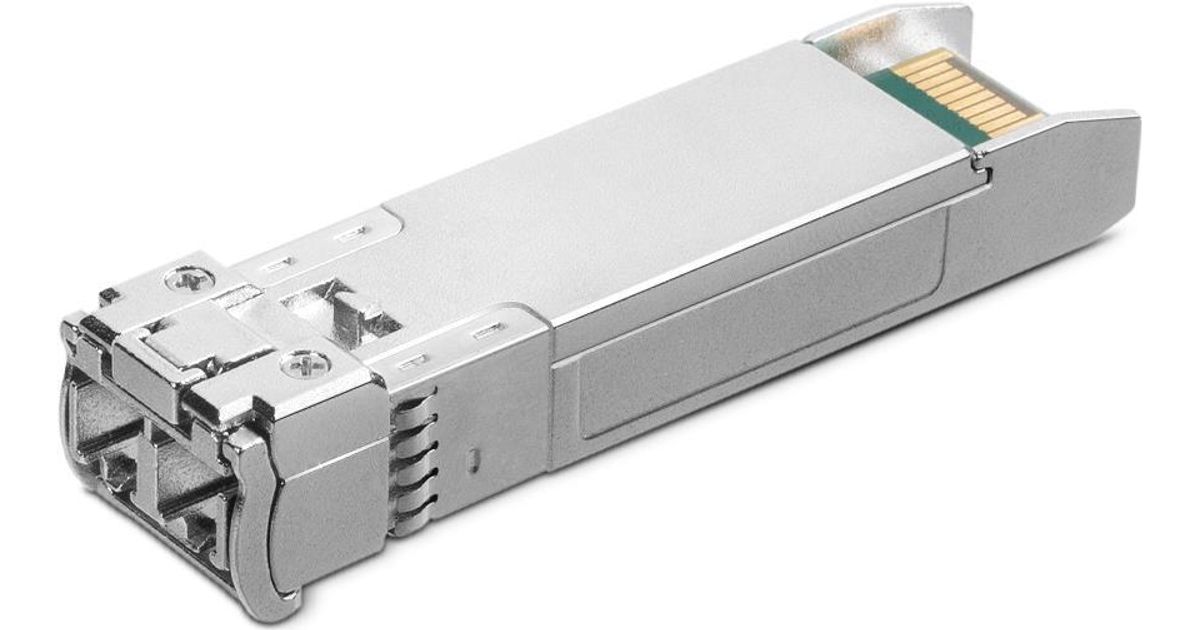

TP-LINK 10GBase-LR SFP+ LC Transceiver
TP-LINK 10GBase-LR SFP+ LC Transceiver, Fiber optic, 10000 Mbit/s, SFP+, LC, 9/125 µm, LR
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 214295813 |
| EAN | 05704174995630 |
| Manufacturer part number | SM5110-LR |
| Category | Transceivers & multiplexers |
| Performance | |
|---|---|
| SFP transceiver type | Fiber optic |
| Single-mode fiber (SMF) supported | Y |
| Multi-mode fiber (MMF) supported | N |
| Fiber cable diameters supported (core/cladding) | 9/125 µm |
| SFP transceiver standard | LR |
| Maximum transfer distance | 10000 m |
| Digital Diagnostics Monitoring (DDM) | Y |
| Hot-Plug support | Y |
| Compatible products | Switches with 10G SFP+ ports, like JetStream TL-SG3428X, TL-SG3428XMP, and more. |
| Features | |
|---|---|
| Maximum data transfer rate | 10000 Mbit/s |
| Brand compatibility | TP-Link |
| Certification | FCC, CE |
| Input voltage | 3.3 V |
| Ports & interfaces | |
|---|---|
| Interface type | SFP+ |
| Optical fiber | |
|---|---|
| Fiber optic connector | LC |
| Wavelength | 1310 nm |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3ae |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 70 °C |
| Storage temperature (T-T) | -40 - 85 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
Product Description
The TL-SM5110-LR is designed to extend transfer distances based on 10Gbps Ethernet connectivity. It is a 10GBASE-LR high performance 1310 nm single-mode SFP+ transceiver. It supports full duplex, 10G Ethernet connections up to 10 km with 9/125µm fiber cables respectively.
