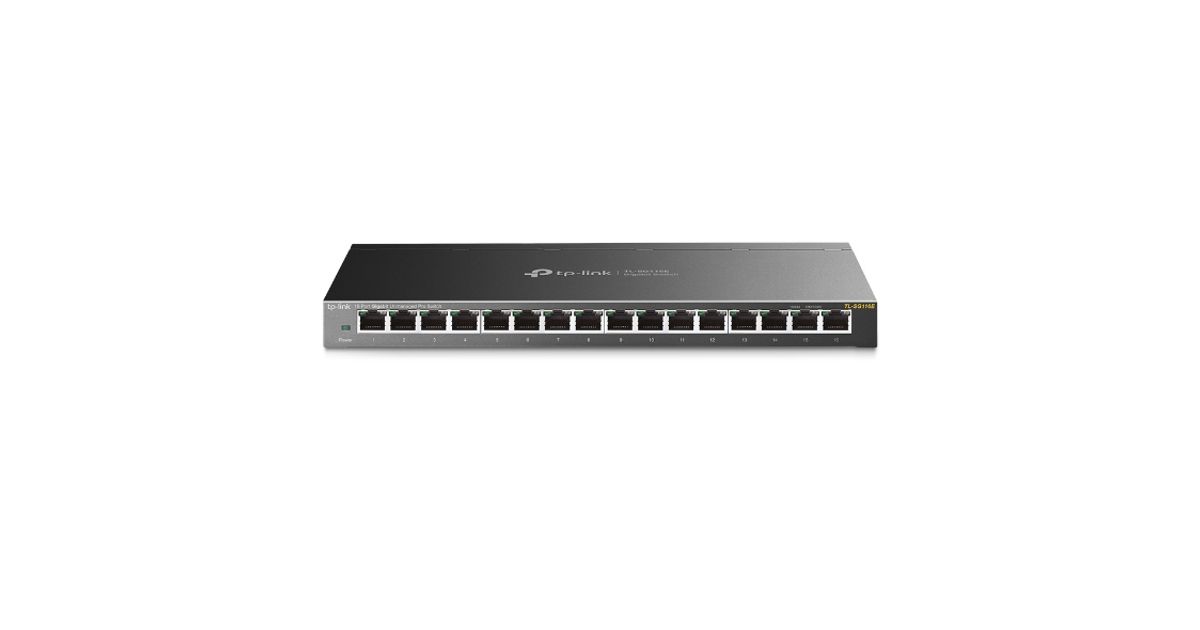

For illustrative purpose only
TP-Link 16-Port Gigabit Unmanaged Pro Switch
TP-Link 16-Port Gigabit Unmanaged Pro Switch, Unmanaged, L2, Gigabit Ethernet (10/100/1000), Full duplex
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 03152575 |
| EAN | 00000031024341 |
| Manufacturer part number | TL-SG116E (SMB) |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Switch layer | L2 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 16 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 16 |
| Other features | |
|---|---|
| Networking standards | IEEE 802.1Q, IEEE 802.1p, IEEE 802.3, IEEE 802.3ab, IEEE 802.3u |
| Number of VLANs | 32 |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Copper ethernet cabling technology | 10BASE-T, 100BASE-TX, 1000BASE-T |
| Cable types supported | Cat3, Cat4, Cat5, Cat5e, Cat6 |
| Port mirroring | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Auto MDI/MDI-X | Y |
| Auto-negotiation | Y |
| Cable length detection | Y |
| VLAN support | Y |
| Virtual LAN features | Tagged VLAN, Protocol-based VLAN |
| Features | |
|---|---|
| Full duplex | Y |
| Certification | FCC, CE, RoHS |
| Plug and Play | Y |
| Input voltage | 12 V |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 32 Gbit/s |
| Forwarding rate | 23.81 Mpps |
| Store-and-forward | Y |
| Number of queues | 4 |
| Jumbo frames support | Y |
| Jumbo frames | 10000 |
| Packet buffer memory | 4.1 MB |
| Security | |
|---|---|
| IGMP snooping | Y |
| Loop protection | Y |
| Design | |
|---|---|
| Rack mounting | N |
| Product colour | Black |
| Housing material | Metal |
| LED indicators | Y |
| Power | |
|---|---|
| Power source | DC |
| Input current | 1 A |
| Power consumption (max) | 9.3 W |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Performance | |
|---|---|
| Heat dissipation | 31.68 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 286 mm |
| Depth | 111.7 mm |
| Height | 25.4 mm |
| Packaging content | |
|---|---|
| AC adapter included | Y |
| Packaging data | |
|---|---|
| Rubber feet | Y |
| Package width | 412 mm |
| Package depth | 170 mm |
| Package height | 70 mm |
Product Description
What This Product Does
The TL-SG116E Unmanaged Pro switch is an ideal upgrade on unmanaged switches, suited for home and small business networks. A plug-and-play design makes for easy deployment without the need for a technician, while a robust metal casing provides better protection for components. Equipped with intelligent management features like QoS, VLAN, IGMP Snooping and more, this switch is effective in both simple and more demanding network environments.
Easy to Use
Connecting devices to TL-SG116E is simple. Auto MDI/MDI-X crossover on all ports eliminate the need for crossover cables or uplink ports. Auto-negotiation on each port detects the link speed of a network device and intelligently adjusts settings for compatibility and optimal performance.
Durable Metal Casing
The interior components of TL-SG116E are protected by high-quality metal casing to ensure a long product life. Having passed an array of stringent reliability tests, TL-SG116E delivers switching performance you can depend on. Its compact size makes it ideal for deployment on desktops or work benches.
Additional Software Features
TL-SG116E excels not only in simple plug-and-play networks but also in more demanding environments. Network monitoring enables users to observe traffic behavior. Port Mirroring, Loop Prevention and Cable Diagnostics allow connection problems on your network to be identified and located. Administrators can designate the priority of traffic based on Port/802.1p/DSCP QoS, for example, to ensure that voice and video applications remain clear and lag-free. Combining security with network performance, TL-SG116E supports MTU VLAN, port-based VLAN and 802.1Q-based VLAN functions.
Go Green with Your Ethernet
TP-Link’s latest generation of Unmanaged Pro Switches make use of innovative energy-saving technologies. Power consumption automatically adjusts according to link status and cable length, allowing you to expand your network while minimizing your carbon footprint. Save the planet and lower your energy bills — it’s a win-win!
