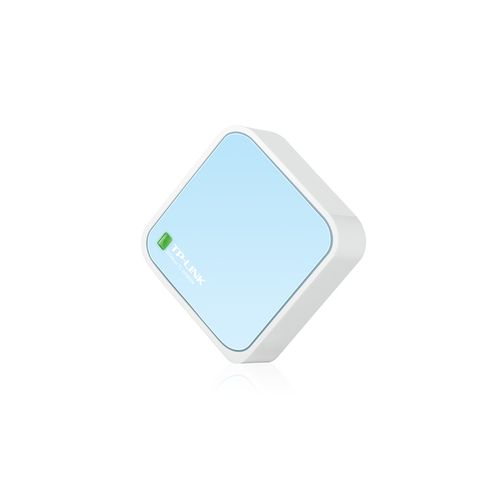

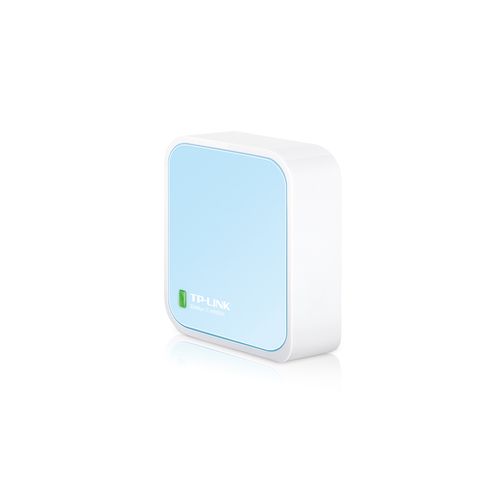

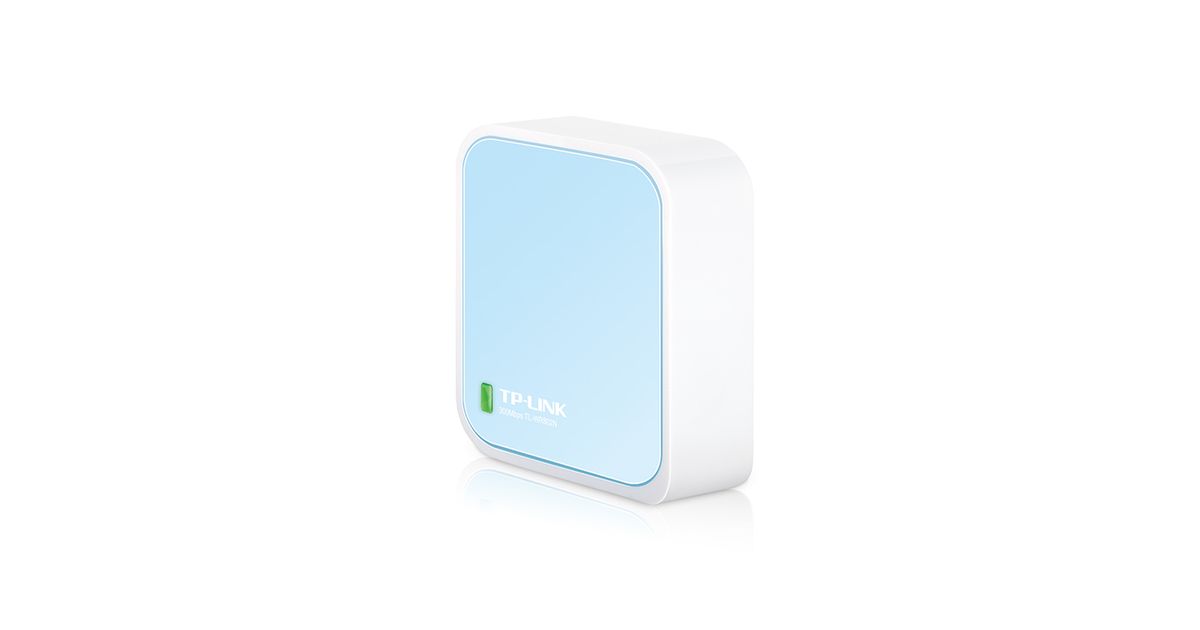

TP-LINK 300Mbps Wireless N Nano Router wireless router Fast Ethernet Single-band (2.4 GHz) Blue, White
TP-LINK 300Mbps Wireless N Nano Router, Wi-Fi 4 (802.11n), Single-band (2.4 GHz), Ethernet LAN, Blue, White, Tabletop router
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 03152619 |
| EAN | 06935364098124 |
| Manufacturer part number | KMTPLRXWN000008 |
| Category | Access points and routers |
| WAN connection | |
|---|---|
| Ethernet WAN | Y |
| DSL WAN | N |
| SIM card slot | N |
| 3G/4G USB modem compatibility | N |
| WAN connection type | RJ-45 |
| Network | |
|---|---|
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Y |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Port triggering | Y |
| Dynamic DNS (DDNS) | Y |
| VPN Passthrough | Y |
| 4G | N |
| Security algorithms | 64-bit WEP,128-bit WEP,152-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| DHCP client | Y |
| Mobile network connection | Y |
| Frequency range | 2.4 - 2.4835 GHz |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (max) | 300 Mbit/s |
| Other features | |
|---|---|
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| WLAN data transfer rates supported | 11,54,300 Mbit/s |
| Supported WAN type | IP, Static IP, PPPoE, PPTP, L2TP |
| xDSL connection | N |
| Mobile network | |
|---|---|
| 3G | N |
| Ports & interfaces | |
|---|---|

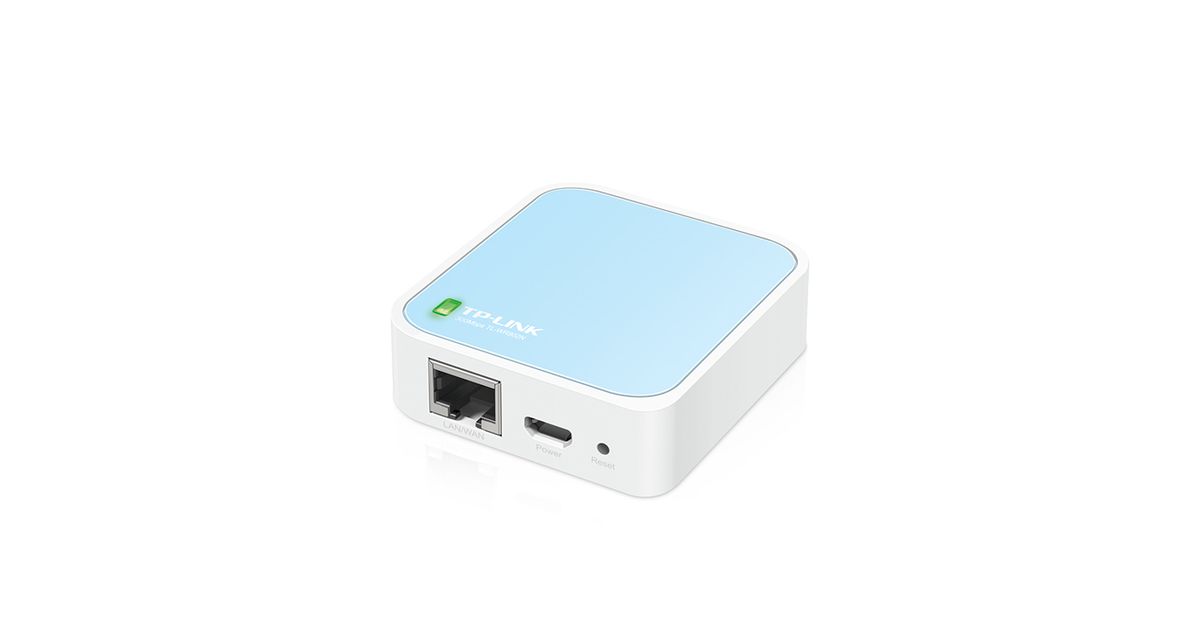

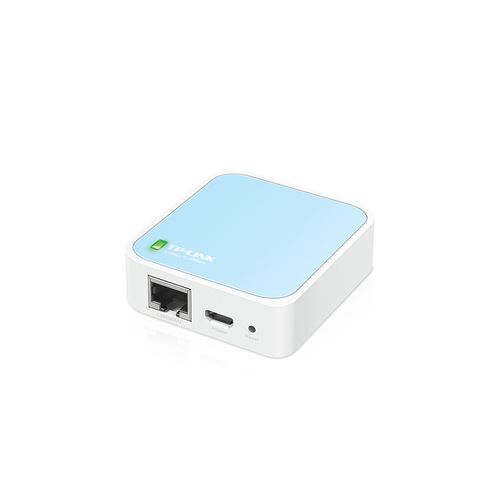

| Ethernet LAN (RJ-45) ports | 1 |
| USB port | Y |
| Memory card slot(s) | N |
| DC-in jack | Y |
| USB ports quantity | 1 |
| Management features | |
|---|---|
| Web-based management | Y |
| Design | |
|---|---|
| Reset button | Y |
| Product type | Tabletop router |
| Product colour | Blue, White |
| LED indicators | Activity, LAN, Power, WLAN |
| On/off switch | Y |
| Rack mounting | N |
| Security | |
|---|---|
| Firewall | Y |
| Stateful Packet Inspection (SPI) | Y |
| DoS attack prevention | Y |
| MAC address filtering | Y |
| IP address filtering | Y |
| Features | |
|---|---|
| Filtering | Y |
| Antenna type | Internal |
| Linux operating systems supported | Y |
| Protocols | |
|---|---|
| DMZ support | Y |
| Universal Plug and Play (UPnP) | Y |
| Performance | |
|---|---|
| DHCP server | Y |
| Power source type | DC |
| Antenna | |
|---|---|
| Receive power | 270M: -65dBm@10% PER , 130M: -70dBm@10% PER , 108M: -82dBm@10% PER , 54M: -73dBm@10% PER , 11M: -82dBm@8% PER , 6M: -86dBm@10% PER , 1M: -90dBm@8% PER |
| Transmit power | CE: , <20dBm(2.4GHz) , FCC: , <30dBm |
| Power | |
|---|---|
| Output voltage | 5 V |
| Output current | 1 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Software | |
|---|---|
| Mac operating systems supported | macOS |
| Weight & dimensions | |
|---|---|
| Width | 57 mm |
| Depth | 57 mm |
| Height | 18 mm |
| Packaging content | |
|---|---|
| Manual | Y |
| Packaging data | |
|---|---|
| Quick installation guide | Y |
| Mouse | |
|---|---|
| Frequency band | 2.4 GHz |
Product Description
Multiple Operating Modes
Ideal for Home and Travel Use
To meet the wireless needs of almost any situation you might encounter, the TL-WR802N supports Router, Hotspot, Range Extender, Client and Access Point Modes.
During Travel
Router Mode
Instantly create a private wireless network and share Internet access with multiple Wi-Fi devices. Ideal for setup in most hotels.
Hotspot Mode
Enjoy wireless Internet access by connecting to an outdoor WISP Access Point.
At Home
Range Extender Mode
Extend existing Wi-Fi to improve signal strength and maximize coverage.
Client Mode
Allow devices that require a wired connection to access an existing Wi-Fi network.
Access Point Mode
Create a wireless network for Wi-Fi devices.

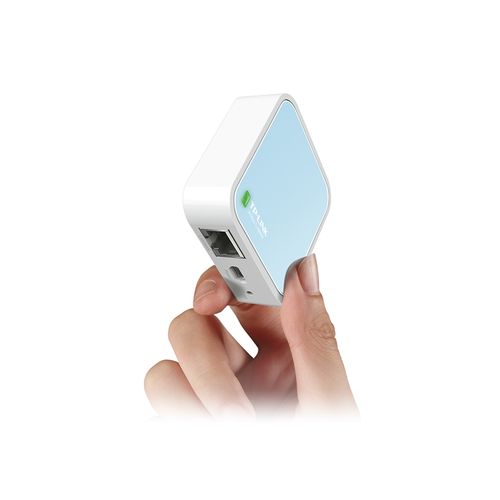

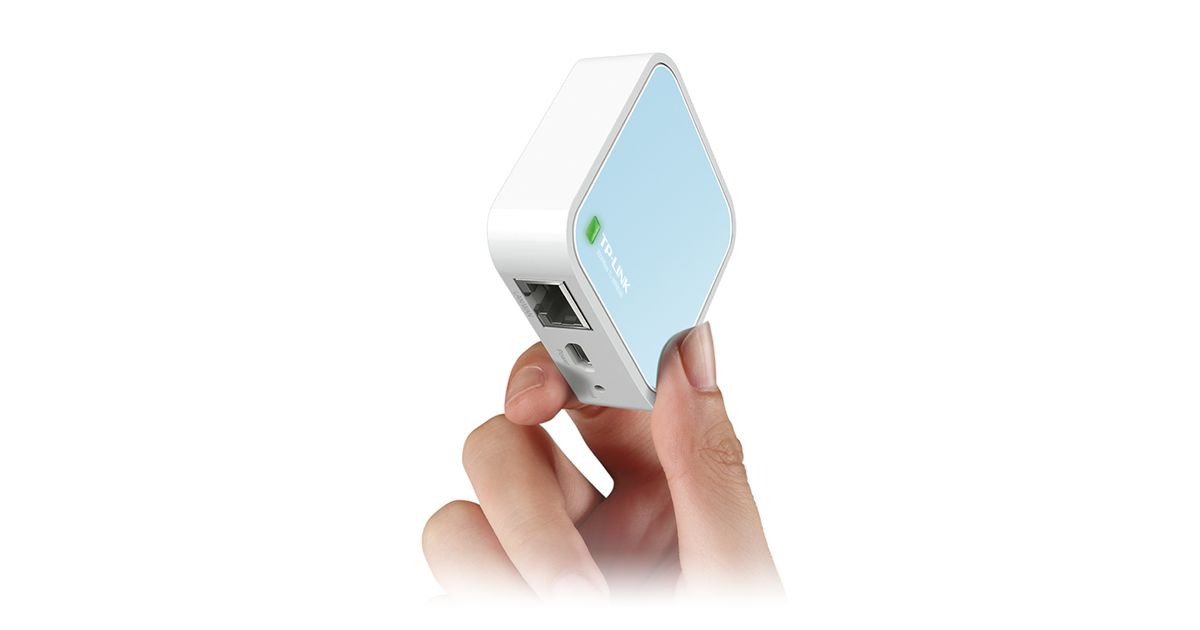

Portable and Compact - Suitable for Home and Travel
The TL-WR802N is the smallest wireless router in the world. It is very easy to use and is a perfect choice for travelers, students, and anyone else who lives life on the go.
Flexible Power Supply - Find Power Wherever You Are
The TL-WR802N can be powered using the included power adapter or using a smartphone /USB charger.
