For illustrative purpose only

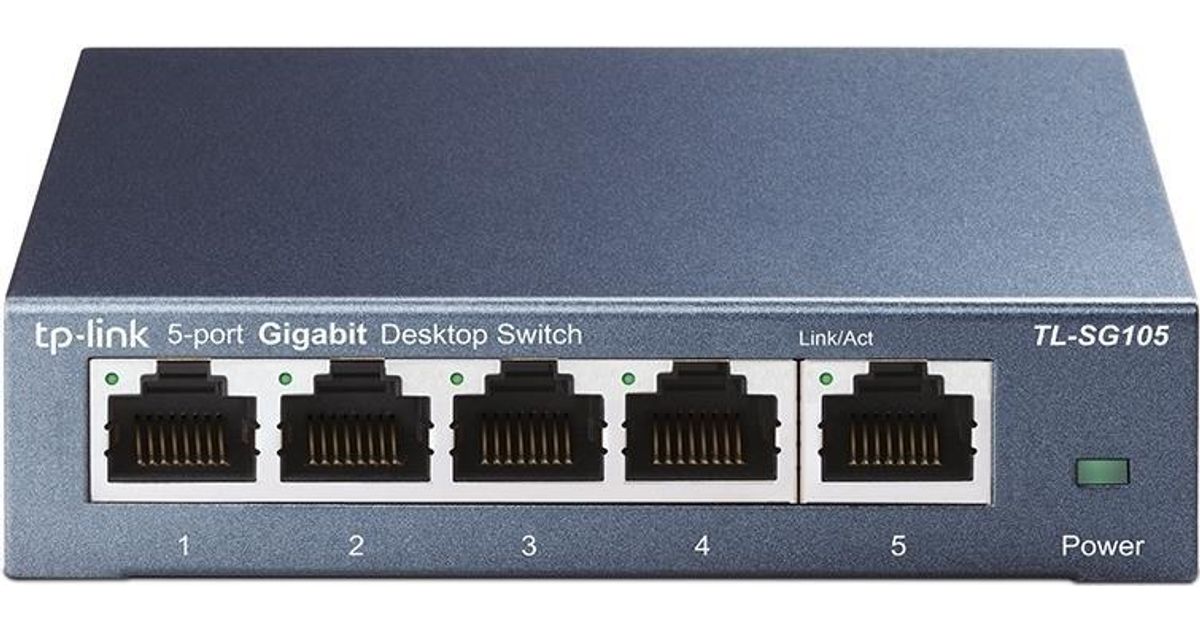

TP-LINK 5-Port 10/100/1000Mbps Desktop Network Switch
TP-LINK 5-Port 10/100/1000Mbps Desktop Network Switch, Unmanaged, Gigabit Ethernet (10/100/1000), Full duplex
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 163900843 |
| EAN | 06935364021320 |
| Manufacturer part number | NUTPLSW5PSG105G |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Quality of Service (QoS) support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 5 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Power connector | DC-in jack |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3,IEEE 802.3ab,IEEE 802.3x |
| Supported data transfer rates | 10/100/1000Mbps |
| User guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Auto MDI/MDI-X | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Wi-Fi | N |
| Ethernet LAN | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Maximum data transfer rate | 2 Gbit/s |
| Certification | CE, FCC, RoHS |
| Power LED | Y |
| Data transmission | |
|---|---|
| MAC address table | 2000 entries |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 16000 |
| Packet buffer memory | 1 MB |
| Security | |
|---|---|
| IGMP snooping | Y |
| Multicast features | |
|---|---|
| Multicast Listener Discovery (MLD) snooping | Y |
| Protocols | |
|---|---|
| Switching protocols | CSMA/CD |
| Design | |
|---|---|
| Product colour | Black |
| LED indicators | Y |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| DC input voltage | 9 V |
| Input current | 0.6 A |
| Power consumption (max) | 2.43 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Performance | |
|---|---|
| Heat dissipation | 8.29 BTU/h |
| Weight & dimensions | |
|---|---|
| Width | 99.8 mm |
| Depth | 97.8 mm |
| Height | 25 mm |
| Packaging content | |
|---|---|
| Cables included | AC |
| Rack mount kit | Y |
| Packaging data | |
|---|---|
| Package type | Box |
| Package width | 128 mm |
| Package depth | 125 mm |
| Package height | 92 mm |
| Keyboard | |
|---|---|
| Connectivity technology | Wired |
Product Description
What This Product Does
The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 5x 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 65% reduction in power use.
- Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
The TP-LINK 5-Port 10/100/1000Mbps Desktop Switch provides you an easy way to make the transition to Gigabit Ethernet. Increase the speed of your network server and backbone connections, or make Gigabit to the desktop a reality. Moreover, TL-SG105 adopts lower power consumption design. With the innovative energy-efficient technology, the TL-SG105 can save up to 65% of the power consumption, making it an eco-friendly solution for your home or office network.
Gigabit Switch
Featured with 5x 10/100/1000Mbps ports, TL-SG105 greatly expands your network capacity, enabling instant large files transferring. So, power users in the home, office, workgroup, or creative production environment can now move large, bandwidth-intensive files faster. Transfer graphics, CGI, CAD, or multimedia files across the network instantly.
Go Green With Your Ethernet
You now have the choice to go green when upgrading to a gigabit network! This new generation TL-SG105 5-Port 10/100/1000Mbps Desktop Switch features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network.
- Power down Idle Ports
When a computer or network equipment is off, the corresponding port of a traditional switch will continue to consume considerable amounts of power. The TL-SG105 can automatically detect the link status of each port and reduce the power consumption of ports that are idle, resulting in up to an 65% reduction in power use.
- Power Budget According to Cable Length
Ideally, shorter cable would use less power because of less power degradation over their length; this is not the case with most devices as they will use the same amount of power across the cable regardless of the length.
