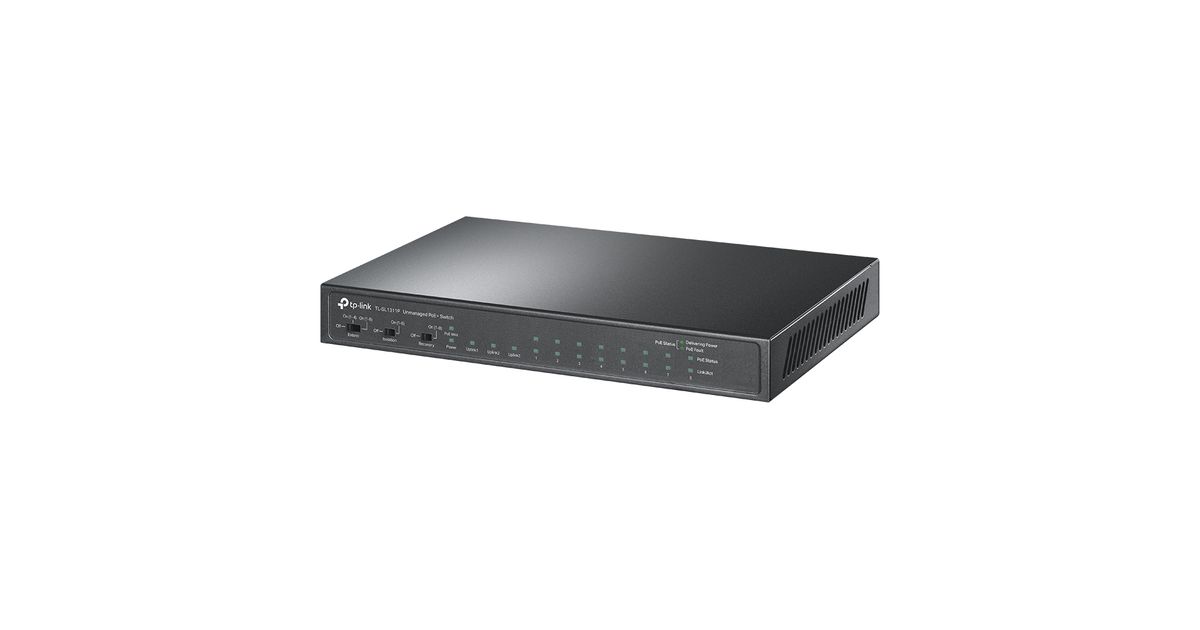

TP-Link 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+
TP-Link 8-Port 10/100Mbps + 3-Port Gigabit Desktop Switch with 8-Port PoE+, Fast Ethernet (10/100), Power over Ethernet (PoE)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 419372777 |
| EAN | 04895252500288 |
| Manufacturer part number | TL-SL1311P |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| Network | |
|---|---|
| 10G support | N |
| Data transmission | |
|---|---|
| MAC address table | 2000 entries |
| Switching capacity | 7.6 Gbit/s |
| Forwarding rate | 5.6544 Mpps |
| Store-and-forward | Y |
| Jumbo frames support | Y |
| Jumbo frames | 16 |
| Design | |
|---|---|
| Rack mounting | N |
| Product colour | Black |
| Reset button | Y |
| LED indicators | Y |
| Features | |
|---|---|
| Certification | FCC, CE, RoHS |
| Power | |
|---|---|
| Power source | AC/DC |
| DC input voltage | 53.5 V |
| Power consumption (max) | 77.32 W |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Total Power over Ethernet (PoE) budget | 65 W |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 209 mm |
| Depth | 126 mm |
| Height | 26 mm |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| Packaging data | |
|---|---|
| Package type | Box |
