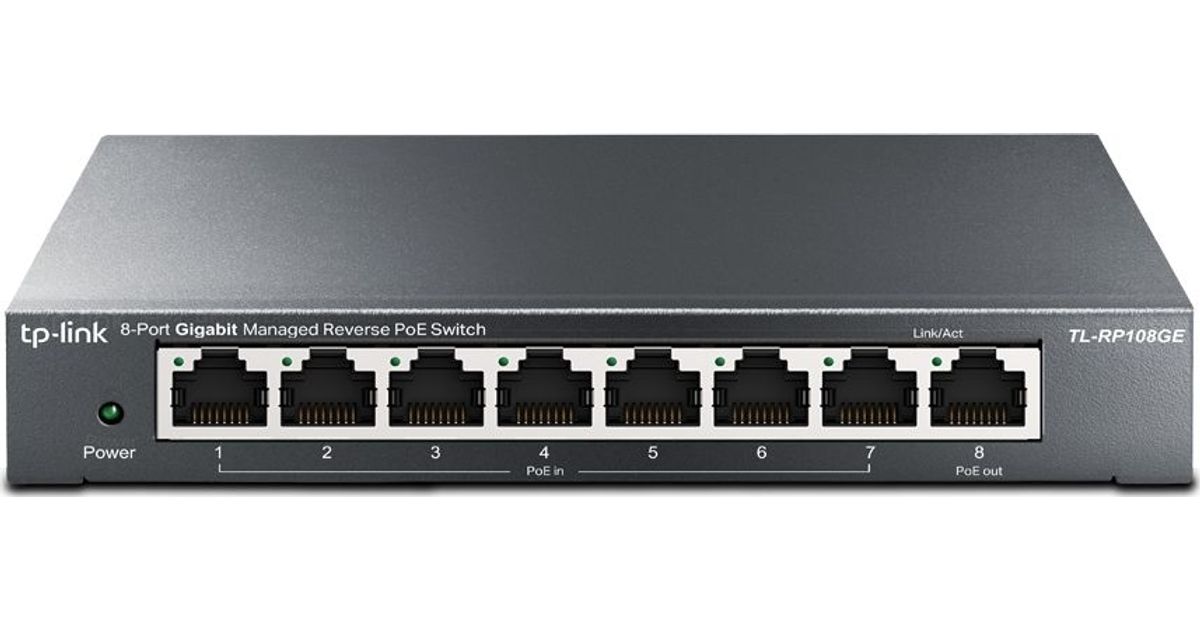

TP-LINK 8-Port Gigabit Managed Reverse PoE Switch
TP-LINK 8-Port Gigabit Managed Reverse PoE Switch, Gigabit Ethernet (10/100/1000), Full duplex, Power over Ethernet (PoE)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 325654866 |
| EAN | 06935364052713 |
| Manufacturer part number | TL-RP108GE |
| Category | WLAN Repeaters |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 8 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3ab,IEEE 802.3i,IEEE 802.3p,IEEE 802.3q,IEEE 802.3u,IEEE 802.3x |
| Network | |
|---|---|
| 10G support | N |
| Port mirroring | Y |
| Half duplex | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Certification | FCC, CE, RoHS |
| Data transmission | |
|---|---|
| MAC address table | 4000 entries |
| Switching capacity | 16 Gbit/s |
| Forwarding rate | 11.9 Mpps |
| Store-and-forward | Y |
| Static route | Y |
| Jumbo frames support | Y |
| Security | |
|---|---|
| IGMP snooping | Y |
| Loop protection | Y |
| Design | |
|---|---|
| Product colour | Black |
| Reset button | Y |
| LED indicators | Y |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power | |
|---|---|
| DC input voltage | 5 V |
| Input current | 1 A |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power over Ethernet (PoE) type supported | Passive PoE |
| Power over Ethernet (PoE) ports quantity | 8 |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 158 mm |
| Depth | 99.1 mm |
| Height | 25 mm |
Product Description
What This Product Does
The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
The Passive PoE switch TL-RP108GE has seven gigabit PoE input ports that allow it to receive power from user outlets via PoE injectors. Equipped with one PoE output port, the switch can supply power to CPEs and similar devices via Port 8. The DC output port supports both 5 V and 12 V optional output voltage and can be used to power devices like ONTs. With data switching and PoE integrated into a single unit, TL-RP108GE saves space, minimizes cabling, and eliminates the need for dedicated electrical outlets—lowering deployment costs and simplifying installation for PoE-capable devices.
