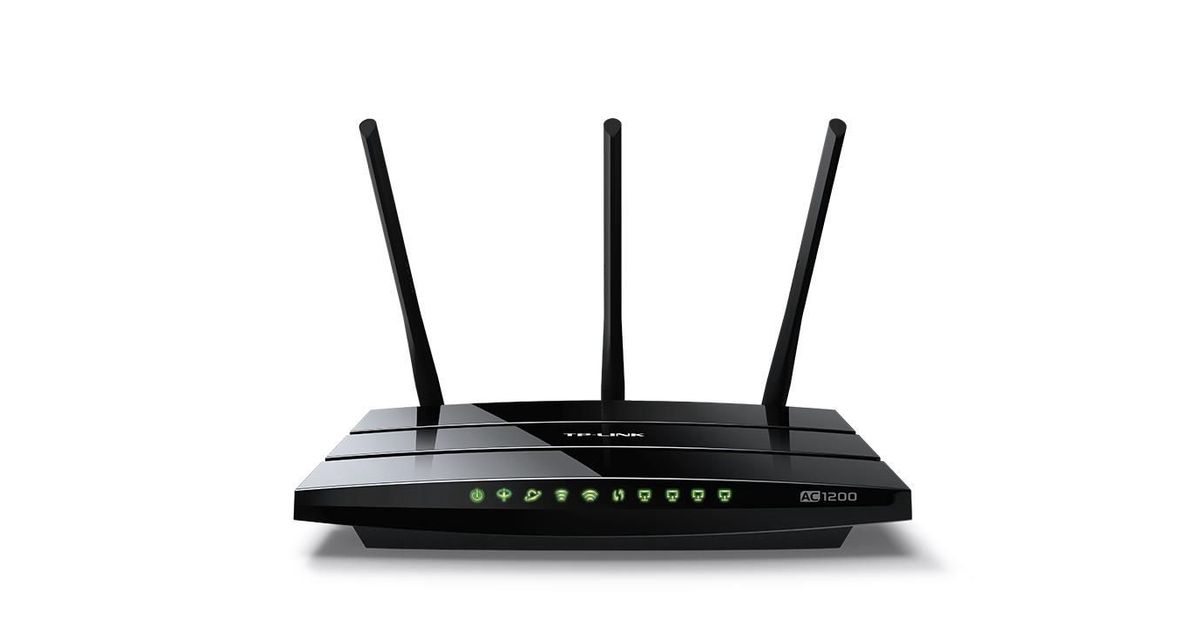

TP-LINK AC1200 Wireless VDSL/ADSL Modem Router
TP-LINK AC1200 Wireless VDSL/ADSL Modem Router, Wi-Fi 5 (802.11ac), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, ADSL2, Black, Tabletop router
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 566044594 |
| EAN | 06935364096861 |
| Manufacturer part number | ARCHER VR400 V2 |
| Category | Routers |
| WAN connection | |
|---|---|
| Ethernet WAN | Y |
| DSL WAN | Y |
| SIM card slot | N |
| 3G/4G USB modem compatibility | Y |
| WAN connection type | RJ-45 |
| Network | |
|---|---|
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
| Wi-Fi standards | 802.11a,Wi-Fi 5 (802.11ac),802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Y |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| Cabling technology | 10/100/1000Base-T(X) |
| Port forwarding | Y |
| Dynamic DNS (DDNS) | Y |
| VPN Passthrough | Y |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| DHCP client | Y |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (max) | 867 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| WLAN data transfer rate (second band) | 867 Mbit/s |
| Other features | |
|---|---|
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| USB 2.0 ports quantity | 1 |
| Antennas quantity | 3 |
| Quick start guide | Y |
| Data transmission | |
|---|---|
| Static route | Y |
| Security | |
|---|---|
| VPN tunnels quantity | 10 |
| VPN support | PTP, L2TP, IPSec Passthrough |
| WPS push button | Y |
| Firewall | Y |
| Guest access | Y |
| Access Control List (ACL) | Y |
| MAC address filtering | Y |
| DSL features | |
|---|---|
| ADSL | Y |
| ADSL2 | Y |
| ADSL2+ | Y |
| VDSL2 | Y |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 5 |
| USB port | Y |
| Memory card slot(s) | N |
| DC-in jack | Y |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Design | |
|---|---|
| Reset button | Y |
| Product type | Tabletop router |
| Product colour | Black |
| LED indicators | LAN, Power, WLAN |
| On/off switch | Y |
| Features | |
|---|---|
| Filtering | Y |
| Wall mountable | Y |
| Antenna type | External |
| Certification | CE, RoHS |
| Linux operating systems supported | Y |
| Protocols | |
|---|---|
| DMZ support | Y |
| Universal Plug and Play (UPnP) | Y |
| Supported network protocols | IPv4, IPv6 |
| Performance | |
|---|---|
| DHCP server | Y |
| Management protocols | SSL for TR-069, SNMP v1/2c, Web Based Firmware Upgrade, Diagnostic Tools |
| Power source type | AC |
| Ergonomics | |
|---|---|
| Indication light | Y |
| Antenna | |
|---|---|
| Detachable antenna(s) | Y |
| Power | |
|---|---|
| Output voltage | 12 V |
| Output current | 1.5 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Software | |
|---|---|
| Mac operating systems supported | Y |
| Weight & dimensions | |
|---|---|
| Width | 215.6 mm |
| Depth | 124.6 mm |
| Height | 31.6 mm |
| Package weight | 850 g |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Y |
| Manual | Y |
| Packaging data | |
|---|---|
| Package width | 350 mm |
| Package depth | 240 mm |
| Package height | 82 mm |
| Package type | Box |
Product Description
Superfast Wi-Fi - Up to 1.2Gbps
The Archer VR400 unlocks the full potential of your internet connection by providing combined dual band Wi-Fi speeds of up to 1.2Gbps, including 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, eliminating lag and buffering from your online experience.
Two dedicated Wi-Fi networks support more devices and reduce wireless interference to create stable connections.
Superfast VDSL Broadband
The latest VDSL2 technology allows the Archer VR400 to deliver impressive VDSL broadband speeds of up to 100Mbps, which is almost five times faster than ADSL2+. The Archer VR400 serves as a DSL modem and wireless router, combining two devices in one. The integrated DSL port supports all standard DSL connections, including VDSL2, ADSL2+, ADSL2, and ADSL.
Versatile Backup Connectivity
With multiple inputs, the Archer VR400 provides you with a variety of options when connecting to the Internet. As a backup, the EWAN port allows the Archer VR400 to accept connections from cable and fiber modems via Ethernet cable. Additionally, the USB port supports 3G/4G dongle connections.
Superior Range and Stability
Three high-performance external antennas help the Archer VR400 create an expansive home network. Advanced Beamforming technology* automatically locates wireless devices and forms targeted, highly efficient wireless connections.
*Archer VR400 only supports Beamforming Technology at 5GHz band.
Blazing Fast Wired Performance
To help your wired devices achieve peak performance, the router’s Gigabit Ethernet ports operate 10x faster than standard Ethernet. Connecting an external drive to the USB 2.0 port allows you to share files, photos, music, and video with any device on the network.
Easy Setup and Use
Set up the Archer VR400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and media sharing.
The Archer VR400 unlocks the full potential of your internet connection by providing combined dual band Wi-Fi speeds of up to 1.2Gbps, including 300Mbps on the 2.4GHz band and 867Mbps on the 5GHz band, eliminating lag and buffering from your online experience.
Two dedicated Wi-Fi networks support more devices and reduce wireless interference to create stable connections.
Superfast VDSL Broadband
The latest VDSL2 technology allows the Archer VR400 to deliver impressive VDSL broadband speeds of up to 100Mbps, which is almost five times faster than ADSL2+. The Archer VR400 serves as a DSL modem and wireless router, combining two devices in one. The integrated DSL port supports all standard DSL connections, including VDSL2, ADSL2+, ADSL2, and ADSL.
Versatile Backup Connectivity
With multiple inputs, the Archer VR400 provides you with a variety of options when connecting to the Internet. As a backup, the EWAN port allows the Archer VR400 to accept connections from cable and fiber modems via Ethernet cable. Additionally, the USB port supports 3G/4G dongle connections.
Superior Range and Stability
Three high-performance external antennas help the Archer VR400 create an expansive home network. Advanced Beamforming technology* automatically locates wireless devices and forms targeted, highly efficient wireless connections.
*Archer VR400 only supports Beamforming Technology at 5GHz band.
Blazing Fast Wired Performance
To help your wired devices achieve peak performance, the router’s Gigabit Ethernet ports operate 10x faster than standard Ethernet. Connecting an external drive to the USB 2.0 port allows you to share files, photos, music, and video with any device on the network.
Easy Setup and Use
Set up the Archer VR400 in minutes thanks to its intuitive web interface and the powerful Tether app. Tether also lets you manage its network settings from any Android or iOS device, including parental controls and media sharing.
