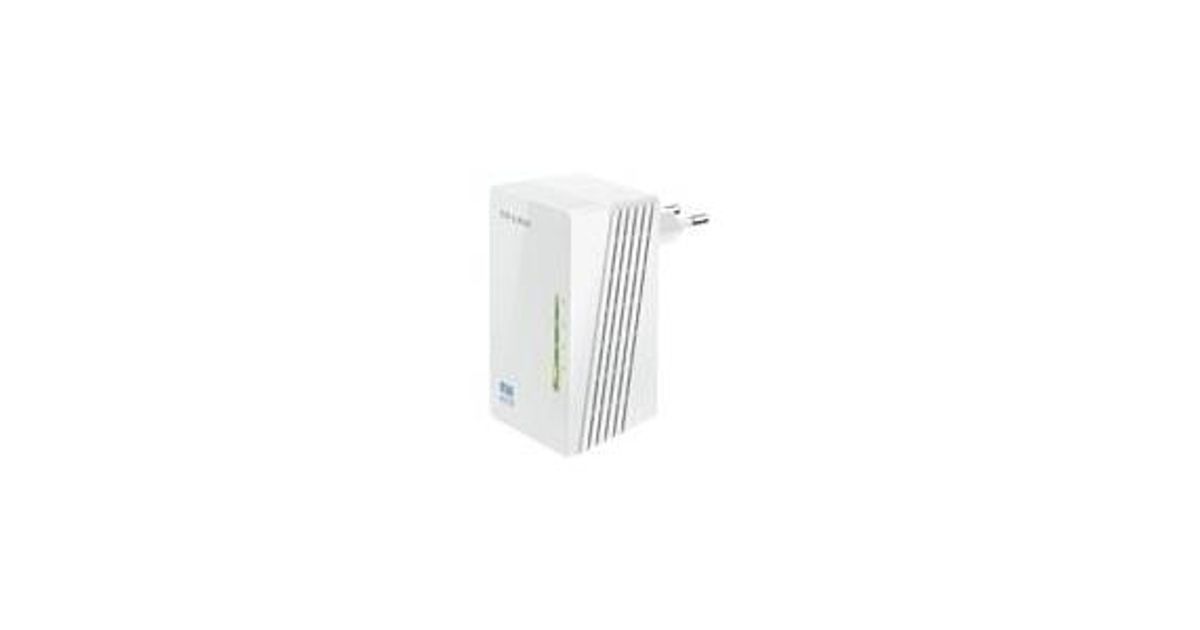

For illustrative purpose only
TP-LINK AV500 300 Mbit/s Ethernet LAN Wi-Fi White 1 pc(s)
TP-LINK AV500, 300 Mbit/s, IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u, Fast Ethernet, 10,100 Mbit/s, Wi-Fi 4 (802.11n), 802.11b,802.11g,Wi-Fi 4 (802.11n)
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 161896106 |
| EAN | 04056203013145 |
| Manufacturer part number | TL-WPA4220 |
| Category | Powerline |
| Features | |
|---|---|
| Maximum data transfer rate | 300 Mbit/s |
| Modulation | OFDM |
| Certification | CE, FCC |
| Linux operating systems supported | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | Y |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Security algorithms | 64-bit WEP,128-bit WEP,WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Maximum operating distance | 300 m |
| Other features | |
|---|---|
| Networking standards | IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3u |
| WLAN data transfer rates supported | 11,54,300 Mbit/s |
| Performance | |
|---|---|
| Built-in power socket | N |
| PowerLine standard | HomePlug AV |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Power | |
|---|---|
| Power consumption (typical) | 5.086 W |
| Power consumption (standby) | 4.17 W |
| AC input voltage | 220 V |
| AC input frequency | 50 Hz |
| Design | |
|---|---|
| Product colour | White |
| LED indicators | Y |
| Software | |
|---|---|
| Mac operating systems supported | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 94 mm |
| Depth | 54 mm |
| Height | 40 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Packaging data | |
|---|---|
| Quantity per pack | 1 pc(s) |
Product Description
- One Touch Super Range Extension - Wi-Fi Clone Button simplifies your Wi-Fi configuration and helps build a seamless unified home network
- HomePlug AV standard providing up to 500Mbps1 high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
Plug and Play
1. Plug one Internet connected adapter into a nearby power outlet. 2. Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable or Wi-Fi - and you're done! *Recommended: Press the pair buttons for network security and data encryption. Note: Powerline adapters should be deployed on the same circuit and in set of two or more.
What This Product Does
TP-LINK’s TL-WPA4220 extends your Internet connection to every room of the house through your home’s existing electrical circuitry. The TL-WPA4220 features a Wi-Fi Clone Button enabling Super Range Extension, which means it can automatically copy the SSID and Password of your router. In this way, TL-WPA4220 simplifies your Wi-Fi configuration and allows for seamless roaming within your home network.
One Touch Super Range Extension
With a Wi-Fi Clone Button enabling Super Range Extension, the TL-WPA4220 can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After the pressing the button, you can place the powerline adapter anywhere you want wired or wireless access and enjoy seamless networking across your entire home or office.
Up to 500Mbps - Ideal for HD Video Streaming
With advanced HomePlug AV technology, TL-WPA4220 provides you with stable, high-speed data transfer rates of up to 500Mbps on a line length of up to 300 meters. It is a great choice for a whole home solution to connect all network compatible devices--from computers, game consoles to set-top boxes for IPTV to printers and NAS hard drives.
Extend WiFi Coverage to Every Room
With wireless speeds of up to 300Mbps, you can effortlessly extend your WiFi network via the existing powerline and broadcast a wireless signal to share with all your WiFi enabled devices in another area of your home or office.
- HomePlug AV standard providing up to 500Mbps1 high speed data transmission over a home’s existing electrical wiring, ideal for lag-free HD or 3D video streaming and online gaming
- Extend 300Mbps wireless connections to previously hard-to-reach areas of your home and office
Plug and Play
1. Plug one Internet connected adapter into a nearby power outlet. 2. Connect additional adapters to PCs/laptops/Internet TVs or other networked devices via an Ethernet cable or Wi-Fi - and you're done! *Recommended: Press the pair buttons for network security and data encryption. Note: Powerline adapters should be deployed on the same circuit and in set of two or more.
What This Product Does
TP-LINK’s TL-WPA4220 extends your Internet connection to every room of the house through your home’s existing electrical circuitry. The TL-WPA4220 features a Wi-Fi Clone Button enabling Super Range Extension, which means it can automatically copy the SSID and Password of your router. In this way, TL-WPA4220 simplifies your Wi-Fi configuration and allows for seamless roaming within your home network.
One Touch Super Range Extension
With a Wi-Fi Clone Button enabling Super Range Extension, the TL-WPA4220 can automatically copy the wireless network name (SSID) and Password of your router at the push of a button. After the pressing the button, you can place the powerline adapter anywhere you want wired or wireless access and enjoy seamless networking across your entire home or office.
Up to 500Mbps - Ideal for HD Video Streaming
With advanced HomePlug AV technology, TL-WPA4220 provides you with stable, high-speed data transfer rates of up to 500Mbps on a line length of up to 300 meters. It is a great choice for a whole home solution to connect all network compatible devices--from computers, game consoles to set-top boxes for IPTV to printers and NAS hard drives.
Extend WiFi Coverage to Every Room
With wireless speeds of up to 300Mbps, you can effortlessly extend your WiFi network via the existing powerline and broadcast a wireless signal to share with all your WiFi enabled devices in another area of your home or office.
