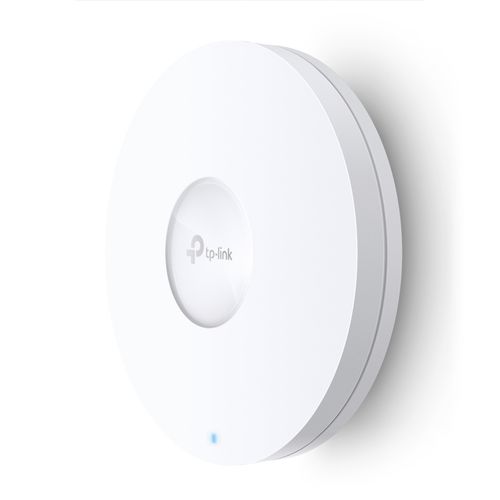

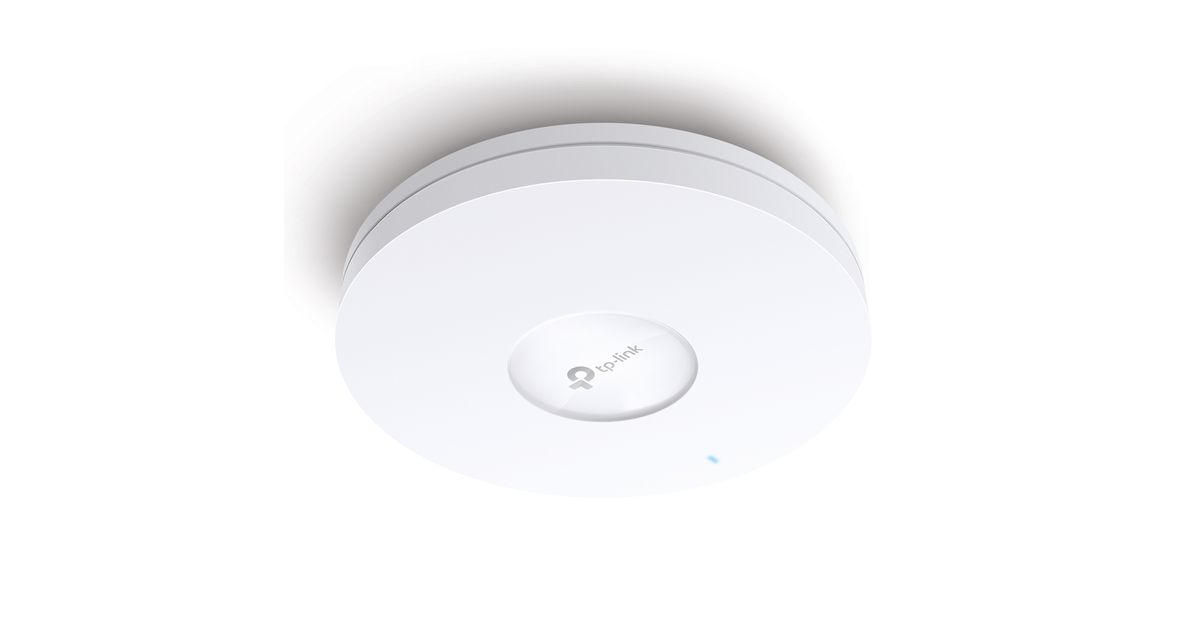

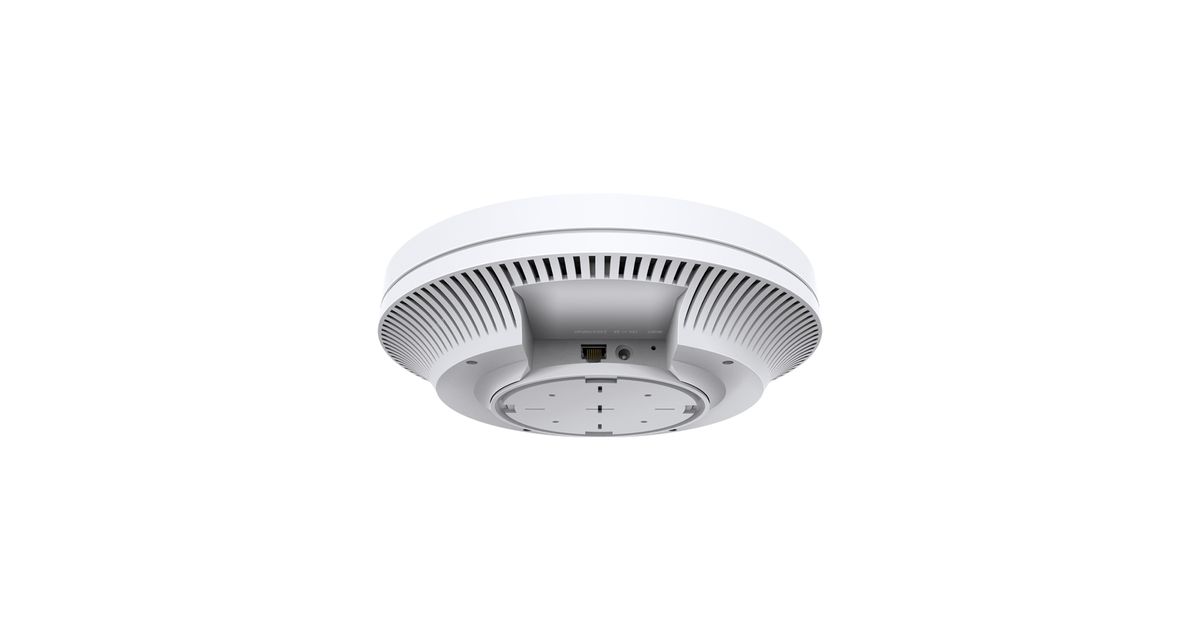

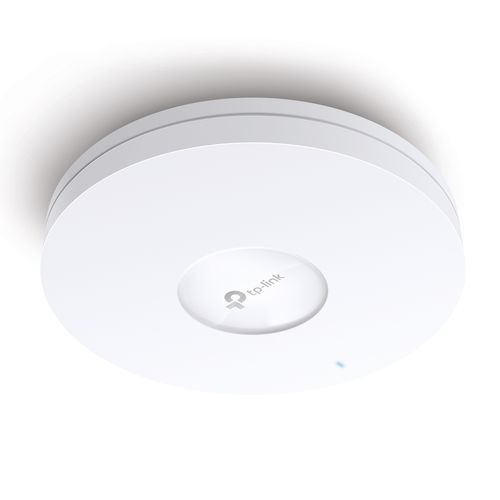

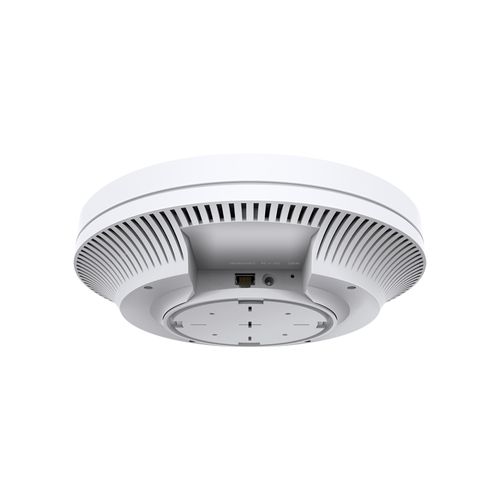

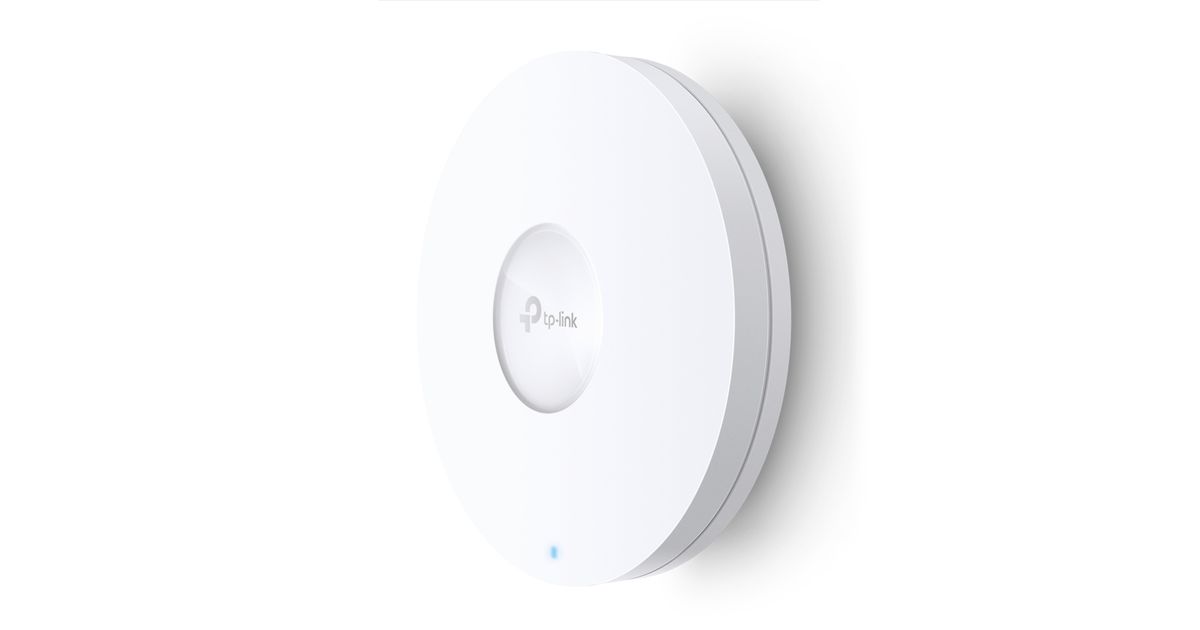

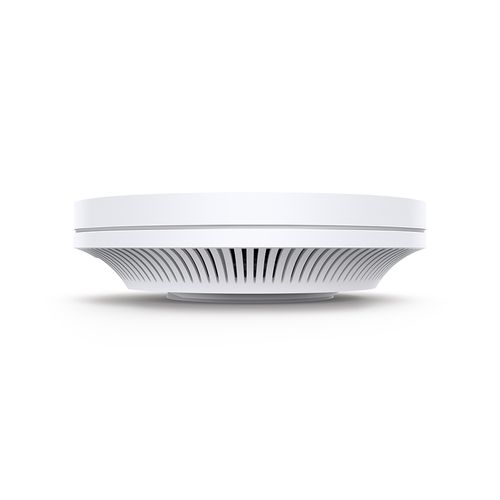

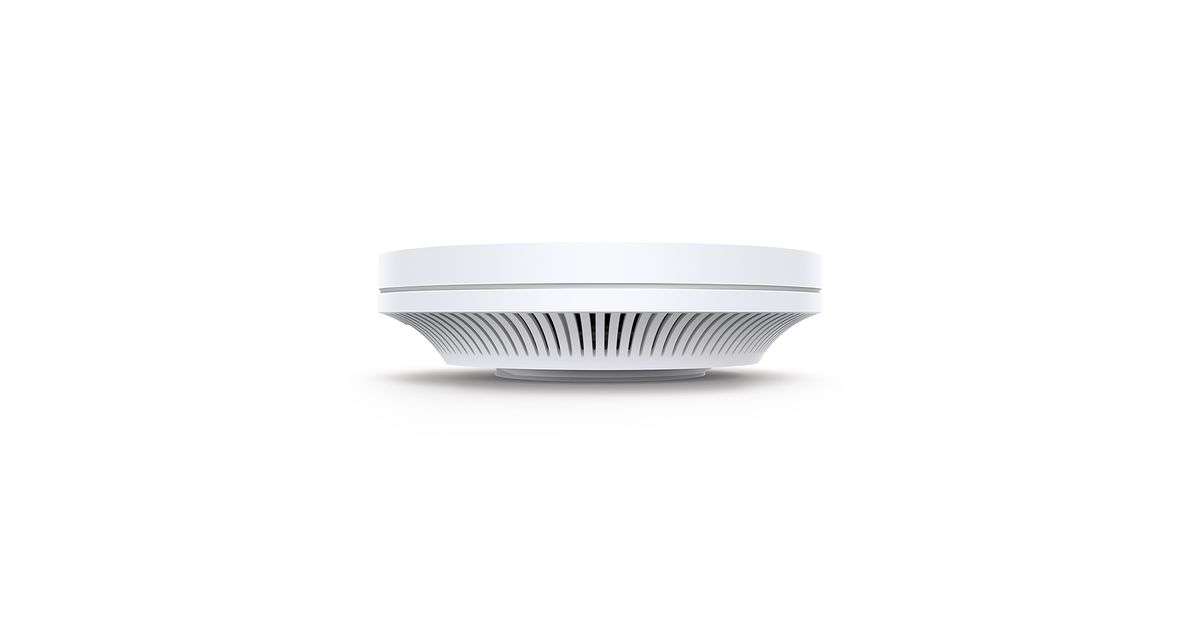

TP-LINK AX1800 Wireless Dual Band Ceiling Mount Access Point
TP-LINK AX1800 Wireless Dual Band Ceiling Mount Access Point, 1800 Mbit/s, 574 Mbit/s, 1201 Mbit/s, 1000 Mbit/s, 2.4 - 5 GHz, IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3at
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 214123482 |
| EAN | 00845973088637 |
| Manufacturer part number | KMTPLAP00000030 |
| Category | Access points and routers |
| Features | |
|---|---|
| 2.4 GHz | Y |
| 5 GHz | Y |
| Maximum data transfer rate | 1800 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 574 Mbit/s |
| Maximum data transfer rate (5 GHz) | 1201 Mbit/s |
| MIMO type | Multi User MIMO |
| Modulation | 1024-QAM,OFDM |
| Wi-Fi Multimedia (WMM)/(WME) | Y |
| Band steering | Y |
| Placement | Ceiling, Wall |
| Certification | CE, FCC, RoHS |
| Antenna type | Internal |
| Antenna gain level (max) | 6 dBi |
| Network | |
|---|---|
| Ethernet LAN data rates | 1000 Mbit/s |
| VLAN support | Y |
| Virtual LAN features | VLAN mapping |
| Rate limiting | Y |
| Security algorithms | SNMP,SNMPv2,SNMPv3,SSH,WEP,WPA-Enterprise,WPA-PSK,WPA2-Enterprise,WPA2-PSK,WPA3,WPA3-PSK |
| Mouse | |
|---|---|
| Frequency band | 2.4 - 5 GHz |
| Other features | |
|---|---|
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3at |
| Compatible operating systems | Microsoft Windows XP, Vista, Windows 7, Windows 8, Windows10, Linux |
| Quick start guide | Y |
| Management features | |
|---|---|
| MIMO | Y |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Design | |
|---|---|
| Transmitting power (CE) | 20/23 dBm |
| Transmitting power (FCC) | 23 dBm |
| Product colour | White |
| Reset button | Y |
| Security | |
|---|---|
| Service Set Identifier (SSID) features | Multiple SSIDs |
| Number of SSID supported | 16 |
| Performance | |
|---|---|
| Syslog | Y |
| Firmware upgradeable | Y |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Y |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power | |
|---|---|
| Output voltage | 12 V |
| Power consumption (typical) | 12 W |
| Antenna | |
|---|---|
| Antenna direction type | Omni-directional |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 243 mm |
| Depth | 243 mm |
| Height | 64 mm |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
| Packaging content | |
|---|---|
| AC adapter included | Y |
Product Description
High-Density Connectivity with 4× Increased Capacity
OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.
Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
OFDMA* and Uplink & Downlink MU-MIMO increase network capacity by up to 4× versus Wi-Fi 5 (802.11ac) in high-density environments to connect more devices simultaneously. Leverage multi-user capabilities and upgrade your business like never before.
Advanced Wi-Fi Speed with 4 Spatial Streams
The Omada Wi-Fi 6 Access Point features the latest 802.11ax technologies like 1024 QAM and Long OFDM Symbol, which allows the EAP to boost overall speeds up to 1775 Mbps (1201 Mbps on a 5 GHz band and 574 Mbps on a 2.4 GHz band). With 8 spatial streams, multi-user throughput is incredibly increased to drive more applications.
Omada SDN—Smarter Cloud Solution for Business Networking
Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches and gateways, guaranteeing powerful business network with higher efficiency, higher security, and higher reliability.
Seamless Roaming
802.11k/v roaming switches clients automatically to the AP with the optimal signal with a seamless transition when moving. This allows sensitive applications like VoIP and video conferences to go uninterrupted.
Secure Guest Network with Facebook Wi-Fi and SMS Login
Guest Network provides elevated secure access to guests sharing your Wi-Fi network, with captive portal helping maintain only authorized guests to use the network. The addition of SMS and Facebook authentication simplifies the captive portal even further to simplify connectivity and power up your business.
