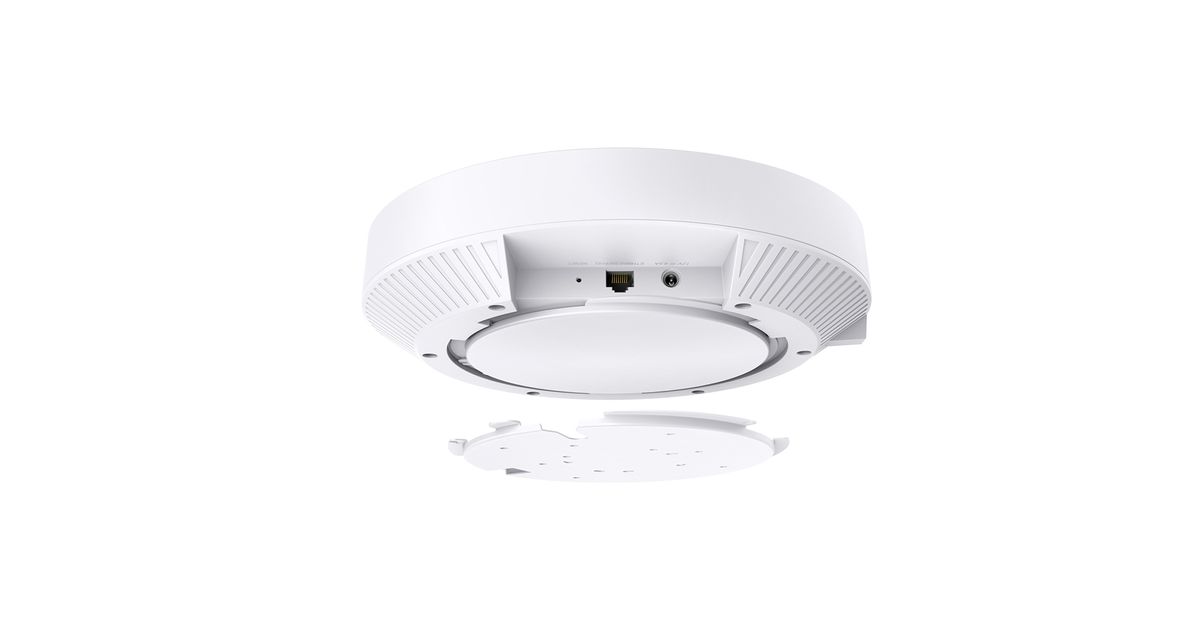

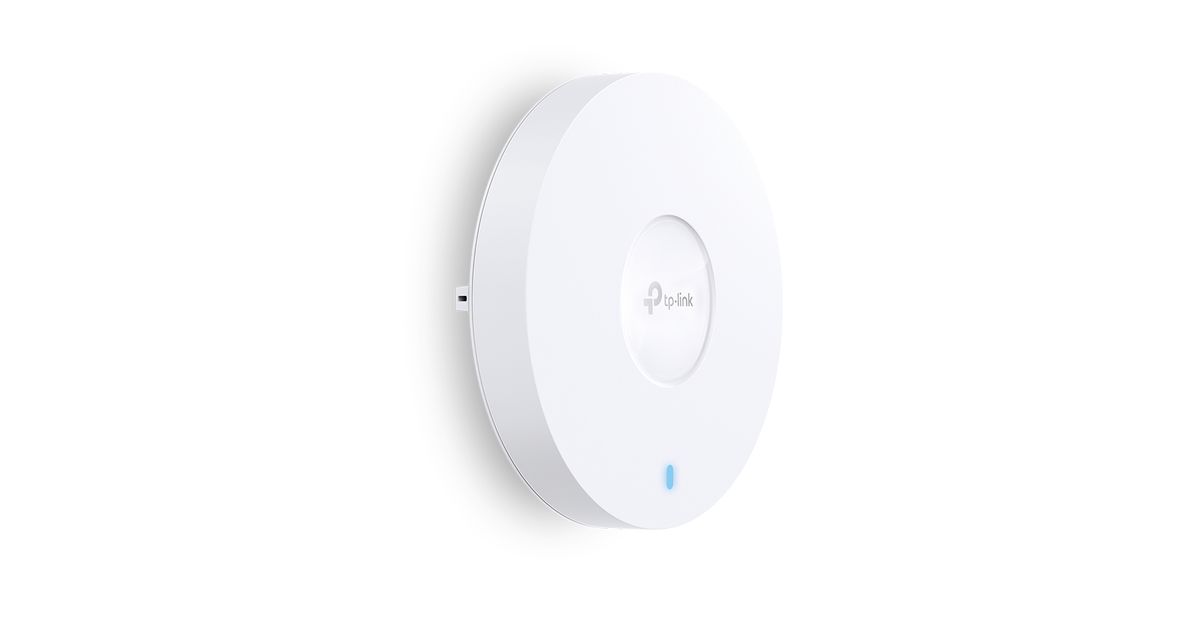

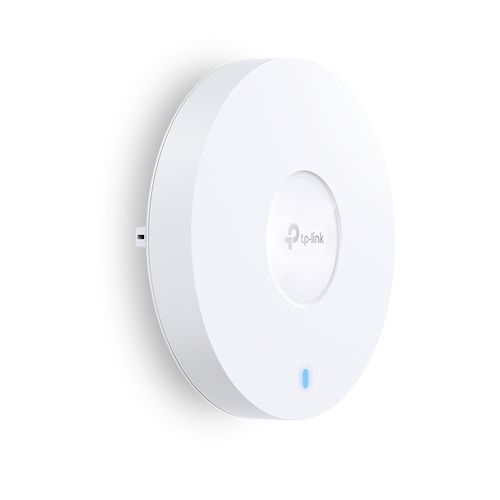

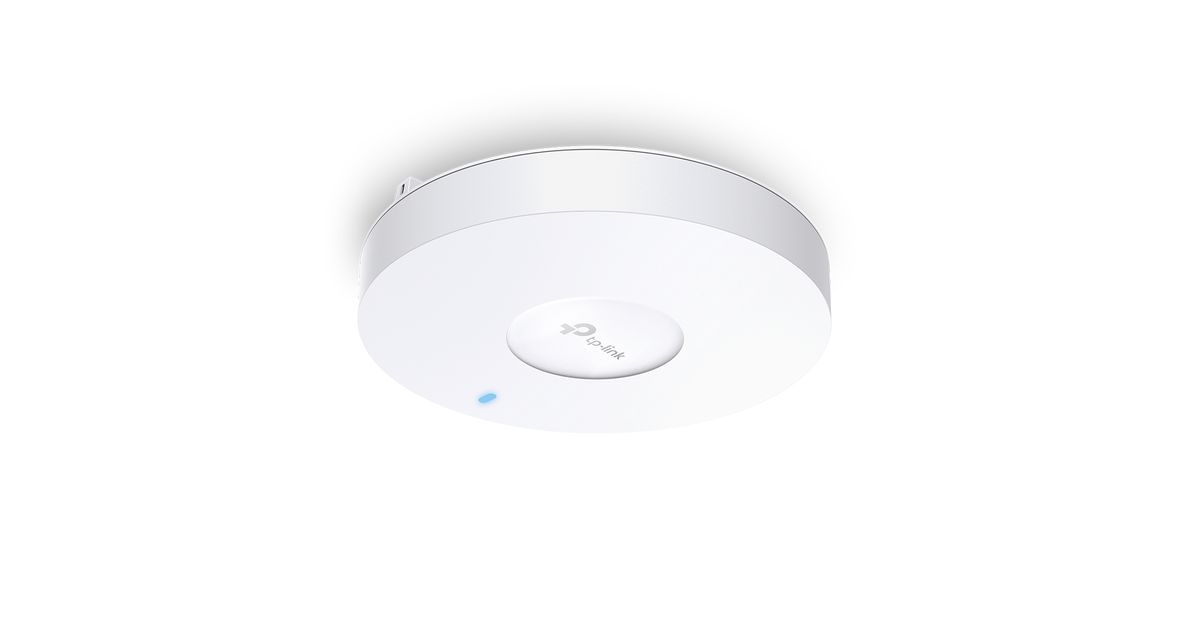

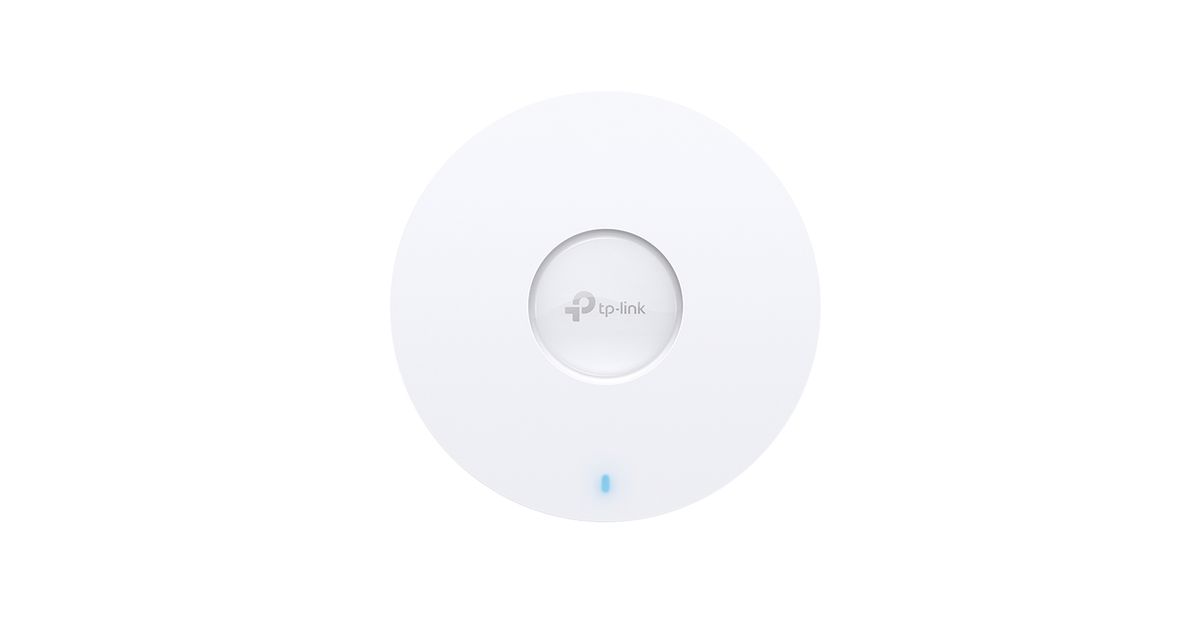

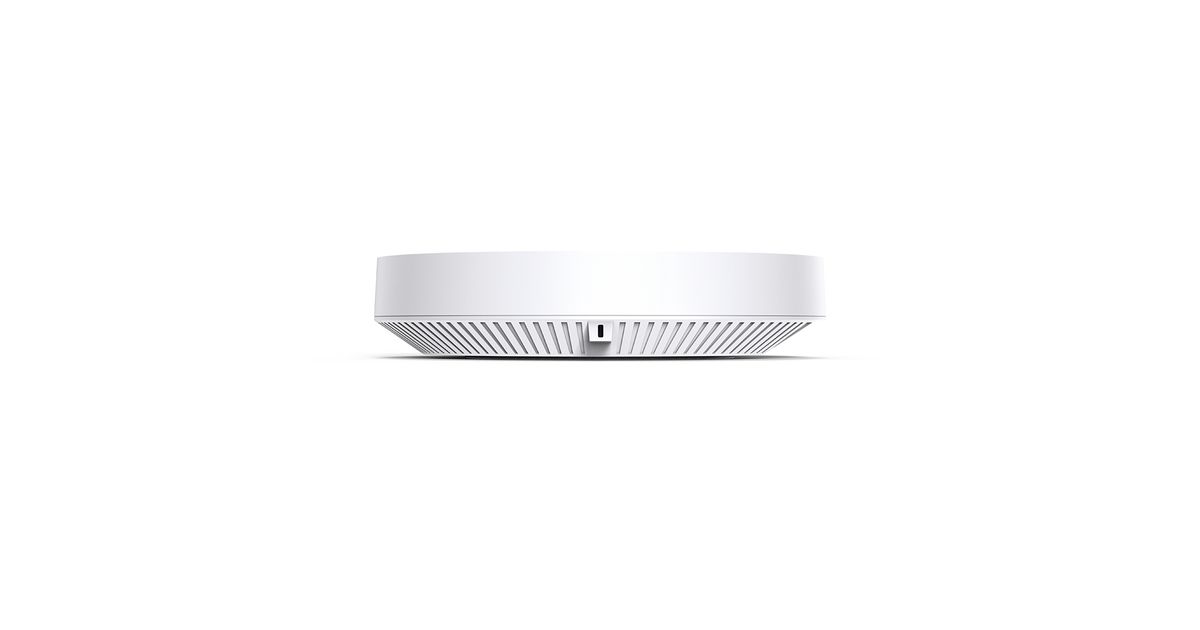

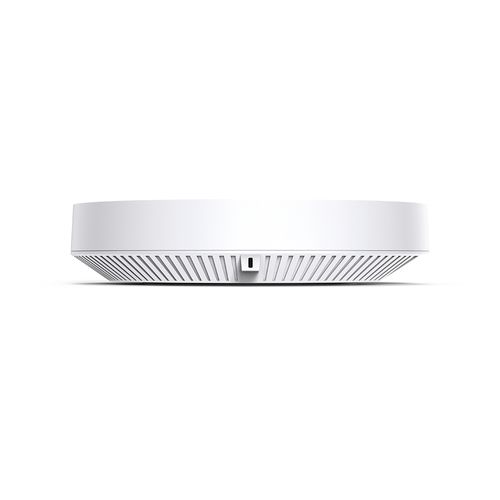

TP-Link AXE11000 Ceiling Mount Quad-Band WiFi 6E Access Point
TP-Link AXE11000 Ceiling Mount Quad-Band WiFi 6E Access Point, 11000 Mbit/s, 1148 Mbit/s, 2402 Mbit/s, 4804 Mbit/s, 10000 Mbit/s, 2.4 / 5 / 5 / 6 GHz
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 349291789 |
| EAN | 00840030708350 |
| Manufacturer part number | EAP690E HD |
| Category | Access points and routers |
| Features | |
|---|---|
| 2.4 GHz | Y |
| 5 GHz | Y |
| 6 GHz | Y |
| Maximum data transfer rate | 11000 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 1148 Mbit/s |
| Maximum data transfer rate (5 GHz) | 2402 Mbit/s |
| Maximum data transfer rate (6 GHz) | 4804 Mbit/s |
| Placement | Pole, Wall |
| Certification | CE, FCC, RoHS, IC |
| Antenna type | Internal |
| Network | |
|---|---|
| Ethernet LAN data rates | 10000 Mbit/s |
| Security algorithms | WPA, WPA-Enterprise, WPA2, WPA2-Enterprise, WPA3, WPA3-Enterprise |
| Mouse | |
|---|---|
| Frequency band | 2.4 / 5 / 5 / 6 GHz |
| Other features | |
|---|---|
| Networking standards | IEEE 802.11a, IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| DC-in jack | Y |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power | |
|---|---|
| Output voltage | 12 V |
| Output current | 4.5 A |
| Design | |
|---|---|
| Product colour | White |
| Reset button | Y |
| Weight & dimensions | |
|---|---|
| Width | 280 mm |
| Depth | 280 mm |
| Height | 59.1 mm |
| Packaging data | |
|---|---|
| Number of products included | 1 pc(s) |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
Product Description
Next-Gen AXE11000 Enterprise Wireless
for High-Density Environments
High-Density Connectivity
Capable of connecting up to 2,000+ clients
Ultra-Fast AXE11000 WiFi 6 Speed
Simultaneous 4804 Mbps on 6 GHz, 4804 Mbps on 5 GHz, and 1148 Mbps on 2.4 GHz for 10.8 Gbps
Centralized Cloud Management
Manage the whole network with cloud access or the Omada app
Smart Antennas
Professional Smart Antenna technology and intelligent algorithms
10GE Wired Performance
Boosts overall throughput with a 10 Gbps Ethernet port
160 MHz Bandwidth Channel
Double the data at peak transmission times on a single stream with HE160
Omada Mesh Technology
More flexible and convenient wireless deployment
PoE++ Support
Supports Power over Ethernet (802.3bt) for convenient deployment
Experience the Peak of WiFi with Smart Antennas
Improve performance, lower interference, and extend coverage for user-heavy scenarios through TP-Link Smart Antenna technology. Equipped with an ingenious 6 GHz/5 GHz/2.4 GHz antenna array, EAP690E HD automatically selects the optimal antennas to cover all terminal devices via intelligent algorithms, delivering lag-free and superb WiFi experiences.
Reliable Business Networks with Intelligent Power Supply
With the intelligent power supply feature of EAP690E HD, the PoE switch can act as a backup power source. Intelligent power supply automatically and smoothly powers EAP690E HD when the DC adapter is accidentally disconnected, delivering a reliable and safe business network experience.
Seamless Integration into Omada SDN
The Omada Software Defined Networking (SDN) platform integrates network devices including access points, switches, and routers to provide 100% centralized cloud management and create a highly scalable network—all controlled from a single interface. Experience total control at your fingertips.
Auto Channel Selection and Power Adjustment to Optimize Overall Performance
Provides powerful wireless performance that significantly reduces WiFi interference by automatically adjusting the channel settings and transmission power levels of neighboring APs in the same network
Easy Deployment & Higher Performance by Omada Mesh
Easy Pairing, Less Wiring
With Mesh technology, Omada APs save you from redundant wires by wirelessly extending your WiFi signal farther and more flexibly to hard-to-wire areas.
Boosted Network Security and Efficiency
Secure Guest Network with up to 32 SSIDs
Guest network access provides enhanced security to guests. Different SSIDs also enable flexible access management.
Boost Business with Facebook WiFi and SMS Login
Captive portal (including SMS, Facebook Wi-Fi, Voucher) and 802.1x authentication help maintain authorized guests to use the network. Boost your business with a customized marketing page.
WPA3 for Worry-Free Open Public Networks
With advanced enterprise security, WPA3 provides more data security for previously unsecured and open WiFi hotspots.
Band Steering
Automatically moves dual band devices onto the wider 5 GHz/6 GHz band for faster connections.
Load Balance
Ensures large numbers of users have smooth network experiences in high-density business networks.
Airtime Fairness
Increases average network throughput in heavily congested environments.
