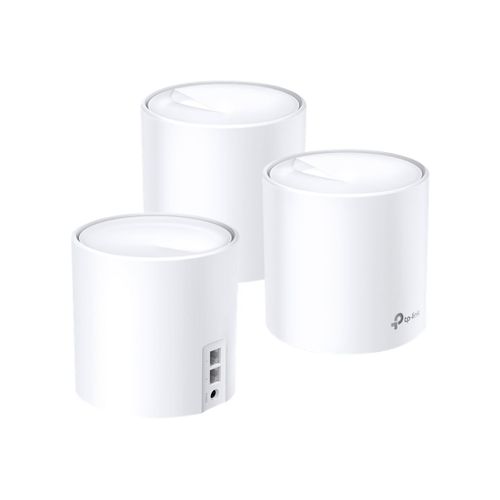

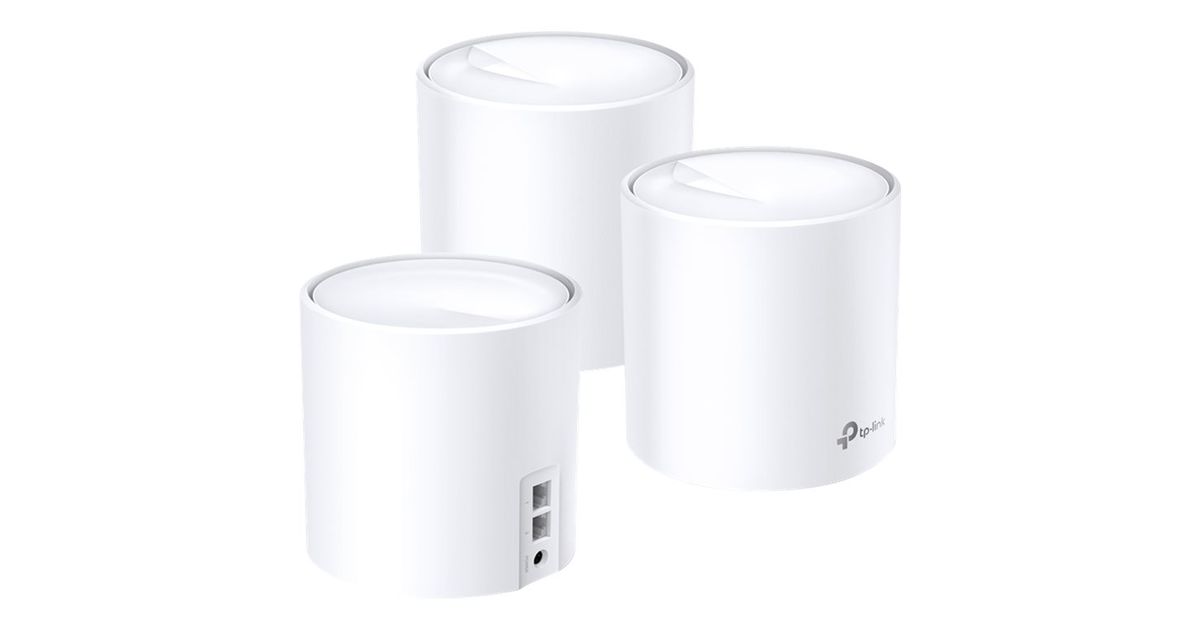

TP-LINK DECO X20 (3-PACK) wireless router Gigabit Ethernet Dual-band (2.4 GHz / 5 GHz) White
TP-LINK DECO X20 (3-PACK), Wi-Fi 5 (802.11ac), Dual-band (2.4 GHz / 5 GHz), Ethernet LAN, White, Tabletop router
Read more...
Read more...
Product Information
Information | |
---|---|
Manufacturer | TP-Link |
Product code | 183875083 |
EAN | 00840030700330 |
Manufacturer part number | Deco X20 (3-Pack) |
Category | Routers |
WAN connection | |
---|---|
Ethernet WAN | Y |
SIM card slot | N |
3G/4G USB modem compatibility | N |
WAN connection type | RJ-45 |
Network | |
---|---|
Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
Top Wi-Fi standard | Wi-Fi 5 (802.11ac) |
Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n),Wi-Fi 5 (802.11ac),Wi-Fi 6 (802.11ax) |
Ethernet LAN | Y |
Ethernet LAN interface type | Gigabit Ethernet |
Ethernet LAN data rates | 10,100,1000 Mbit/s |
Cabling technology | 10/100/1000Base-T(X) |
4G | N |
Security algorithms | WPA-PSK,WPA2-PSK,WPA3 |
DHCP client | Y |
Wireless LAN features | |
---|---|
WLAN data transfer rate (max) | 1201 Mbit/s |
WLAN data transfer rate (first band) | 1201 Mbit/s |
WLAN data transfer rate (second band) | 574 Mbit/s |
Features | |
---|---|
Modulation | 1024-QAM |
Antenna type | Internal |
Built-in processor | Y |
Maximum data transfer rate | 1 Mbit/s |
Other features | |
---|---|
Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11ax,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
Antennas quantity | 4 |
Quick start guide | Y |
Mobile network | |
---|---|
3G | N |
Ports & interfaces | |
---|---|
Ethernet LAN (RJ-45) ports | 2 |
USB port | N |
Memory card slot(s) | N |
DC-in jack | Y |
Management features | |
---|---|
Web-based management | Y |
Quality of Service (QoS) support | Y |
Design | |
---|---|
Reset button | Y |
Product type | Tabletop router |
Product colour | White |
Security | |
---|---|
Firewall | Y |
Firewall security | SPI |
Guest access | Y |
Access Control List (ACL) | Y |
Performance | |
---|---|
DHCP server | Y |
Power source type | DC |
Protocols | |
---|---|
Supported network protocols | IPv4, IPv6 |
Ergonomics | |
---|---|
Indication light | Y |
Antenna | |
---|---|
Transmit power | FCC: <30 dBm, CE: <20 dBm (2.4 GHz), <23 dBm (5 GHz) |
Processor | |
---|---|
Processor frequency | 1000 MHz |
Processor cores | 4 |
Operational conditions | |
---|---|
Operating temperature (T-T) | 0 - 40 °C |
Storage temperature (T-T) | -40 - 70 °C |
Operating relative humidity (H-H) | 10 - 90% |
Storage relative humidity (H-H) | 5 - 90% |
Weight & dimensions | |
---|---|
Width | 110 mm |
Depth | 110 mm |
Height | 114 mm |
Packaging content | |
---|---|
Cables included | AC, LAN (RJ-45) |
AC adapter included | Y |
Manual | Y |
Packaging data | |
---|---|
Quick installation guide | Y |
Package type | Box |
Number of products included | 3 pc(s) |
Product Description

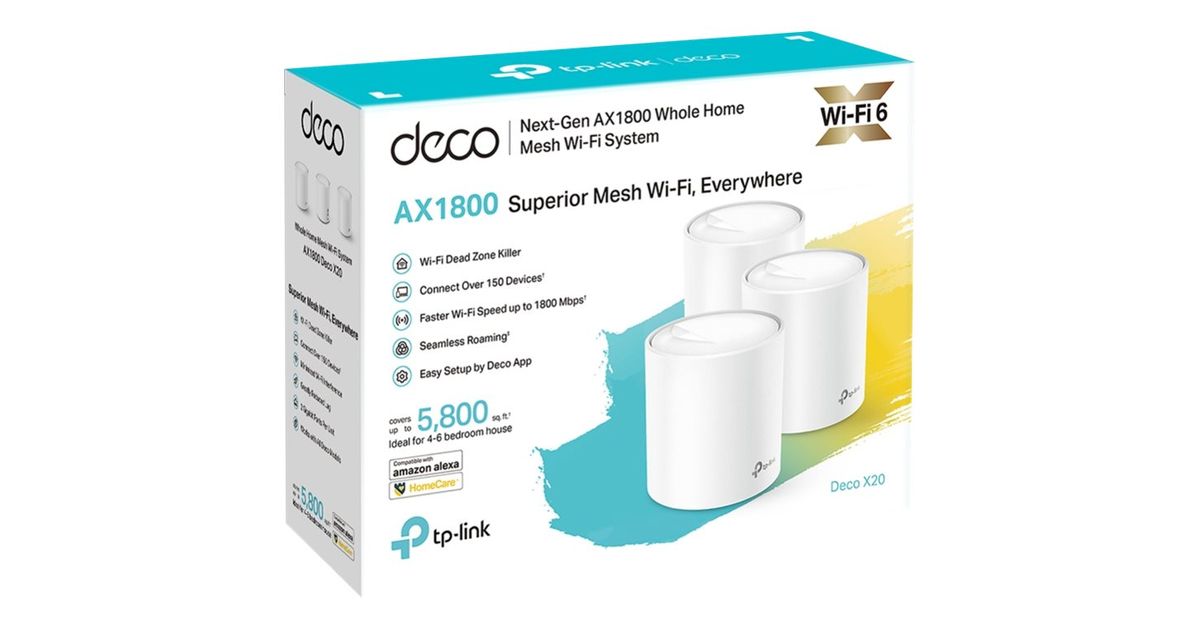

Advanced Mesh Powered by Wi-Fi 6
Armed with Wi-Fi 6 technology, Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.
Wi-Fi Dead Zone Killer
With clearer and stronger signals enhanced by BSS Color and Beamforming, Deco X20 boosts broader whole home Wi-Fi up to 5,800 ft2 (3-pack).† Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another Deco.
True Seamless Roaming for Greater Experiences
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.
More Connections for Immersive Streaming
Enjoy a more efficient network with 4× the average throughput on connected devices in dense environments thanks to Wi-Fi 6 technology△. Deco X20 is tested to connect over 150 devices without dragging down performance.
Faster Wi-Fi 6 Speed = No Wait
The latest 1024-QAM and higher symbol rate combines to boost speeds up to 1.8 Gbps—ideal for bandwidth-intensive tasks like cloud gaming and 4K UHD video. Families will enjoy immersive live-streaming with flawless video and clear audio without buffering.
Greatly Reduced Lag, More Fun
Wi-Fi 6 brings stable and responsive Wi-Fi connections to tomorrow's hyper-connected home. Enjoy more responsive gaming and seamless video chatting even when multiple compatible devices are connected and transmitting data at the same time
Setup Just Got a Lot Easier
Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest, getting your network up and running in minutes.
Armed with Wi-Fi 6 technology, Deco whole home mesh Wi-Fi is designed to deliver a huge boost in coverage, speed, and total capacity. Get on the latest mesh Wi-Fi to enjoy the future network that loads faster and connects more.
Wi-Fi Dead Zone Killer
With clearer and stronger signals enhanced by BSS Color and Beamforming, Deco X20 boosts broader whole home Wi-Fi up to 5,800 ft2 (3-pack).† Wireless connections and optional Ethernet backhaul work together to link Deco units, providing even faster network speeds and truly seamless coverage. Want more coverage? Simply add another Deco.
True Seamless Roaming for Greater Experiences
TP-Link Mesh means Deco units work together to form one unified network. Your phone or tablet automatically connects to the fastest Deco as you move through your home, creating a truly seamless Wi-Fi experience.
More Connections for Immersive Streaming
Enjoy a more efficient network with 4× the average throughput on connected devices in dense environments thanks to Wi-Fi 6 technology△. Deco X20 is tested to connect over 150 devices without dragging down performance.
Faster Wi-Fi 6 Speed = No Wait
The latest 1024-QAM and higher symbol rate combines to boost speeds up to 1.8 Gbps—ideal for bandwidth-intensive tasks like cloud gaming and 4K UHD video. Families will enjoy immersive live-streaming with flawless video and clear audio without buffering.
Greatly Reduced Lag, More Fun
Wi-Fi 6 brings stable and responsive Wi-Fi connections to tomorrow's hyper-connected home. Enjoy more responsive gaming and seamless video chatting even when multiple compatible devices are connected and transmitting data at the same time
Setup Just Got a Lot Easier
Unbox Deco, install the app and then simply follow the on-screen directions. Deco app will take care of the rest, getting your network up and running in minutes.
