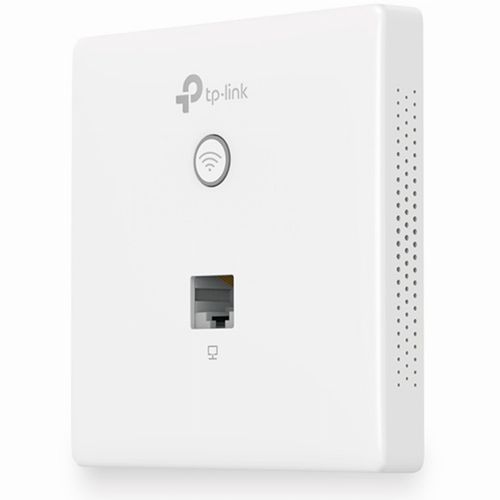

TP-LINK EAP115-WALL wireless access point 300 Mbit/s White Power over Ethernet (PoE)
TP-LINK EAP115-WALL, 300 Mbit/s, 300 Mbit/s, 10,100 Mbit/s, IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3af,IEEE 802.3u, 10/100Base-T(X), 15 dBmW
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 07293165 |
| EAN | 06935364096670 |
| Manufacturer part number | EAP115-Wall V1 |
| Category | Access points and routers |
| Features | |
|---|---|
| 2.4 GHz | Y |
| 5 GHz | N |
| Maximum data transfer rate | 300 Mbit/s |
| Maximum data transfer rate (2.4 GHz) | 300 Mbit/s |
| Wi-Fi Multimedia (WMM)/(WME) | Y |
| Wireless isolation | Y |
| Transmitting power | 15 dBmW |
| Placement | Wall |
| Antenna type | Internal |
| Antenna gain level (max) | 1.8 dBi |
| Network | |
|---|---|
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Automatic channel selection | Y |
| Rate limiting | Y |
| Security algorithms | 802.1x RADIUS,HTTPS,WPA,WPA-PSK,WPA2,WPA2-PSK |
| Other features | |
|---|---|
| Networking standards | IEEE 802.11a,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n,IEEE 802.3,IEEE 802.3af,IEEE 802.3u |
| Antennas quantity | 2 |
| Management features | |
|---|---|
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Security | |
|---|---|
| MAC address filtering | Y |
| Number of SSID supported | 8 |
| Performance | |
|---|---|
| Management protocols | SNMP, Telnet |
| Cable lock slot | N |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | Y |
| Power | |
|---|---|
| Power consumption (typical) | 2.8 W |
| Design | |
|---|---|
| Product colour | White |
| Reset button | Y |
| LED indicators | Y |
| Operational conditions | |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 86.8 mm |
| Depth | 30.2 mm |
| Height | 86.8 mm |
Product Description
300Mbps Wireless N Wall-Plate Access Point
