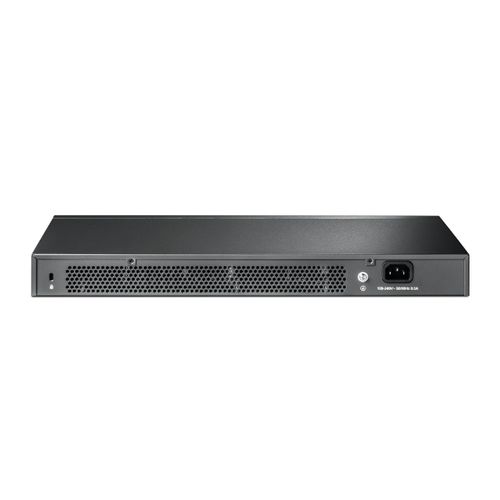

For illustrative purpose only
TP-Link JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
TP-Link JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots, Managed, L2/L3, Gigabit Ethernet (10/100/1000), Rack mounting, 1U
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 214123476 |
| EAN | 00845973010140 |
| Manufacturer part number | TL-SG3428 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Managed |
| Switch layer | L2/L3 |
| Quality of Service (QoS) support | Y |
| Web-based management | Y |
| Cloud-managed | Y |
| ARP inspection | Y |
| System event log | Y |
| MIB support | Yes |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Gigabit Ethernet (10/100/1000) |
| Gigabit Ethernet (copper) ports quantity | 24 |
| SFP module slots quantity | 4 |
| Console port | RJ-45/Micro-USB |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3ab, IEEE 802.3i, IEEE 802.3u, IEEE 802.3z |
| Number of VLANs | 4000 |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Port mirroring | Y |
| Policy-based routing | Y |
| Link aggregation | Y |
| Broadcast storm control | Y |
| Rate limiting | Y |
| Spanning tree protocol | Y |
| Head-of-line (HOL) blocking | Y |
| Ethernet LAN data rates | 10,100,1000 Mbit/s |
| VLAN support | Y |
| Virtual LAN features | Private VLAN, Protocol-based VLAN, Tagged VLAN, Voice VLAN |
| Features | |
|---|---|
| Flow control support | Y |
| Harmonized System (HS) code | 85176990 |
| Data transmission | |
|---|---|
| MAC address table | 16000 entries |
| Switching capacity | 56 Gbit/s |
| Forwarding rate | 41.66 Mpps |
| Store-and-forward | Y |
| Static route | Y |
| Number of static routes | 48 |
| Jumbo frames support | Y |
| Jumbo frames | 9000 |
| Packet buffer memory | 12 MB |
| Security | |
|---|---|
| DHCP features | DHCP client, DHCP relay, DHCP server, DHCP snooping, DHCPv6 client, DHCPv6 snooping |
| Access Control List (ACL) | Y |
| IGMP snooping | Y |
| MAC address filtering | Y |
| Static port security | Y |
| SSH/SSL support | Y |
| Loop protection | Y |
| BPDU filtering/protection | Y |
| IP-MAC-Port binding | Y |
| Authentication | MAC-based authentication, Port-based authentication |
| Multicast features | |
|---|---|
| Multicast support | Y |
| Performance | |
|---|---|
| Management protocols | SNMPv1/v2c/v3, SNTP |
| Heat dissipation | 65.58 BTU/h |
| Protocols | |
|---|---|
| GARP VLAN Registration Protocol (GVRP) | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Form factor | 1U |
| Product colour | Black |
| LED indicators | Y |
| Power | |
|---|---|
| Power source | AC |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (max) | 19.22 W |
| Power supply | |
|---|---|
| Power supply included | N |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
Product Description
Convenient Gigabit Switch for a Complete Omada Network
JetStream 24-Port Gigabit L2 Managed Switch with 4 SFP Slots
Software-Defined Networking (SDN) with Cloud Access
Omada’s Software-Defined Networking (SDN) platform integrates network devices, including access points, switches and gateways, providing 100% centralized cloud management. Omada creates a highly scalable network—all controlled from a single interface. Seamless wireless and wired connections are provided, ideal for use in hospitality, education, retail, offices, and more.
Secure Networking
Security features include IP-MAC-Port-VID Binding, Port Security, Storm Control, and DHCP Snooping to defend against a range of network threats. An integrated list of common DoS attacks is available, making it easier than ever to prevent them. Also, the Access Control Lists (ACL, L2 to L4) feature restricts access to sensitive network resources by denying packets based on source and destination MAC address, IP address, TCP/UDP ports, or VLAN ID. Users’ network access can be controlled via 802.1X authentication, which works with a RADIUS/Tacacs+ server to grant access only when valid user credentials are provided.
Advanced QoS
Voice and video traffic can be prioritized based on IP address, MAC address, TCP port number, UDP port number, and more. With QoS (Quality of Service), voice and video services remain smooth, even when bandwidth is in short supply.
Abundant L2 and L2+ Features
A complete lineup of L2 features is supported including 802.1Q VLAN, Port Mirroring, STP/RSTP/MSTP, Link Aggregation Control Protocol, and 802.3x Flow Control. Advanced IGMP Snooping ensures the switch intelligently forwards multicast streams to only the appropriate subscribers, cutting out unnecessary traffic, while IGMP throttling & filtering restrict each subscriber on a port level to prevent unauthorized multicast access. Static Routing is a simple way of segmenting the network and internally routs traffic through the switch for improved efficiency.
ISP Features
sFlow, QinQ, L2PT PPPoE ID Insertion, and IGMP authentication features are provided, developed with service providers in mind. 802.3ah OAM and Device Link Detection Protocol (DLDP) offer easy monitoring and troubleshooting of Ethernet links.
IPv6 Support
IPv6 functions such as Dual IPv4/IPv6 Stack, MLD Snooping, IPv6 ACL, DHCPv6 Snooping, IPv6 Interface, Path Maximum Transmission Unit (PMTU) Discovery and IPv6 Neighbor Discover guarantee your network is ready for the Next Generation Network (NGN) without upgrading your hardware.
Enterprise Level Management Features
Easy to manage via an intuitive web-based Graphical User Interface (GUI) or an industry-standard Command Line Interface (CLI). For both management methods, traffic is protected through SSL or SSH encryption. SNMP (v1/v2c/v3) and RMON support enable the switch to be polled for valuable status information and to send traps on abnormal events.
