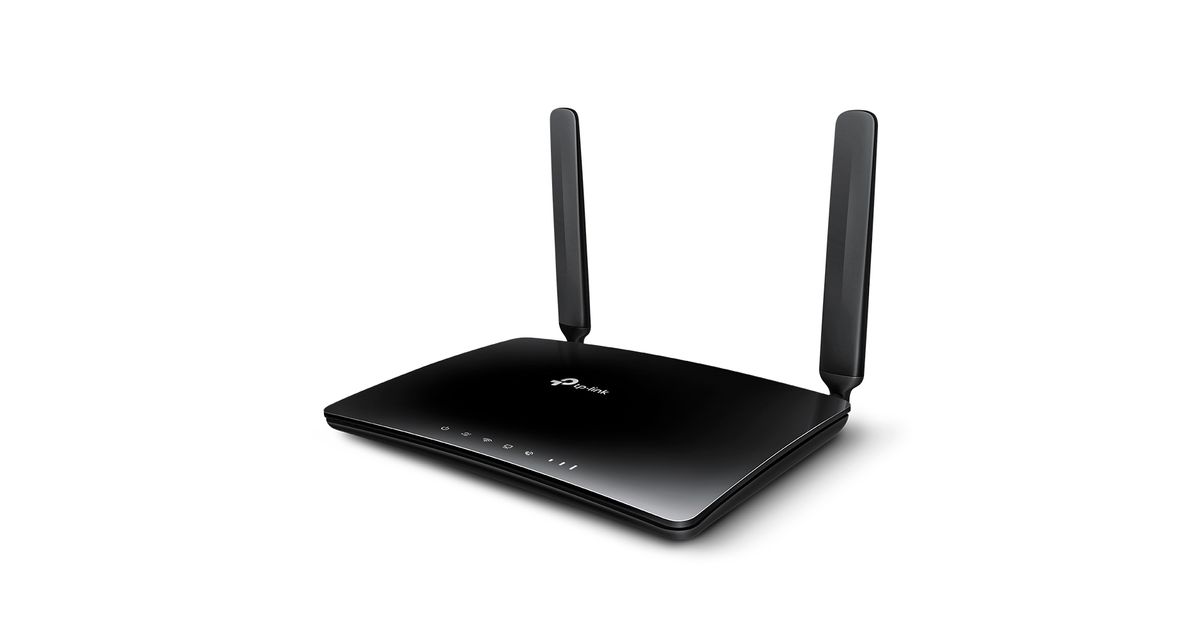

TP-LINK N300 4G LTE Telephony WiFi Router
TP-LINK N300 4G LTE Telephony WiFi Router, Wi-Fi 4 (802.11n), Single-band (2.4 GHz), Ethernet LAN, 3G, Black, Tabletop router
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 184272374 |
| EAN | 06935364072377 |
| Manufacturer part number | KMTPLRGSM000015 |
| Category | DSL routers |
| WAN connection | |
|---|---|
| Ethernet WAN | Y |
| SIM card slot | Y |
| 3G/4G USB modem compatibility | Y |
| WAN connection type | RJ-45 |
| Network | |
|---|---|
| Dual SIM support | N |
| Wi-Fi band | Single-band (2.4 GHz) |
| Top Wi-Fi standard | Wi-Fi 4 (802.11n) |
| Wi-Fi standards | 802.11a,802.11b,802.11g,Wi-Fi 4 (802.11n) |
| Ethernet LAN | Y |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Cabling technology | 10/100Base-T(X) |
| Port forwarding | Y |
| Port triggering | Y |
| Dynamic DNS (DDNS) | Y |
| 4G | Y |
| 3G standards | DC-HSPA+,HSPA,HSPA+,UMTS |
| 4G standard | LTE-TDD & LTE-FDD |
| 4G bands supported | 800,900,1800,2100,2600 MHz |
| Security algorithms | 64-bit WEP,128-bit WEP,WPA,WPA-PSK,WPA2,WPA2-PSK |
| DHCP client | Y |
| Wireless LAN features | |
|---|---|
| WLAN data transfer rate (max) | 300 Mbit/s |
| WLAN data transfer rate (first band) | 300 Mbit/s |
| Other features | |
|---|---|
| Networking standards | IEEE 802.11a,IEEE 802.11ac,IEEE 802.11b,IEEE 802.11g,IEEE 802.11n |
| Antennas quantity | 2 |
| Data transmission | |
|---|---|
| Static route | Y |
| Features | |
|---|---|
| Number of guest networks (2.4 GHz) | 1 |
| Number of guest networks (5 GHz) | 1 |
| Filtering | Y |
| Wall mountable | Y |
| Antenna type | External |
| Security | |
|---|---|
| VPN tunnels quantity | 10 |
| WPS push button | Y |
| Firewall | Y |
| Mobile network | |
|---|---|
| 3G | Y |
| UMTS bands supported | 900,2100 MHz |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| USB port | N |
| RJ-11 ports quantity | 1 |
| Memory card slot(s) | N |
| DC-in jack | Y |
| Design | |
|---|---|
| Reset button | Y |
| Product type | Tabletop router |
| Product colour | Black |
| On/off switch | Y |
| Protocols | |
|---|---|
| DMZ support | Y |
| Universal Plug and Play (UPnP) | Y |
| Performance | |
|---|---|
| DHCP server | Y |
| Power source type | DC |
| Antenna | |
|---|---|
| Detachable antenna(s) | Y |
| Power | |
|---|---|
| Output voltage | 12 V |
| Output current | 1 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 202 mm |
| Depth | 141 mm |
| Height | 33.6 mm |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
| AC adapter included | Y |
| Packaging data | |
|---|---|
| Quick installation guide | Y |
Product Description
Enjoy WiFi and Phone Calls All in One 4G Router
4G LTE Telephony Modem Router
Plug and Play,
No Configuration
With an integrated 4G LTE modem and a built-in SIM card slot, all you need to do is insert a micro SIM card and turn on the router. Enjoying fast, stable WiFi on a 4G LTE network has never been easier.
Share WiFi over a 4G Network
— Flexible and Stable
Simply build your home WiFi network via 4G broadband access with download speeds of up to 150 Mbps. You can share the internet with multiple WiFi devices to enjoy uninterrupted HD movies, rapid file downloads, seamless video chats, and more at the same time.
Enjoy WiFi and Phone Calls Simultaneously
TL-MR6500v is not only a WiFi router and modem combo, but also a phone. It has a phone port to connect your existing landline phone so that you can make phone calls and surf the internet at the same time. Moreover, various voice functions are supported including VoIP, VoLTE, and CSFB. Simply enjoy a professional and high-quality voice call as you like.
Built-in Storage for Voicemail
Instead of paying for a voicemail service from your ISP, get free access if you own this modem/router/phone combo. With 50 MB of internet storage, TL-MR6500v records 100 minutes of voicemail. Never worry about missing any calls or messages when away from home.
Special Design for Maximum Network Coverage
Two detachable advanced antennas reinforce the wireless connection between the router and every device with more stability and flexibility. A built-in power amplifier and low noise amplifier also help provide wider coverage by improving the router’s sending and receiving capabilities.
Used for up to 32 Devices with Superior Stability
Easily share a 3G/4G connection with up to 32 wireless devices, such as phones, tablets, and laptops, at the same time. 3 LAN ports stand ready to provide internet for wired devices like desktop computers, printers, and more.
Available WAN Connection Backup
With a fully functional WAN/LAN Port, TL-MR6500v also works as a router which is compatible with cable, fiber, and DSL modem. Its WAN and 3G/4G failover backup strategy keeps a sustained internet connection no matter your situation.
Control at Your Fingertips
The powerful Tether app lets you monitor and manage your network settings easily from your phone (Android or iOS).
Easily set up Parental Controls, Guest Network, and QoS for your home network via Tether.
