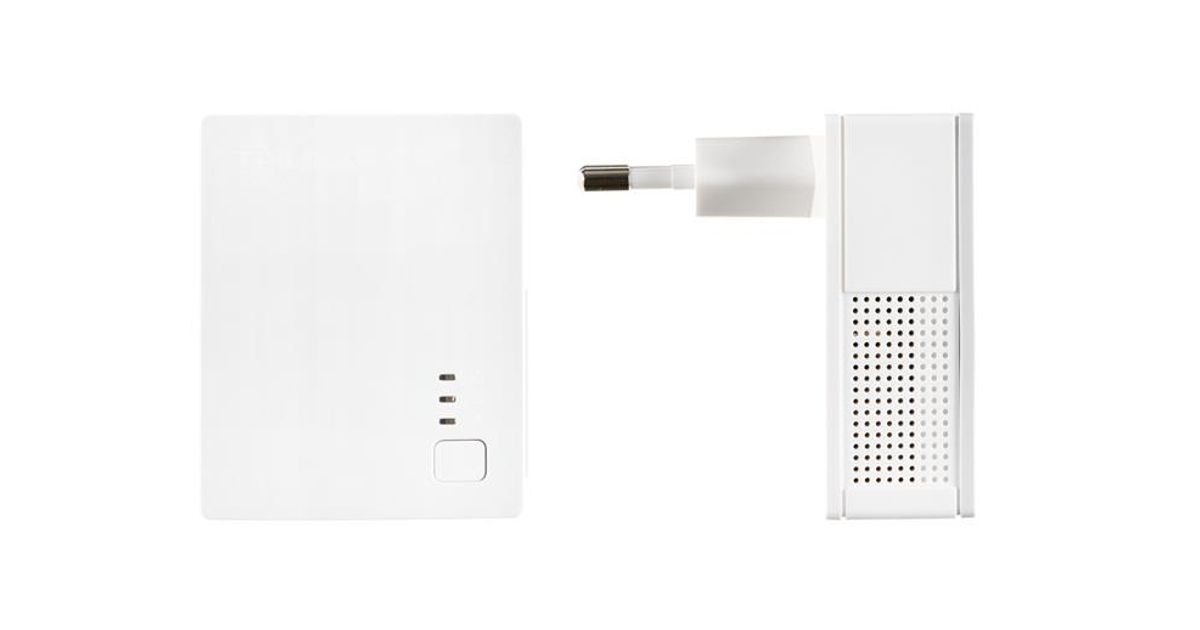

TP-LINK TL-PA4010KIT 600 Mbit/s Ethernet LAN White 2 pc(s)
TP-LINK TL-PA4010KIT, 600 Mbit/s, IEEE 802.3,IEEE 802.3u, Fast Ethernet, 10,100 Mbit/s, 10BASE-T,100BASE-TX, HomePlug AV
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 07293138 |
| EAN | 05055851275379 |
| Manufacturer part number | TLPA4010StarterKit |
| Category | Powerline |
| Features | |
|---|---|
| Maximum data transfer rate | 600 Mbit/s |
| Modulation | OFDM |
| Plug and Play | Y |
| Certification | CE, FCC |
| Linux operating systems supported | Y |
| Network | |
|---|---|
| Ethernet LAN | Y |
| Wi-Fi | N |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Copper ethernet cabling technology | 10BASE-T,100BASE-TX |
| Security algorithms | 128-bit AES |
| Maximum operating distance | 300 m |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3,IEEE 802.3u |
| Performance | |
|---|---|
| Built-in power socket | N |
| PowerLine standard | HomePlug AV |
| Encryption button | Y |
| Ports & interfaces | |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Power | |
|---|---|
| Power consumption (typical) | 4.26 W |
| Power consumption (standby) | 0.88 W |
| Design | |
|---|---|
| Product colour | White |
| LED indicators | Y |
| Software | |
|---|---|
| Windows operating systems supported | Y |
| Mac compatibility | Y |
| Mac operating systems supported | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 65 mm |
| Depth | 52 mm |
| Height | 28.5 mm |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Packaging data | |
|---|---|
| Quantity per pack | 2 pc(s) |
| Quick installation guide | Y |
| Packaging content | |
|---|---|
| Cables included | LAN (RJ-45) |
Product Description
600Mbps Powerline Speeds Ideal for HD Streaming
Using advanced Home Plug AV technology, TL-PA4010 KIT provides users with stable, high-speed data transfer rates of up to 600Mbps on a line length of up to 300 meters. With speed of up to 600Mbps,
TL-PA4010 KIT enables heavy-bandwidth applications like HD streaming, on-line gaming and large file downloading, turning your home into a robust and high-speed networking.
Miniature Design
With its new ultra-compact housing design, TL-PA4010 KIT is much smaller than TP-Link’s legacy mini 600Mbps powerline products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.
Pair Button for Easy Network Security
Simply by pushing the Pair button on the adapters, users can set up a hassle-free Powerline network within minutes, complete with 128-bit AES encryption for network security and data protection.
It's that simple!
1. Plug the adapter into the power outlet
2. Connect the device via the network cable to the adapter
3. Press the pair buttons—and you're done!
Using advanced Home Plug AV technology, TL-PA4010 KIT provides users with stable, high-speed data transfer rates of up to 600Mbps on a line length of up to 300 meters. With speed of up to 600Mbps,
TL-PA4010 KIT enables heavy-bandwidth applications like HD streaming, on-line gaming and large file downloading, turning your home into a robust and high-speed networking.
Miniature Design
With its new ultra-compact housing design, TL-PA4010 KIT is much smaller than TP-Link’s legacy mini 600Mbps powerline products. At just 28.5mm thick, it nearly blends completely in front of any power outlet.
Pair Button for Easy Network Security
Simply by pushing the Pair button on the adapters, users can set up a hassle-free Powerline network within minutes, complete with 128-bit AES encryption for network security and data protection.
It's that simple!
1. Plug the adapter into the power outlet
2. Connect the device via the network cable to the adapter
3. Press the pair buttons—and you're done!
