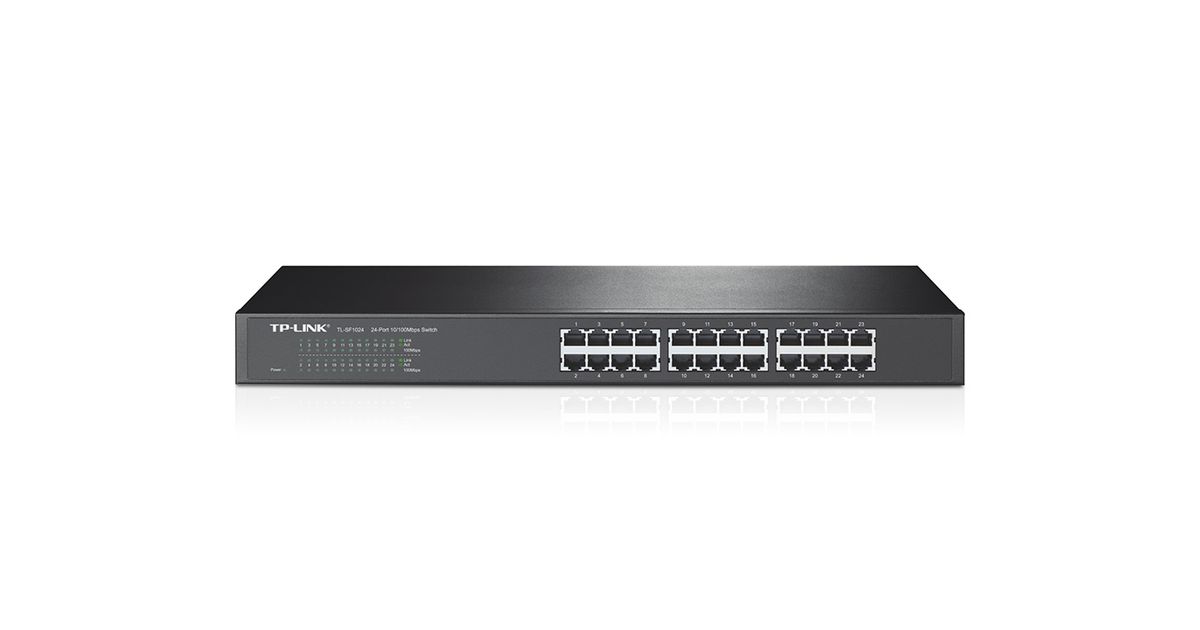

TP-LINK TL-SF1024 network switch Unmanaged Fast Ethernet (10/100) Black
TP-LINK TL-SF1024, Unmanaged, Fast Ethernet (10/100), Full duplex, Rack mounting
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | TP-Link |
| Product code | 12318796 |
| EAN | 00809186279640 |
| Manufacturer part number | TLSF1024 |
| Category | Switches & accessories |
| Management features | |
|---|---|
| Switch type | Unmanaged |
| Ports & interfaces | |
|---|---|
| Basic switching RJ-45 Ethernet ports quantity | 24 |
| Basic switching RJ-45 Ethernet ports type | Fast Ethernet (10/100) |
| Fast Ethernet (copper) ports quantity | 24 |
| Power connector | DC-in jack |
| Other features | |
|---|---|
| Networking standards | IEEE 802.3,IEEE 802.3u,IEEE 802.3x |
| Quick start guide | Y |
| Network | |
|---|---|
| 10G support | N |
| Cable types supported | Cat3,Cat4,Cat5,Cat5e |
| Routing entries | 1 |
| Auto MDI/MDI-X | Y |
| Features | |
|---|---|
| Full duplex | Y |
| Flow control support | Y |
| Certification | FCC, CE, RoHS |
| Data transmission | |
|---|---|
| MAC address table | 8000 entries |
| Switching capacity | 4.8 Gbit/s |
| Store-and-forward | Y |
| Security | |
|---|---|
| MAC address filtering | Y |
| Design | |
|---|---|
| Rack mounting | Y |
| Stackable | N |
| Product colour | Black |
| LED indicators | Activity, Link |
| Logistics data | |
|---|---|
| Shipping (inner) case height | 1 mm |
| Shipping (inner) case width | 1 mm |
| Shipping (inner) case length | 1 mm |
| Shipping (inner) case net weight | 1 g |
| Products per shipping (inner) case | 11 pc(s) |
| Master (outer) cases per pallet layer | 1 pc(s) |
| Pallet gross weight (air) | 1 g |
| Master (outer) cases per pallet (air) | 11 pc(s) |
| Products per pallet (air) | 1 pc(s) |
| Pallet gross length | 1 mm |
| Pallet gross width | 1 mm |
| Pallet height (air) | 1.1 cm |
| Pallet gross weight (sea) | 1 g |
| Master (outer) cases per pallet (sea) | 1 pc(s) |
| Products per pallet (sea) | 1 pc(s) |
| Pallet height (sea) | 1.1 cm |
| Power supply | |
|---|---|
| Power supply included | Y |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50/60 Hz |
| Power consumption (typical) | 3.53 W |
| Power over Ethernet (PoE) | |
|---|---|
| Power over Ethernet (PoE) | N |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -40 - 70 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 5 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 440 mm |
| Depth | 180 mm |
| Height | 44 mm |
| Other information | |
|---|---|
| Layers per pallet (air) | 1 pc(s) |
| Layers per pallet (sea) | 1 pc(s) |
Product Description
What This Product Does
The 24-Port 10/100Mbps Rackmount Switch TL-SF1024 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024 work reliably.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
The 24-Port 10/100Mbps Rackmount Switch TL-SF1024 provides you with a high-performance, low-cost, easy-to-use, seamless and standard upgrade to improve old network to 100Mbps network. All 24 ports support auto MDI/MDIX, no need to worry about the cable type, simply plug and play. Moreover, with the innovative energy-efficient technology, the TL-SF1024 can save up to 75%* of the power consumption and 80% of the packaging material can be recycled, making it an eco-friendly solution for your business network.
TP-LINK Green Technology
This new generation The 24-Port 10/100Mbps Switch TL-SF1024D features the latest innovative energy-efficient technologies that can greatly expand your network capacity with much less power. It automatically adjusts power consumption according to the link status and cable length to limit the carbon footprint of your network. It also complies with the EU'S RoHS, prohibiting the use of certain hazardous materials. Besides, 80% of the packaging material can be recycled.
High Performance
The rack-mount size steel case design, combined with a safety-certified internal power supply, make the switch the most robust product, which is very cost-effective for a less than 16-user environment. Featuring non-blocking switching architecture, TL-SF1024 forwards and filters packets at full wire-speed for maximum throughput. And IEEE 802.3x flow control for Full Duplex mode and backpressure for Half Duplex mode alleviate the traffic congestion and make TL-SF1024 work reliably.
Easy to Use
The auto features of this fast ethernet switch make installation plug and play and hassle-free. No configuring is required. Auto MDI/MDIX eliminates the need for crossover cables. Auto-negotiation on each port senses the link speed of a network device (10, 100 Mbps) and intelligently adjusts for compatibility and optimal performance.
