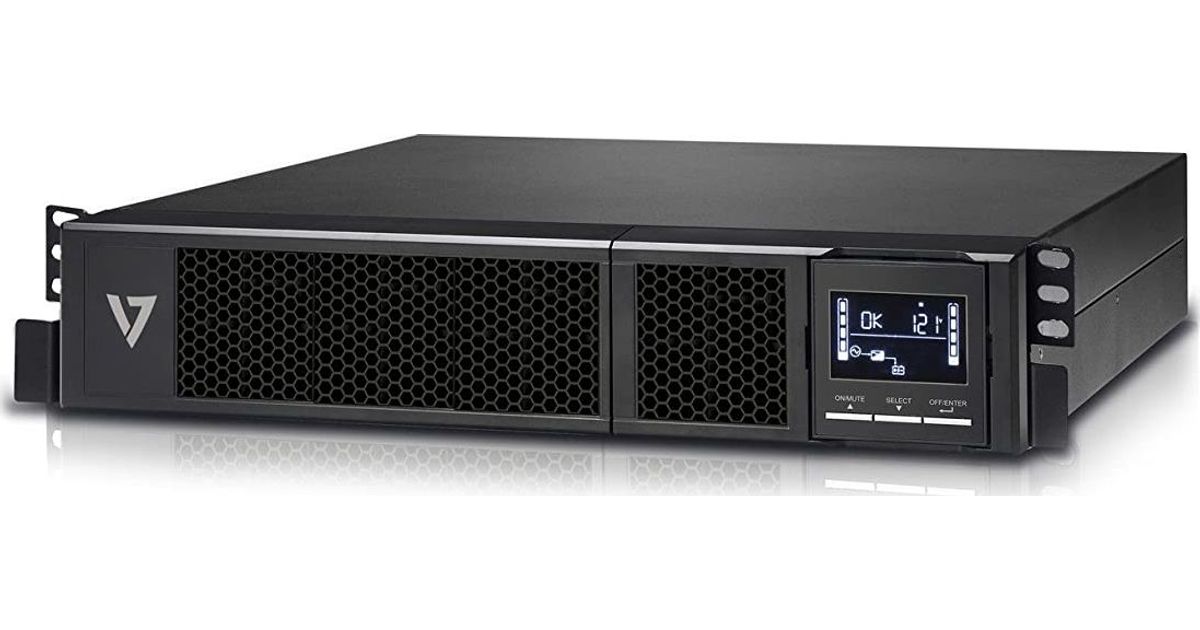

V7 UPS 3000VA Rack Mount 2U EU
V7 UPS 3000VA Rack Mount 2U EU, Line-Interactive, 3 kVA, 2700 W, Sine, 720 J, 4 ms
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | V7 |
| Product code | 165411705 |
| EAN | 00662919095234 |
| Manufacturer part number | UPS1RM2U3000-1E |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Line-Interactive |
| Output power capacity | 3 kVA |
| Output power | 2700 W |
| Waveform | Sine |
| Hold time (min) | 4 ms |
| Hold time (max) | 8 ms |
| Emergency Power Off (EPO) | Y |
| Surge protection | Y |
| Audible alarm(s) | Y |
| Audible alarm modes | Alarm when on battery, Fault, Low battery alarm, Overload alarm |
| Cable length | 3.05 m |
| Certification | CE, REACH |
| Power | |
|---|---|
| Surge energy rating | 720 J |
| Other features | |
|---|---|
| Noise level | 45 dB |
| USB 2.0 ports quantity | 1 |
| Display | LCD |
| Logistics data | |
|---|---|
| Country of origin | China |
| Ports & interfaces | |
|---|---|
| AC outlet types | IEC Jumpers |
| Number of output IEC jumpers | 8 |
| USB port | Y |
| Serial interface | Y |
| Serial interface type | RS-232 |
| RS-232 ports | 1 |
| Modem (RJ-11) ports | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Emergency Power Off (EPO) connector | Y |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery capacity | 648 VAh |
| Battery voltage | 12 V |
| Typical backup time at full load | 3.7 min |
| Typical backup time at half load | 11.8 min |
| Battery recharge time | 4 h |
| Design | |
|---|---|
| Form factor | Rackmount/Tower |
| Product colour | Black |
| Rack capacity | 2U |
| Cooling type | Active |
| LED indicators | Y |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 90% |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 438 mm |
| Depth | 630 mm |
| Height | 88 mm |
| Weight | 29.3 kg |
| Package weight | 32.6 kg |
| Packaging data | |
|---|---|
| Quick installation guide | Y |
| Package width | 565 mm |
| Package depth | 700 mm |
| Package height | 240 mm |
| Packaging content | |
|---|---|
| Warranty card | Y |
Product Description
Go big with the 3000VA Rack Mount UPS from V7, our most powerful UPS. This Rack Mount UPS provides a backup power source for mission critical equipment in server rooms, data centers, and other vital equipment. It ensures a consistent flow of electricity to help prevent equipment failure and data loss during power failures, brownouts, or other power issues that can occur with power in your building. The USB port allows built in UPS configuration and control, and auto-shutdown features for your computers or servers.
- 3000VA Rack Mount UPS with Pure Sine Wave Output with 8 IEC Outlets
- Boost and Buck AVR automatically adjusts for under-voltage and over-voltage ensuring stable power and longer life batteries.
- ECO (Efficiency Corrective Optimizer) for energy saving and EPO function (Emergency Power Off)
- Programmable power management outlets maximize backup time to critical devices by setting shorter backup time for non-critical devices
- Audio & Visual alarms for immediate warning of battery, load, and other issues
- 3000VA Rack Mount UPS with Pure Sine Wave Output with 8 IEC Outlets
- Boost and Buck AVR automatically adjusts for under-voltage and over-voltage ensuring stable power and longer life batteries.
- ECO (Efficiency Corrective Optimizer) for energy saving and EPO function (Emergency Power Off)
- Programmable power management outlets maximize backup time to critical devices by setting shorter backup time for non-critical devices
- Audio & Visual alarms for immediate warning of battery, load, and other issues
