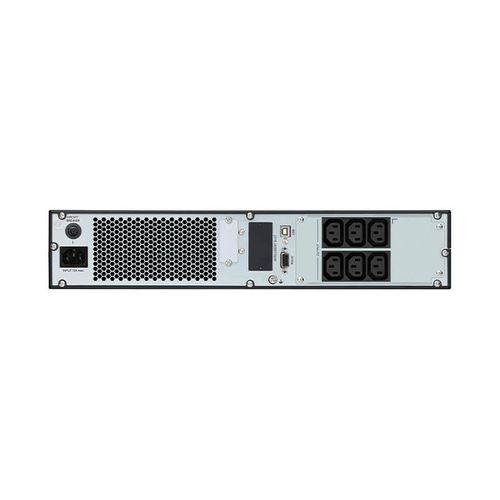

For illustrative purpose only
Vertiv Liebert GXTRT-1000IRT2UXL uninterruptible power supply (UPS) Double-conversion (Online) 1 kVA 900 W 6 AC outlet(s)
Vertiv Liebert GXTRT-1000IRT2UXL, Double-conversion (Online), 1 kVA, 900 W, Pure sine, 176 V, 288 V
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Vertiv |
| Product code | 185717629 |
| EAN | 00767041030945 |
| Manufacturer part number | GXTRT-1000IRT2UXL |
| Category | UPS hardware |
| Features | |
|---|---|
| UPS topology | Double-conversion (Online) |
| Output power capacity | 1 kVA |
| Output power | 900 W |
| Waveform | Pure sine |
| Input operation voltage (min) | 176 V |
| Input operation voltage (max) | 288 V |
| Input frequency | 40 - 70 Hz |
| Output operation voltage (max) | 240 V |
| Output frequency | 50/60 Hz |
| Output voltage regulation | 1% |
| Number of input phases | 1 |
| Number of output phases | 1 |
| Efficiency (On-line mode) | 88% |
| Input power factor | 0.9 |
| Output power factor | 0.9 |
| Emergency Power Off (EPO) | N |
| Power protection features | Overload |
| Audible alarm(s) | Y |
| Certification | CE Mark; IEC/EN 62040-1: 2014, IEC/EN 62040-2:2006+AC:2006 Class A, EN 61000-4-5: 2005 Class 2 L-N, Class 3 L-G, ISTA 2A |
| Power | |
|---|---|
| Efficiency | 88% |
| Power factor | 0.9 |
| Other features | |
|---|---|
| Noise level | 55 dB |
| Display | LCD |
| Ports & interfaces | |
|---|---|
| AC outlet types | C13 coupler |
| Power plug | C14 coupler |
| AC outlets quantity | 6 AC outlet(s) |
| Number of output IEC jumpers | 6 |
| USB port | Y |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 1 |
| Battery | |
|---|---|
| Battery technology | Sealed Lead Acid (VRLA) |
| Battery capacity | 9 Ah |
| Battery voltage | 12 V |
| Number of batteries supported | 2 |
| Typical backup time at full load | 3.1 min |
| Typical backup time at half load | 9 min |
| Hot-swap battery | Y |
| Design | |
|---|---|
| Form factor | Rackmount |
| Product colour | Black |
| Rack capacity | 2U |
| Performance | |
|---|---|
| Safety | CE |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 50 °C |
| Operating relative humidity (H-H) | 20 - 95% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 2000 m |
| Sustainability | |
|---|---|
| Sustainability certificates | RoHS |
| Weight & dimensions | |
|---|---|
| Width | 438 mm |
| Depth | 310 mm |
| Height | 88 mm |
| Weight | 11 kg |
| Package weight | 13.1 kg |
| Packaging content | |
|---|---|
| Rack mount kit | Y |
| Cables included | Input power cable, Output power cable, USB cable |
| Manual | Y |
| Packaging data | |
|---|---|
| Quick installation guide | Y |
| Package width | 600 mm |
| Package depth | 240 mm |
| Package height | 500 mm |
| Logistics data | |
|---|---|
| Shipping (inner) case width | 50 cm |
| Shipping (inner) case length | 60 cm |
| Shipping (inner) case height | 24 cm |
| Shipping (inner) case gross weight | 13.1 kg |
Product Description
The Vertiv Liebert GXT RT+ Uninterruptible Power Supply (UPS) (GXTRT-1000IRT2UXL) offers online technology with two stages of power conversion for high performance yet affordable power protection. It is ideal for edge or space-constrained facilities where reliable, efficient power protection is needed to ensure business continuity. This 1kVA, single phase UPS has flexible rack or tower mounting options, intuitive LCD and compact form factor that enable rapid deployment and seamless network integration.
