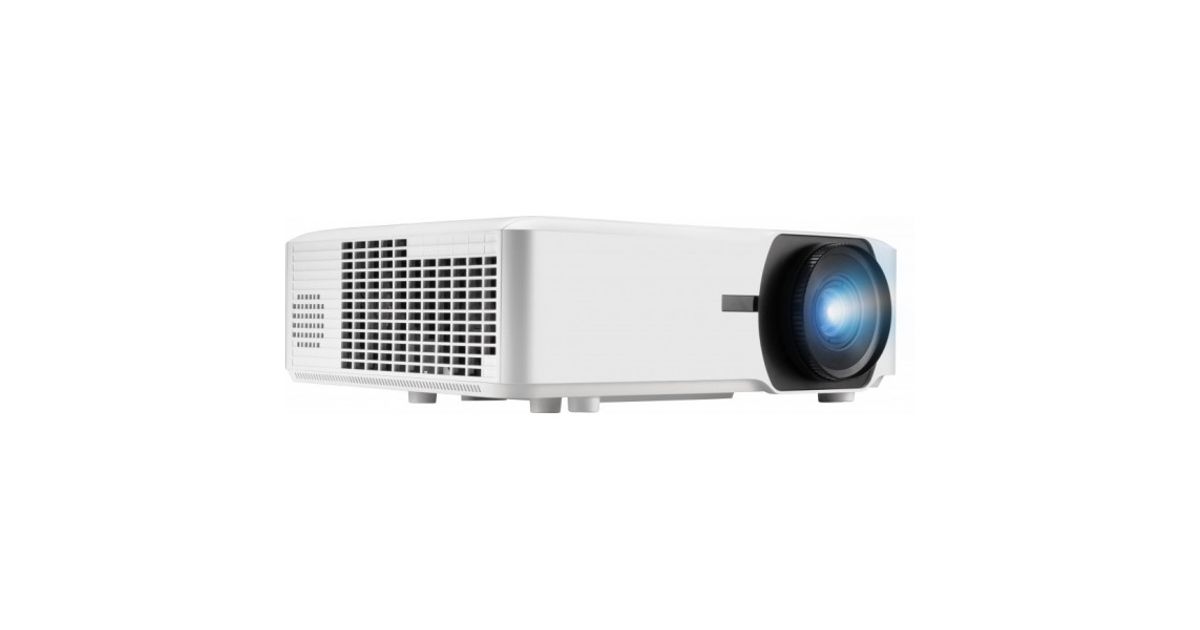

For illustrative purpose only

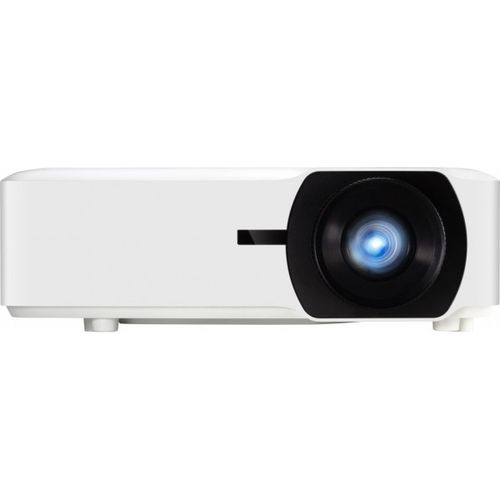

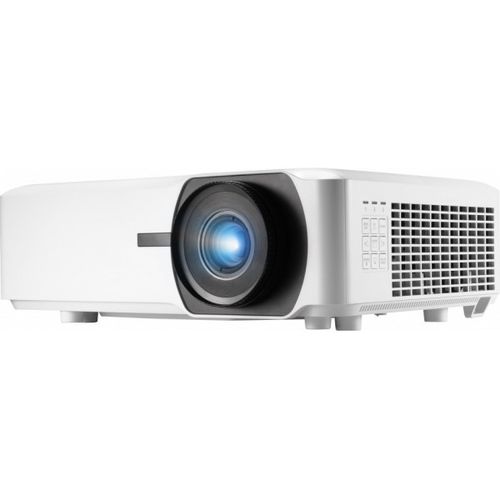

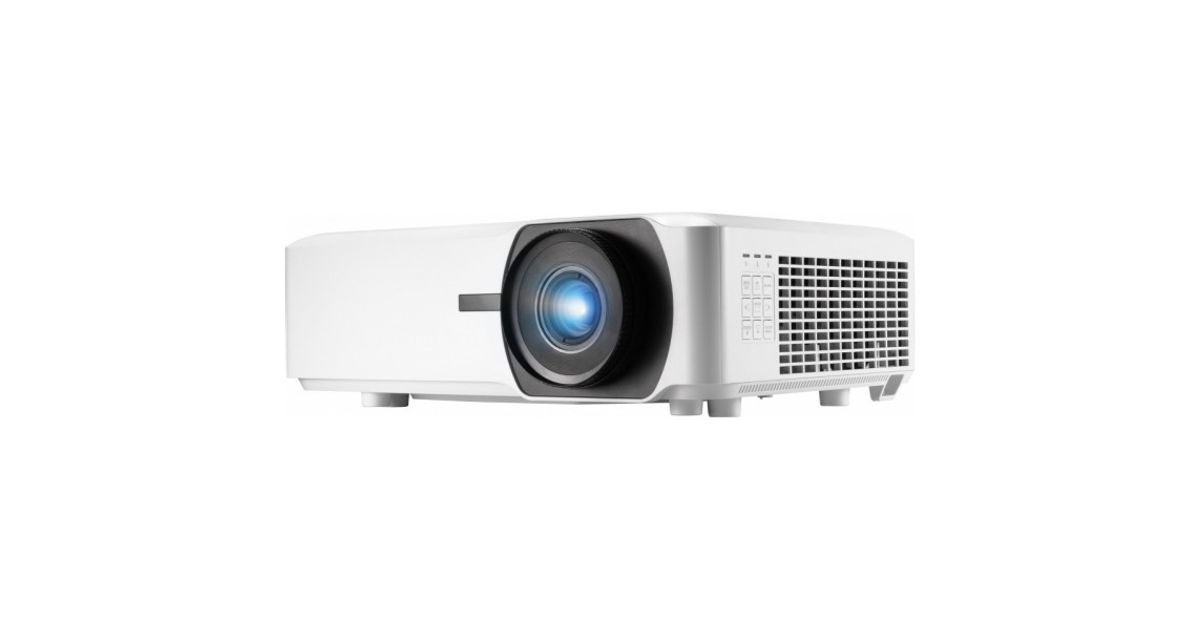

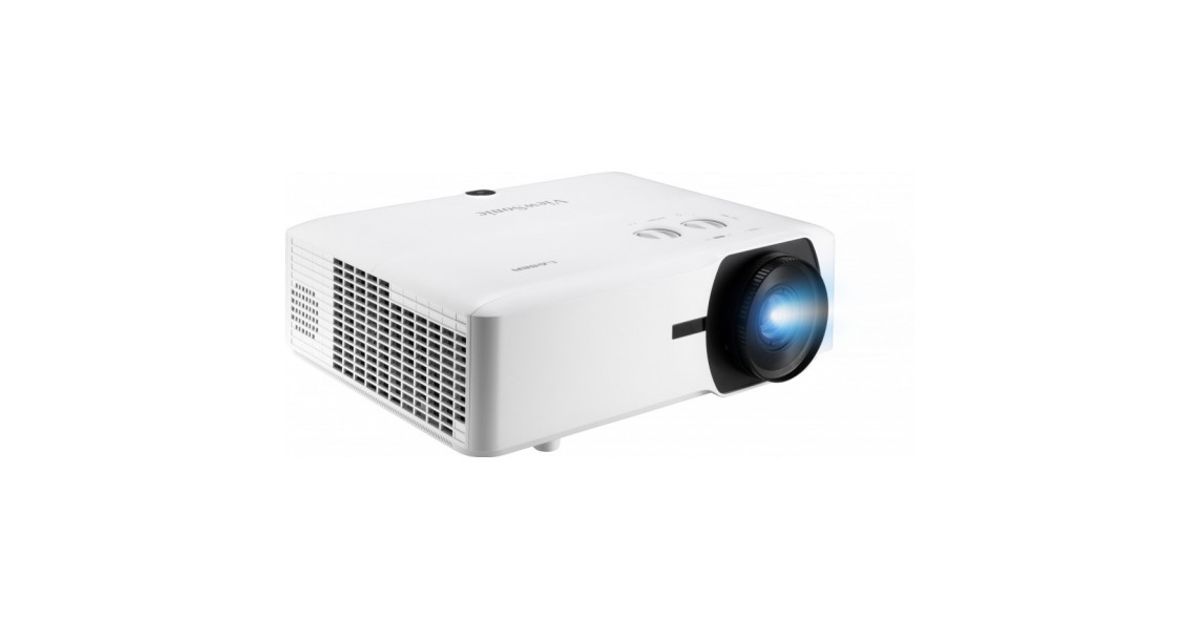

Viewsonic LS920WU data projector Standard throw projector 6000 ANSI lumens DMD WUXGA (1920x1200) White
Viewsonic LS920WU, 6000 ANSI lumens, DMD, WUXGA (1920x1200), 3000000:1, 762 - 7620 mm (30 - 300"), 0.88 - 14.09 m
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Viewsonic |
| Product code | 224609020 |
| EAN | 00766907008715 |
| Manufacturer part number | VS18318 |
| Category | Projectors |
| Projector | |
|---|---|
| Projector brightness | 6000 ANSI lumens |
| Projection technology | DMD |
| Projector native resolution | WUXGA (1920x1200) |
| Projection distance | 0.88 - 14.09 m |
| Number of colours | 1.07 billion colours |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
| Matrix size | 1.22 cm (0.48") |
| Display | |
|---|---|
| Contrast ratio (typical) | 3000000:1 |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 23 - 120 Hz |
| On Screen Display (OSD) | Y |
| Design | |
|---|---|
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Built-in display | N |
| Light source | |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lamp power | 74 W |
| Packaging content | |
|---|---|
| Lamps quantity | 2 lamp(s) |
| Cables included | AC, VGA |
| Manual | Y |
| Lens system | |
|---|---|
| Focus | Manual |
| Focal length range | 14.3 - 22.9 mm |
| Zoom ratio | 2.0:1 |
| Features | |
|---|---|
| Aperture range (F-F) | 1.81 - 2.1 |
| Throw ratio | 1.36-2.18 |
| Supported graphics resolutions | 640 x 480 (VGA),3840 x 2160 |
| Interactive | N |
| Noise level (economic mode) | 29 dB |
| HDCP | Y |
| Placement | Desktop, Ceiling |
| Camera | |
|---|---|
| Zoom capability | Y |
| Video | |
|---|---|
| Analog signal format system | NTSC,PAL,SECAM |
| Performance | |
|---|---|
| Full HD | Y |

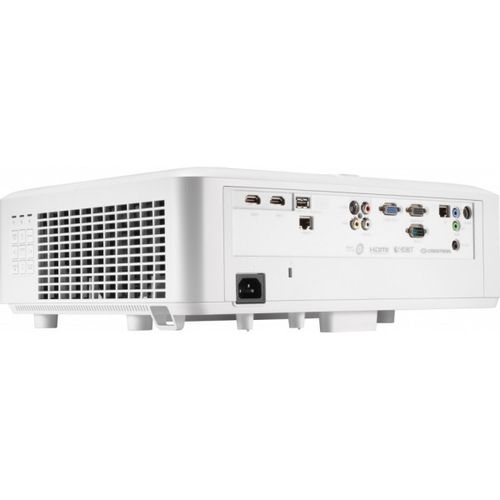

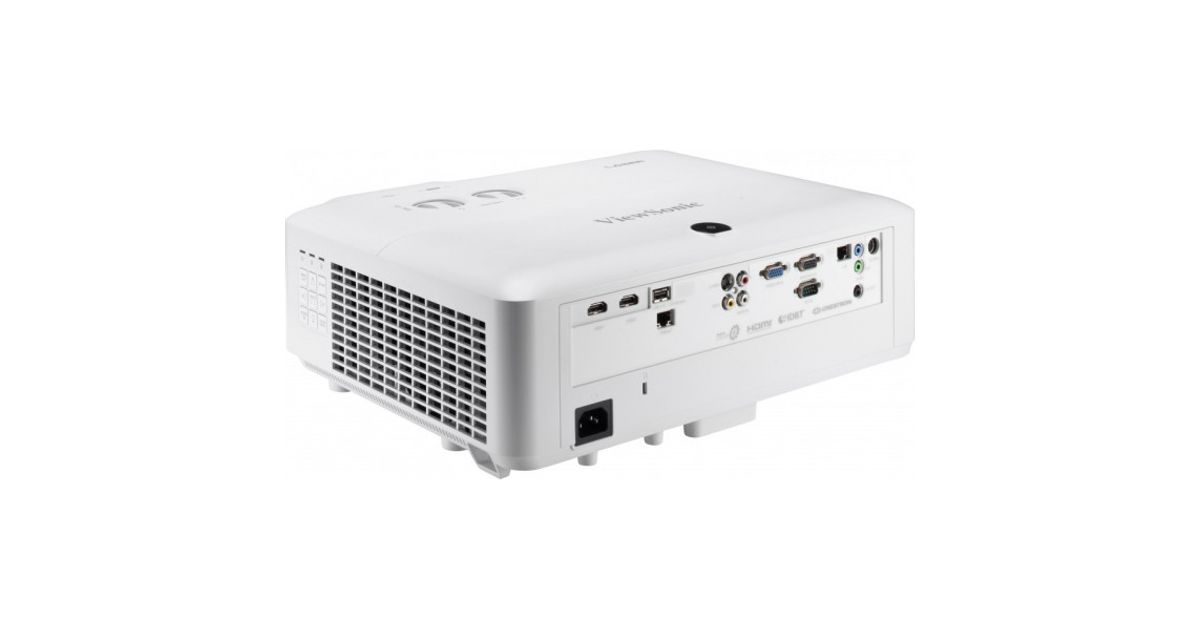

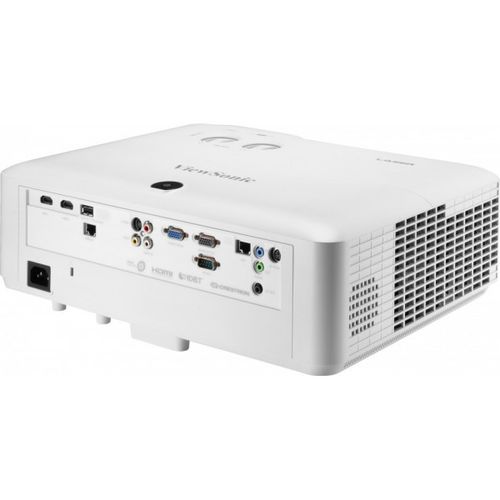

| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| Composite video in | 1 |
| DVI port | N |
| Serial interface type | RS-232 |
| HDMI connector type | Full-size |
| HDMI version | 2.0b |
| S-Video inputs quantity | 1 |
| HDBaseT port | Y |
| PC Audio in | Y |
| PC Audio out | Y |
| AC (power) in | Y |
| Ethernet LAN (RJ-45) ports | 1 |
| Other features | |
|---|---|
| USB 2.0 ports quantity | 1 |
| Noise level | 36 dB |
| Remote control included | Y |
| Inputs | |
|---|---|
| Audio (L/R) in | 1 |
| Network | |
|---|---|
| Smart TV | N |
| Ethernet LAN | Y |
| Wi-Fi | N |
| Storage | |
|---|---|
| Card reader integrated | N |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Indonesian, Italian, Japanese, Korean, Polish, Portuguese, Russian, Swedish, Thai, Turkish, Vietnamese |
| Number of OSD languages | 23 |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Number of built-in speakers | 2 |
| Multimedia | |
|---|---|
| RMS rated power | 20 W |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 450 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100-240 V |
| AC input frequency | 50/60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Storage temperature (T-T) | -20 - 60 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Storage relative humidity (H-H) | 10 - 90% |
| Operating altitude | 0 - 3000 m |
| Weight & dimensions | |
|---|---|
| Weight | 6.5 kg |
| Width | 405 mm |
| Depth | 305 mm |
| Height | 145 mm |
| Package weight | 9 kg |
| Packaging data | |
|---|---|
| Package width | 515 mm |
| Package depth | 490 mm |
| Package height | 276 mm |
Product Description
The LS920WU is an advanced 6,000 ANSI Lumens WUXGA installation projector. Adopting 2nd generation Laser Phosphor technology, the LS920WU offers high and consistent brightness with a lifespan of 20,000 hours and a screen size of up to 300". Wide lens shift, 1.6x optical zoom, 360° projection, and portrait mode combine for incredible flexibility that gives life to captivating creative installations, especially ideal for auditoriums, board rooms, commercial displays, restaurants, and sports bars. Dual HDMI 2.0b / HDCP 2.2 ports ensure access to original 4K quality content with HDR/HLG support. Add to that the compact size and the built-in HDBaseT for the perfect mix of high-quality projection and cost-effectiveness.
High Brightness
Packed with 6,000 ANSI Lumens, it is guaranteed to produce high levels of brightness suitable for large spaces with a lot of ambient light.
2nd Generation Laser Phosphor Technology
Thanks to 2nd generation Laser Phosphor technology, it improves brightness (by 20%), heat-resistance and reduces the product size in addition to excellent color performance, lamp-free design and instant on/off switch.
Reliable Long-Term Performance
Laser technology offers a lifespan of up to 20,000 hours (4 hours per day for more than 13 years) with no degradation in brightness over time so that your installations are consistently vibrant.
Larger Screen Size, Lower Cost-Per-Inch
Flexible installation and effortless transportation of the projector allows for an up-to-300” image size, which is much larger and easier to install than multiple commercial displays combined.
Installation Flexibility

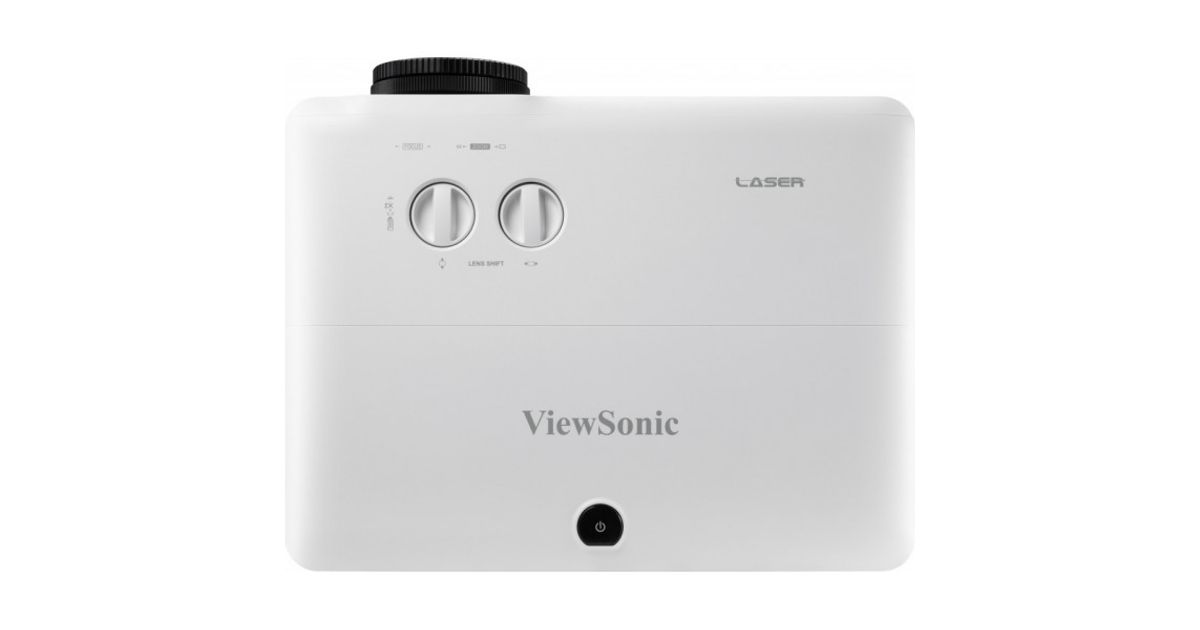

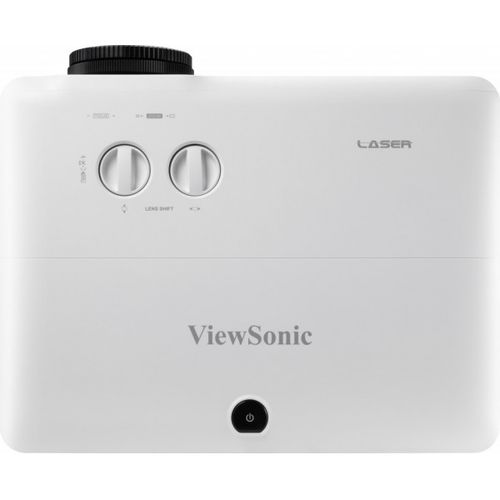

The tool-free, lens shift control knobs make adjusting the projection lens up, down, left, and right easy. It provides flexible installation options with a wide adjustable range (H: +/- 23%, V: +/-50%) and less placement restrictions.
Adaptable to Any Environment
Equipped with a 1.6x optical zoom lens, the projector empowers users to choose the most ideal set-up location within a wider throw distance range that doesn’t interfere with existing interior design while still getting the desired image size.
360° Creative Applications
The projector can freely rotate at any angle vertically to aid with creative applications, allowing projection onto ceilings, walls, or angled signage.
90° Portrait Mode
Portrait mode allows users to turn the projector 90 degrees to increase the vertical field of view and add more applications for projection mapping, staging, and advertising.
Dual HDMI 2.0b Supporting 4K/HDR/HLG
It comes with dual HDMI 2.0b / HDCP 2.2 ports, ensuring your access to original 4K quality content with HDR/HLG supported at a 60Hz frame rate from external devices (e.g. Roku stick, 4K Blu-ray player), producing the brightest whites, deepest blacks, and showing more picture detail.
Lighter Weight & Compact Size
It is almost half the weight and 35% smaller in size when compared with its predecessor, which reduces the cost of transportation and enhances the ease of installation.
Cost-effectively Receive AV Signal over Long Distance
With a built-in HDBT receiver, this projector can receive uncompressed high-resolution video and audio over long distances (100 m for 1080p) via a Cat.5e/6 single network cable and is compatible with any certified HDBaseT transmitter.
Non-stop 24/7 Operation
With an advanced cooling design, it enables 24/7 operation without degradation of quality or performance, making the projector ideal for applications that require continuous projection.
Centralized Control for Management Efficiency
This projector comes equipped with Crestron, AMX, Extron and ViewSonic vController, an easy-to-use network management tool.
A Simpler Way to Update Projector Software
ViewSonic Projector Software Update is available online and enables you to keep your projector firmware up to date easily and conveniently with your laptop and USB cable connection; no need to take your projector into a service center for software updates.
Easy Image Adjustment
Horizontal and Vertical Keystone correction along with 4 corner adjustment features eliminate crooked or distorted images for a perfectly proportioned picture every time.
SuperColor Technology
ViewSonic’s proprietary SuperColor Technology displays a wide color range, ensuring that users enjoy a true-to-life color performance in both bright and dark environments without sacrificing image quality.
Sealed Optical Engine with IP5X
The advanced sealed optical engine prevents dust from entering the projector and affecting the thermal system to ensure that the image quality and long lifespan are maintained.
