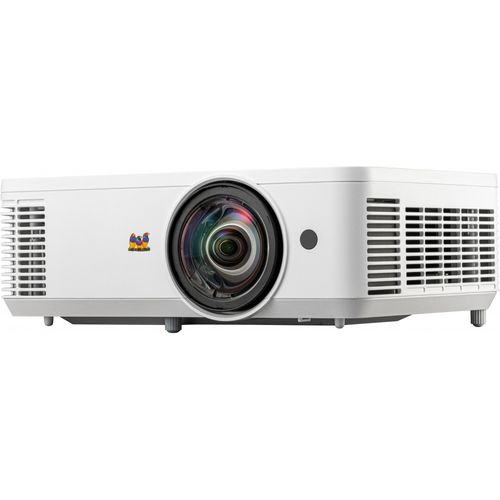

Viewsonic PS502W data projector Standard throw projector 4000 ANSI lumens WXGA (1280x800) White
Viewsonic PS502W, 4000 ANSI lumens, WXGA (1280x800), 15000:1, 1524 - 7620 mm (60 - 300"), 0.67 - 3.36 m, 1.07 billion colours
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Viewsonic |
| Product code | 229495391 |
| EAN | 00766907020038 |
| Manufacturer part number | PS502W |
| Category | Projectors |
| Projector | |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projector native resolution | WXGA (1280x800) |
| Smart projector | N |
| Projection distance | 0.67 - 3.36 m |
| Number of colours | 1.07 billion colours |
| Keystone correction, vertical | -19 - 19° |
| Display | |
|---|---|
| Contrast ratio (typical) | 15000:1 |
| Horizontal scan range | 15 - 102 kHz |
| Vertical scan range | 23 - 120 Hz |
| On Screen Display (OSD) | Y |
| Design | |
|---|---|
| Screen size compatibility | 1524 - 7620 mm (60 - 300") |
| Product type | Standard throw projector |
| Market positioning | Education |
| Product colour | White |
| LED indicators | Y |
| Cable lock slot type | Kensington |
| Built-in display | N |
| Light source | |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 12000 h |
| Lamp power | 240 W |
| Lighting | |
|---|---|
| Lamp type | UHP |
| Packaging content | |
|---|---|
| Lamps quantity | 1 lamp(s) |
| Cables included | AC, VGA |
| Warranty card | Y |
| Lens system | |
|---|---|
| Focus | Manual |
| Fixed focal length | 7.51 mm |
| Fixed aperture | 2.8 |
| Offset | 112.4% |
| Camera | |
|---|---|
| Zoom capability | Y |
| Digital zoom | 2x |
| Features | |
|---|---|
| Throw ratio | 0.52 |
| Supported graphics resolutions | 640 x 480 (VGA), 1920 x 1080 (HD 1080) |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| Interactive | N |
| Noise level (economic mode) | 25 dB |
| HDCP | Y |
| HDCP version | 1.4 |
| Remote control type | IR |
| Video | |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Performance | |
|---|---|
| Full HD | Y |
| Cable lock slot | Y |
| Other features | |
|---|---|
| 3D | N |
| USB 2.0 ports quantity | 1 |
| Noise level | 34 dB |
| Air filter | Y |
| Remote control included | Y |
| Quick start guide | Y |
| Ports & interfaces | |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| DVI port | N |
| Serial interface type | RS-232 |
| HDMI connector type | Full-size |
| HDMI version | 1.4 |
| Service port type | USB Type-A |
| USB 2.0 Type-A ports quantity | 1 |
| PC Audio in | Y |
| PC Audio out | Y |
| PC in (D-Sub) | Y |
| AC (power) in | Y |
| Network | |
|---|---|
| Smart TV | N |
| Ethernet LAN | N |
| Wi-Fi | N |
| Storage | |
|---|---|
| Card reader integrated | N |
| Ergonomics | |
|---|---|
| On Screen Display (OSD) languages | Arabic, Simplified Chinese, Traditional Chinese, Czech, German, Dutch, English, Spanish, Finnish, French, Greek, Hungarian, Indonesian, Italian, Korean, Polish, Portuguese, Russian, Thai, Turkish, Vietnamese |
| Number of OSD languages | 22 |
| Audio | |
|---|---|
| Built-in speaker(s) | Y |
| Multimedia | |
|---|---|
| RMS rated power | 16 W |
| Power | |
|---|---|
| Power source | AC |
| Power consumption (typical) | 295 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 - 60 Hz |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Weight & dimensions | |
|---|---|
| Weight | 2.87 kg |
| Width | 309 mm |
| Depth | 234 mm |
| Height | 115 mm |
| Package weight | 4.08 kg |
| Packaging data | |
|---|---|
| Package width | 400 mm |
| Package depth | 337 mm |
| Package height | 168 mm |
| Other information | |
|---|---|
| Image lag time | 33.2 ms |
Product Description
The PS502W is ViewSonic’s high brightness WXGA short throw business/education projector. Boasting 4,000 ANSI Lumens of high brightness, the projector offers clear images of up-to-300” large screen in meeting rooms, classrooms, or any other bright environment. With 0.52 short throw ratio, the projector can provide 100” large screen size from only 1.1 m away without being obstructed by shadows, allowing for a large screen even in small spaces. The dual HDMI ports allow you to flexibly connect to multiple devices, easily switching between content sources. The USB Type-A port can supply power to HDMI wireless dongles, making wireless content streaming more convenient. The projector also allows software updates via USB cable connection with simply your laptops, skipping trips to service centers.
High Brightness for Business & Education Environments
Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
Big Screen for Small Spaces
The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.
Ultra-Large Screen with Lower Cost-per-inch
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.
Vibrant Colors for Captivating Presentations
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.
*The latest projector software update can be found in the download section at the bottom of the page when available.
USB Type A Power Supply
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.
Audio Right Out of the Box
The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.
High Brightness for Business & Education Environments
Thanks to 4,000 ANSI Lumens brightness, you're guaranteed clear visuals of vibrancy, which are perfectly suitable for spaces with a lot of ambient light.
Big Screen for Small Spaces
The PS502W’s 0.52 short throw projection gives you 100” from only 1.3m away when positioning the projector. Presenters will stay clear of the projector beam, eliminating eye glare and shadows on the projection screen.
Ultra-Large Screen with Lower Cost-per-inch
The projector allows for an up-to-300” image size, which is much larger and easier to install than commercial displays.
Easy and Flexible Connection
The dual HDMI ports offer ample connectivity to accommodate all your HDMI-enabled multimedia devices. You no longer have to unplug your existing device to switch to a new one. Simply use the on-screen display to select and change the input source.
Vibrant Colors for Captivating Presentations
Impress any audience with ViewSonic’s exclusive color technology and elevate your presentation with a true-to-life color experience.
A Simpler Way to Update Projector Software
Skip trips to the service center by keeping software up to date easily and onsite via USB cable connection with your laptop.
*The latest projector software update can be found in the download section at the bottom of the page when available.
USB Type A Power Supply
A built-in 5V/1.5A USB power output can be used to supply power to HDMI wireless dongles, eliminating the need for separate power adapters when streaming your multimedia content.
Audio Right Out of the Box
The projector comes equipped with a 16W speaker, allowing for audio to be delivered during presentations without the need for external speakers.
