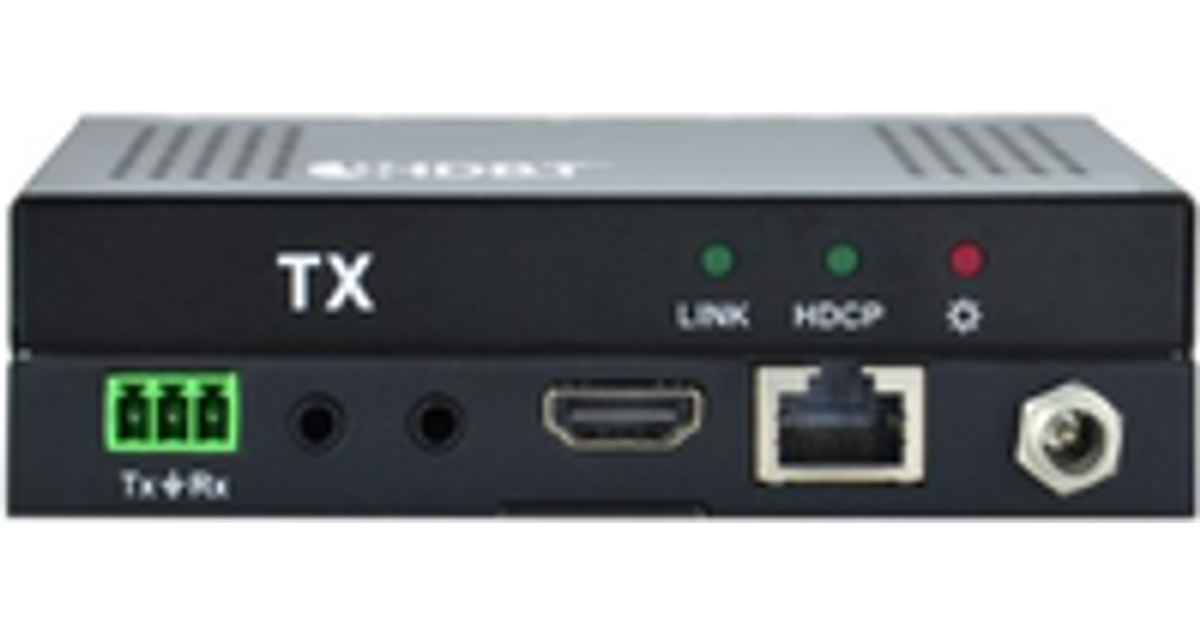

Vivolink VL120016T AV extender AV transmitter Black
Vivolink VL120016T, AV transmitter, 70 m, 3D, Black, HDCP
Read more...
Read more...
Product Information
| Information | |
|---|---|
| Manufacturer | Vivolink |
| Product code | 16507449 |
| EAN | 05715063013441 |
| Manufacturer part number | TP-580T |
| Category | Audio/video/HDMI switches and splitters |
| Features | |
|---|---|
| Type | AV transmitter |
| IR pass-through | Y |
| Supported video modes | 1080p |
| Bandwidth | 10.2 Gbit/s |
| Remote control type | IR |
| HDCP | Y |
| Consumer Electronics Control (CEC) support | Y |
| HDCP version | 2.2 |
| Network | |
|---|---|
| Cable types supported | Cat5e,Cat6 |
| Performance | |
|---|---|
| Maximum transfer distance | 70 m |
| Design | |
|---|---|
| LED indicators | Y |
| Product colour | Black |
| Other features | |
|---|---|
| 3D | Y |
| Ports & interfaces | |
|---|---|
| RJ-45 output ports | 1 |
| HDMI in | 1 |
| HDMI version | 1.4 |
| Serial interface type | RS-232 |
| 3.5 mm (1/8-inch) in | Y |
| 3.5 mm (1/8-inch) out | Y |
| Remote (IR) input | 1 |
| Remote (IR) output | 1 |
| DC-in jack | Y |
| Rear panel I/O ports | |
|---|---|
| Serial ports quantity | 2 |
| Power | |
|---|---|
| AC input voltage | 100 - 240 V |
| AC input frequency | 50 / 60 Hz |
| Operating voltage | 24 V |
| Output current | 1.25 A |
| Operational conditions | |
|---|---|
| Operating temperature (T-T) | 0 - 50 °C |
| Operating relative humidity (H-H) | 10 - 90% |
| Weight & dimensions | |
|---|---|
| Width | 115 mm |
| Depth | 84 mm |
| Height | 16.2 mm |
| Weight | 150 g |
| Packaging content | |
|---|---|
| AC adapter included | Y |
Product Description
VL120016 is a mini-size HDBaseT Extender set that consists of transmitter (VL120016T) and receiver (VL120016R), supporting 1080P/ 4K signal transmission up to 131ft (40m), 1080P signal up to 230ft (70m) over single CAT5e/6 cable. VL120016 supports CEC, bidirectional RS232 & IR control, and uni-directional PoH function.
