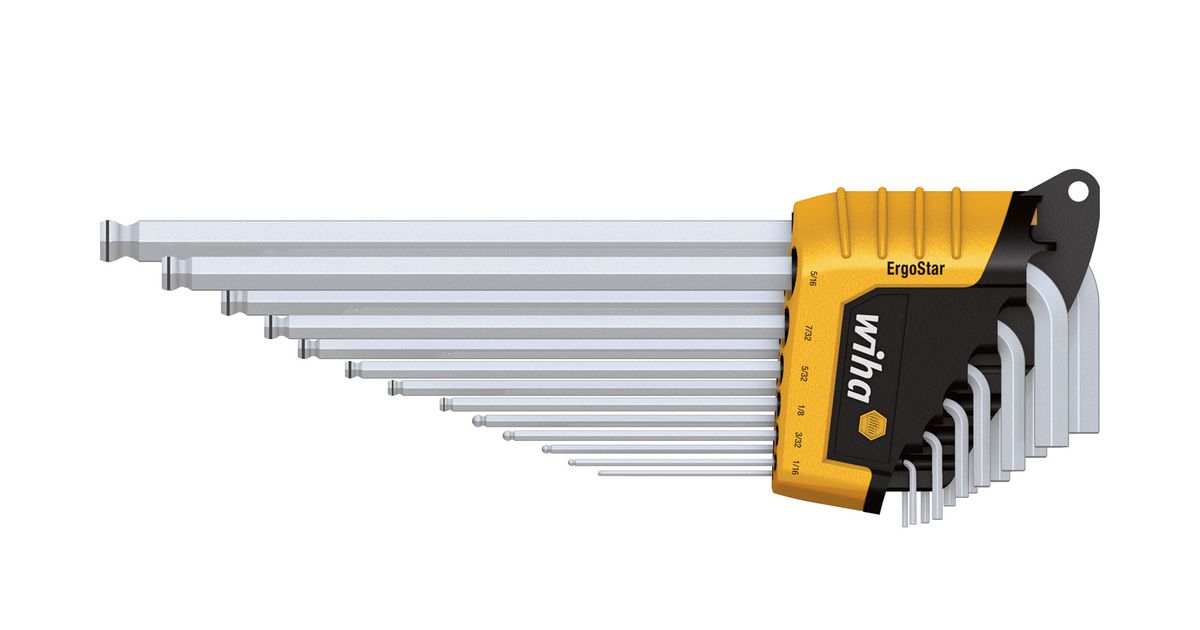

Wiha 36521 L-shaped hex key Imperial 13 pc(s)
Wiha 36521, L-shaped hex key, Imperial, 13 pc(s), Chromating, 1/4,1/8,1/16,3/32,3/16,3/8,5/16,5/32,5/64,7/32,7/64,9/64", Chrome
Read more...
Read more...
Product Information
Product Description
Makes handling easier
Always the correct key when you need it.
Blade
Chrome-vanadium steel, through hardened, chrome-plated.
Standards
Based on ASME B18.3.
Application
Insert hex inch screws into and remove from boreholes, especially in difficult to access areas.
Extra
Mechanical operation of the space-saving ErgoStar holder makes simplest removal of each individual L-key possible without movement of the others.
MagicRing® made from spring steel holds all standard screws tight at various angles (available from 1/8").
The ball end enables the user to work at angles up to 25°.
- 1x L-keys (29471), Internal hexagon: 0.05, Length L-key: 72 mm
- 1x L-keys (29472), Internal hexagon: 1/16, Length L-key: 80 mm
- 1x L-keys (29474), Internal hexagon: 5/64, Length L-key: 88 mm
- 1x L-keys (29473), Internal hexagon: 3/32, Length L-key: 101 mm
- 1x L-keys (29475), Internal hexagon: 7/64, Length L-key: 111 mm
- 1x L-keys (24302), Internal hexagon: 1/8, Length L-key: 121 mm
- 1x L-keys (24304), Internal hexagon: 9/64, Length L-key: 136 mm
- 1x L-keys (24303), Internal hexagon: 5/32, Length L-key: 148 mm
- 1x L-keys (24305), Internal hexagon: 3/16, Length L-key: 163 mm
- 1x L-keys (24306), Internal hexagon: 7/32, Length L-key: 176 mm
- 1x L-keys (24307), Internal hexagon: 1/4, Length L-key: 191 mm
- 1x L-keys (24308), Internal hexagon: 5/16, Length L-key: 210 mm
- 1x L-keys (24341), Internal hexagon: 3/8, Length L-key: 232 mm
